991311 - Ariens Apex 48" Zero-Turn Mower, Kawasaki FR (SN: 015000 - 019999) Engine Guard And Fenders Parts Diagram

Apex 48" Zero-Turn Mower, Kawasaki FR

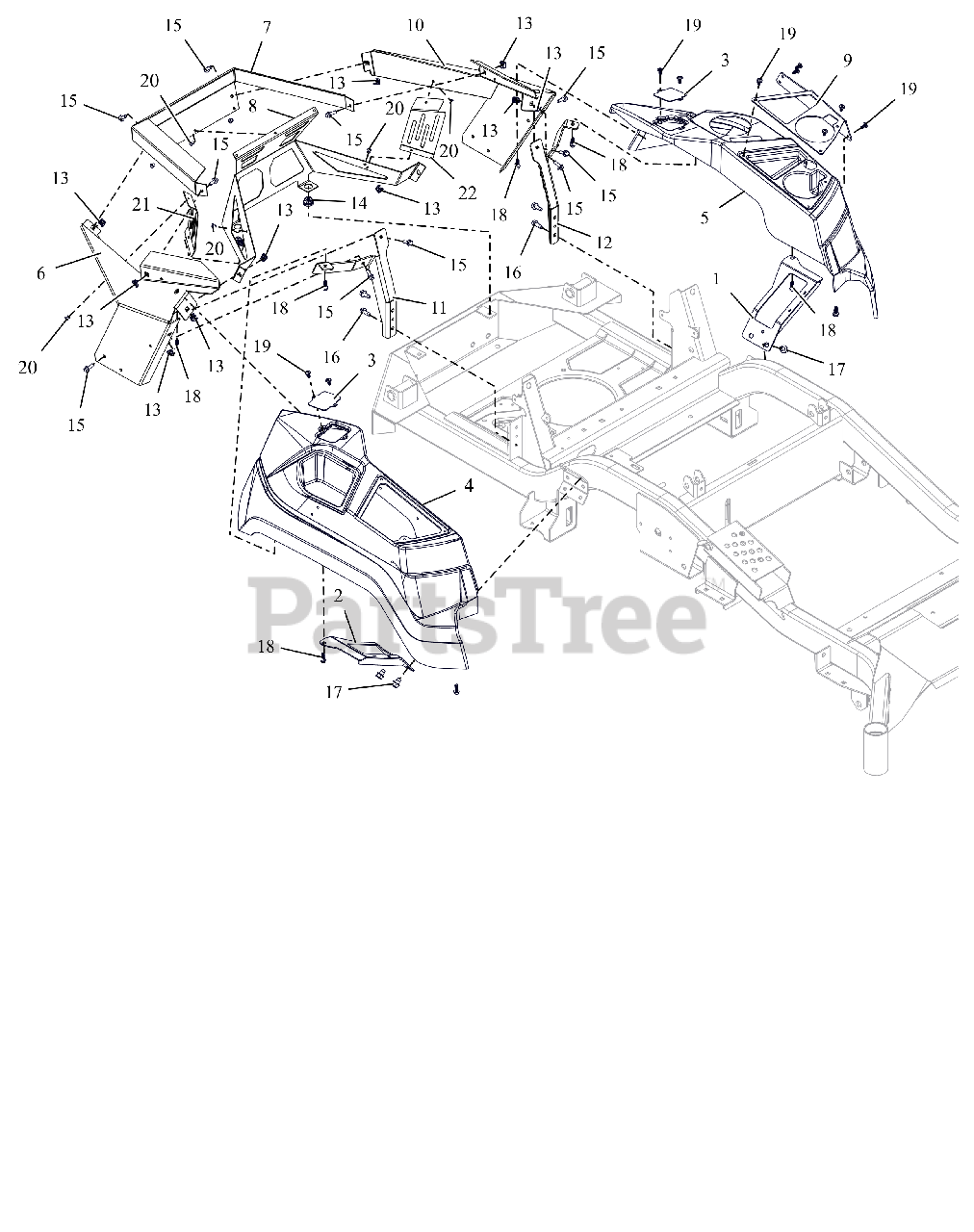

Engine Guard And Fenders Parts Diagram

  • Title

1

Ariens 05095151

WLDMT, LH FENDER MOUNT

$20.99

$

Usually ships in 4-12 days

0

2

Ariens 05105151

WLDMT, RH FENDER MOUNT

$23.99

$

Usually ships in 4-12 days

0

3

Ariens 05078051

PLATE, ROPS HOLE-HD

$21.99

$

Usually ships in 4-12 days

0

4

Ariens 05100400

FENDER, RH APEX - 2017

$59.99

$

Usually ships in 4-12 days

0

5

Ariens 59113800

FENDER, LH APEX

$79.99

$

Usually ships in 4-12 days

0

6

Ariens 05103359

PANEL,RIGHT REAR FENDER MOUNT

$75.99

$

Usually ships in 4-12 days

0

7

Ariens 05103559

GUARD,ENGINE WRAP

$35.99

$

Usually ships in 4-12 days

0

8

Ariens 05103651

GUARD,ENGINE

$112.99

$

Usually ships in 4-12 days

0

9

Ariens 05108859

PLATE, APEX CUP HOLDER COVER

$25.99

$

Usually ships in 4-12 days

0

10

Ariens 05119359

PANEL,LEFT REAR FENDER MOUNT

$45.99

$

Usually ships in 4-12 days

0

11

Ariens 05122359

BRKT, RH FENDER MTG. APEX

$65.99

$

Usually ships in 4-12 days

0

12

Ariens 05122459

BRKT, LH FENDER MTG -APEX

$46.99

$

Usually ships in 4-12 days

0

13

Ariens 07009300

NUT RETNR .25-20

$

$

Not available

14

Ariens 07500407

GROMMET, 10MM BOLLHOFF

$6.49

$

In Stock, Qty 20+

0

15

Ariens 05901731

BLT,HEX-FLG .25-20X.75 G5 BFP

$1.99

$

Usually ships in 4-12 days

0

16

Ariens 07400127

SCR,TAP .312-18X.75 HWH TR ZCC

$1.99

$

In Stock, only 2 left!

0

17

Ariens 07400126

SCR,TAP .375-16X.50 HWH TR ZCC

$1.99

$

In Stock, Qty 19

0

18

Ariens 06100231

SCR, PLASTITE .25-10X.75 ZCC

$1.99

$

In Stock, Qty 6

0

19

Ariens 07400123

SCR-PAN .25-15X.50 6L H/LZB500

$2.99

$

In Stock, only 3 left!

0

20

Ariens 06800120

RIVET, .1875 AL/AL .126-.250

$1.99

$

Usually ships in 4-12 days

0

21

Ariens 05140551

SHIELD,RH ENGINE GUARD VALVE

$

$

Not available

22

Ariens 05140651

SHIELD,LH ENGINE GUARD VALVE

$

$

Not available
