991311 - Ariens Apex 48" Zero-Turn Mower, Kawasaki FR (SN: 040000 - 099999) Anti-Scalp Wheels and Baffles - 48" Parts Diagram

Apex 48" Zero-Turn Mower, Kawasaki FR

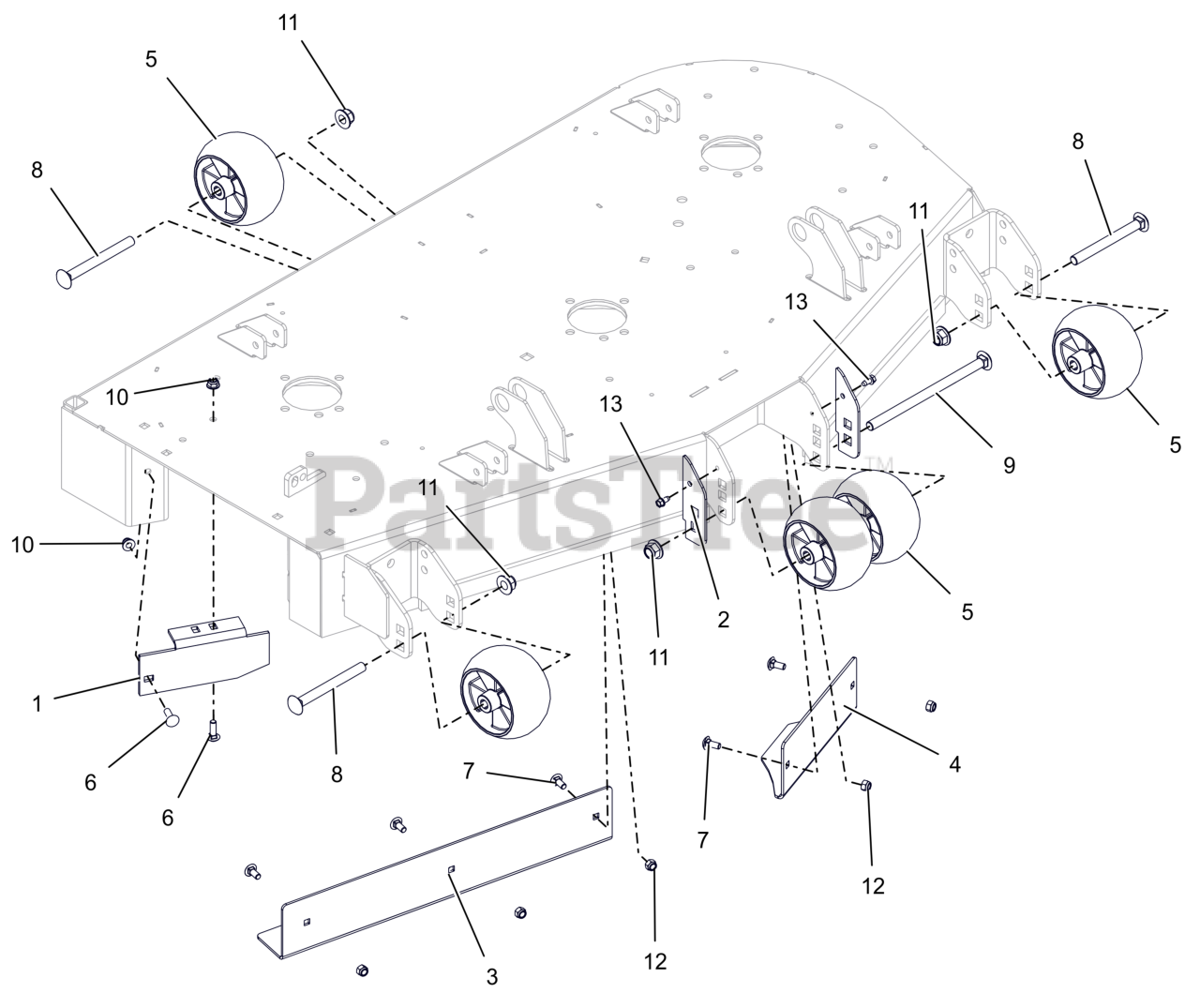

Anti-Scalp Wheels and Baffles - 48" Parts Diagram

  • Title

1

Ariens 00451659

BAFFLE, 44/48" SIDE DISCHARGE

$42.99

$

Usually ships in 4-12 days

0

2

Ariens 05147359

PLATE, ANTI SCALP WHEEL EXT.CE

$

$

Not available

3

Ariens 05251559

BAFFLE, 48" RH VACUUM (ORANGE)

$

$

Not available

4

Ariens 05251659

BAFFLE, 44/48" LH VACUUM (ORANGE)

$25.99

$

Usually ships in 4-12 days

0

5

Ariens 05268800

WHEEL, ANTI SCALP - 5X3 CTR W/RIBS

$12.99

$

In Stock, Qty 20+

0

6

Ariens 06200231

BLT,RHSN .31-18X1.00 G5 ZCC

$1.99

$

In Stock, Qty 20+

0

7

Ariens 06200232

BLT,RHSN .31-18X.75 G5 ZCC

$2.99

$

In Stock, Qty 20+

0

8

Ariens 06200318

BLT, RHSN .50-13X5.00 G5 ZCC
(Superseded to 06200505)

$

$

Not available

9

Ariens 06200436

BTL,RHSN .500-13 X 8.5S G5 ZCC
(Superseded to 06200506)

$

$

Not available

10

Ariens 06500809

NUT,LK-NYL-FLG .31-18 G5ZC120

$1.99

$

In Stock, Qty 20+

0

11

Ariens 06500810

NUT,NYL-FLG .50-13 GF ZCC

$1.99

$

In Stock, Qty 20+

0

12

Ariens 06500820

NUT,NYL .31-18 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

13

Ariens 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0
