991311 - Ariens Apex 48" Zero-Turn Mower, Kawasaki FR (SN: A0371200 & Above) Engine Guard And Fenders Parts Diagram

Apex 48" Zero-Turn Mower, Kawasaki FR

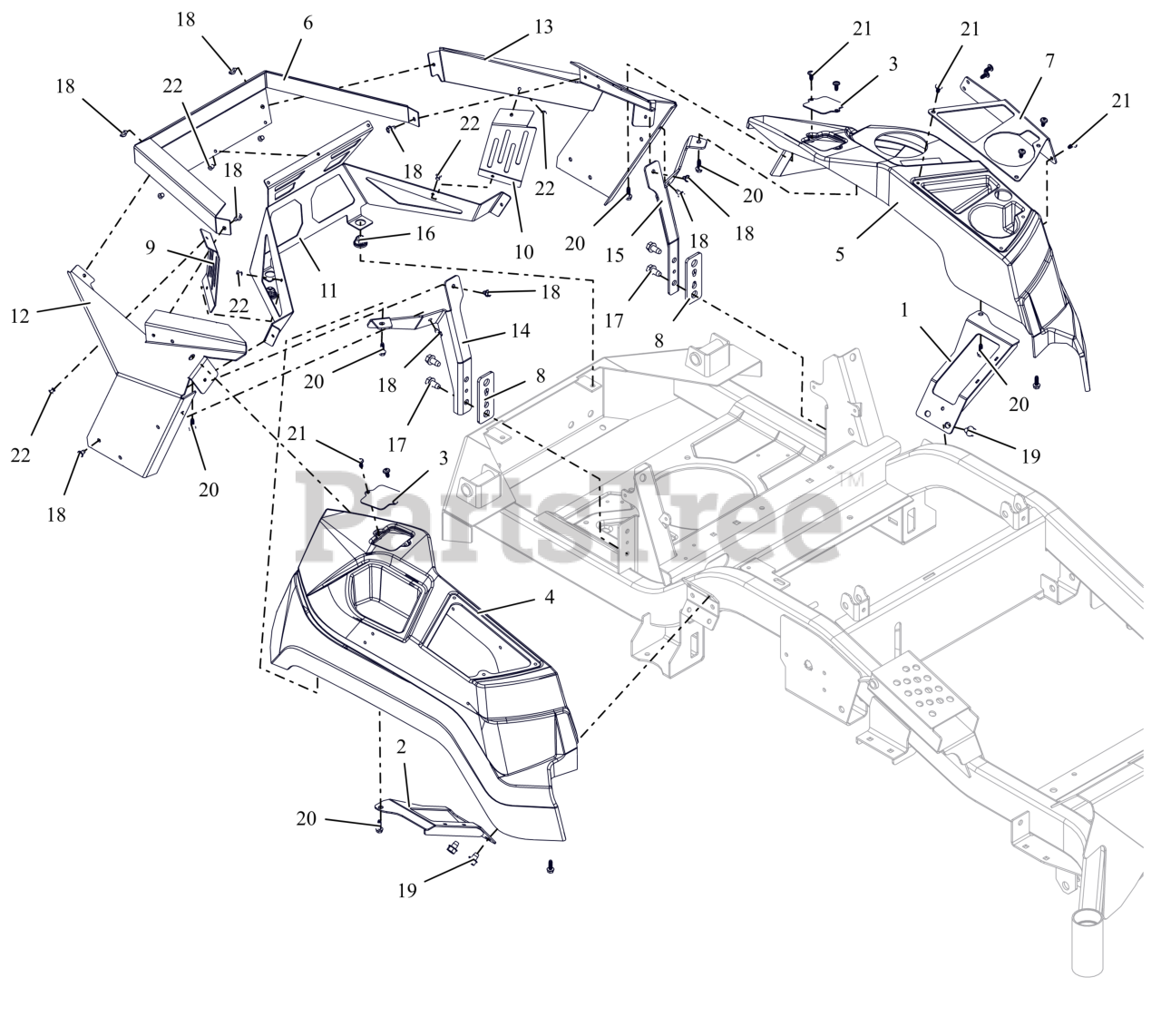

Engine Guard And Fenders Parts Diagram

  • Title

1

Ariens 05095151

WLDMT, LH FENDER MOUNT

$20.99

$

Usually ships in 4-12 days

0

2

Ariens 05105151

WLDMT, RH FENDER MOUNT

$23.99

$

Usually ships in 4-12 days

0

3

Ariens 05078051

PLATE, ROPS HOLE-HD

$21.99

$

Usually ships in 4-12 days

0

4

Ariens 05100400

FENDER, RH APEX - 2017

$59.99

$

Usually ships in 4-12 days

0

5

Ariens 59113800

FENDER, LH APEX

$79.99

$

Usually ships in 4-12 days

0

6

Ariens 05103559

GUARD,ENGINE WRAP

$35.99

$

Usually ships in 4-12 days

0

7

Ariens 05108859

PLATE, APEX CUP HOLDER COVER

$25.99

$

Usually ships in 4-12 days

0

8

Ariens 05117459

PLATE, CONTROL PANEL SPACER

$3.99

$

Usually ships in 4-12 days

0

9

Ariens 05140551

SHIELD,RH ENGINE GUARD VALVE

$

$

Not available

10

Ariens 05140651

SHIELD,LH ENGINE GUARD VALVE

$

$

Not available

11

Ariens 05196751

GUARD, ENGINE

$30.99

$

Usually ships in 4-12 days

0

12

Ariens 05196859

PANEL, RH REAR FENDER MOUNT

$48.99

$

Usually ships in 4-12 days

0

13

Ariens 05196959

PANEL, LH REAR FENDER MOUNT

$52.99

$

Usually ships in 4-12 days

0

14

Ariens 05244459

BRKT, RH FENDER MTG (ORANGE)

$55.99

$

Usually ships in 4-12 days

0

15

Ariens 05244559

BRKT, LH FENDER MOUNT (ORANGE)

$48.99

$

Usually ships in 4-12 days

0

16

Ariens 07500407

GROMMET, 10MM BOLLHOFF

$6.49

$

In Stock, Qty 20+

0

17

Ariens 07400129

SCR,TAP .375-16X.75 HWH TR ZCC

$1.99

$

In Stock, Qty 20+

0

18

Ariens 07400125

SCR,TAP .25-20X.375 HWH TR ZCC

$1.49

$

In Stock, Qty 8

0

19

Ariens 07400126

SCR,TAP .375-16X.50 HWH TR ZCC

$1.99

$

In Stock, Qty 19

0

20

Ariens 06100231

SCR, PLASTITE .25-10X.75 ZCC

$1.99

$

In Stock, Qty 6

0

21

Ariens 07400123

SCR-PAN .25-15X.50 6L H/LZB500

$2.99

$

In Stock, only 3 left!

0

22

Ariens 06800120

RIVET, .1875 AL/AL .126-.250

$1.99

$

Usually ships in 4-12 days

0
