991314 - Ariens Zenith 60" Zero-Turn Mower, Kawasaki FX (SN: 030000 - 034999) Clutch Parts Diagram
Zenith 60" Zero-Turn Mower, Kawasaki FX

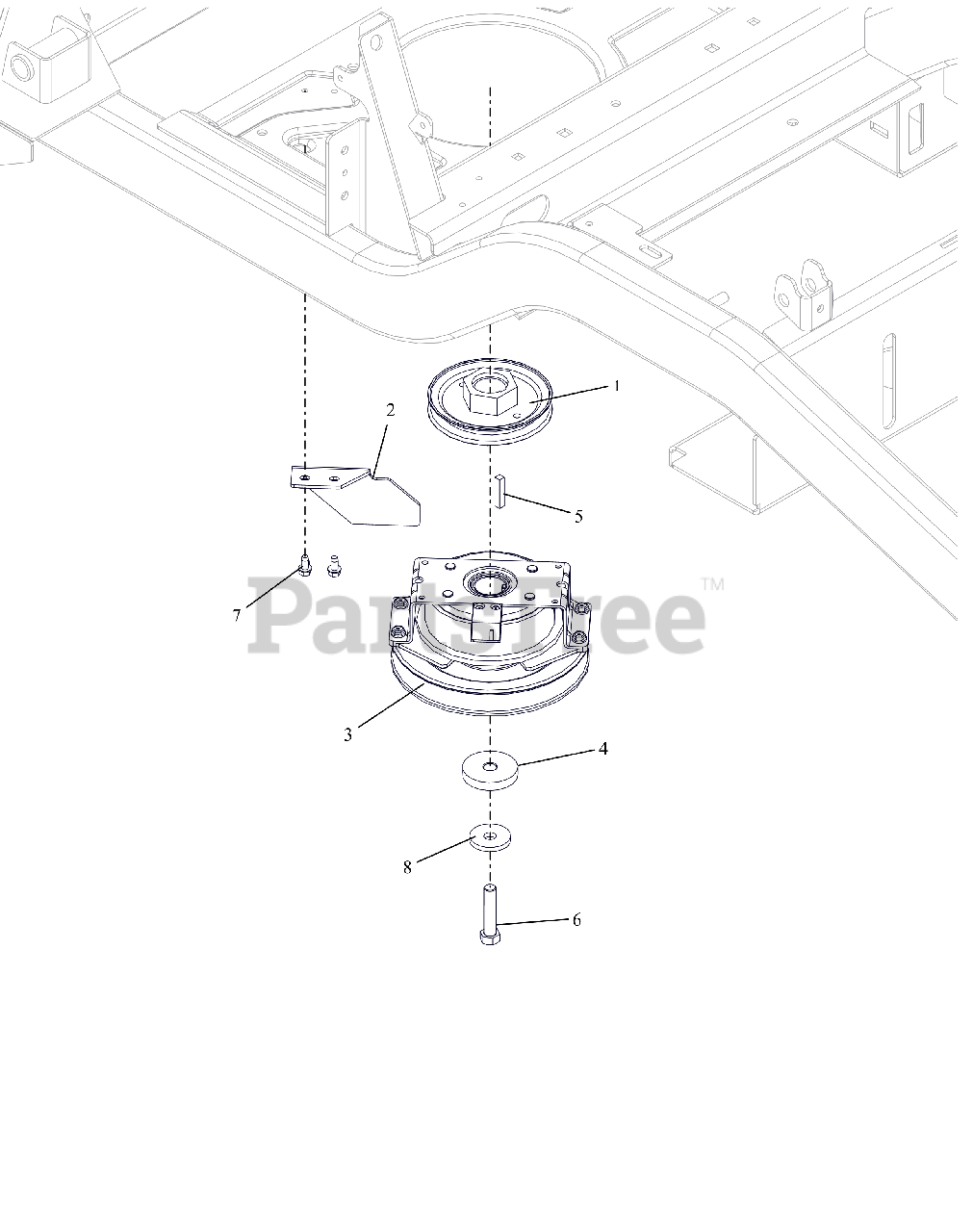

Clutch Parts Diagram
Ariens 07348700
WLDMT,PULLEY-4.50ODX1.127
$89.99
$
Usually ships in 4-12 days
Ariens 05016151
BRKT, CLUTCH STOP HD
$15.99
$
In Stock, Qty 9
$289.99
$
In Stock, Qty 15
Ariens 05501240
SPACER, .474/.459X2.00X.350
$15.99
$
In Stock, Qty 5
Ariens 06603400
KEY-SQ .25 X 1.25 X .25 SAE
$4.99
$
In Stock, Qty 11
Ariens 05901916
BLT, HEX .44-20X2.00 G8 ZCC NT
$4.99
$
In Stock, Qty 6
Ariens 07400122
SCR-TAP .25-20X.50 HWH ZCC
$1.49
$
In Stock, Qty 20+
Ariens 06400936
WASHER, 7/16" SPRING DISK
$12.99
$
In Stock, Qty 5
