991314 - Ariens Zenith 60" Zero-Turn Mower, Kawasaki FX (SN: 030000 - 034999) Transaxle Drive Parts Diagram

Zenith 60" Zero-Turn Mower, Kawasaki FX

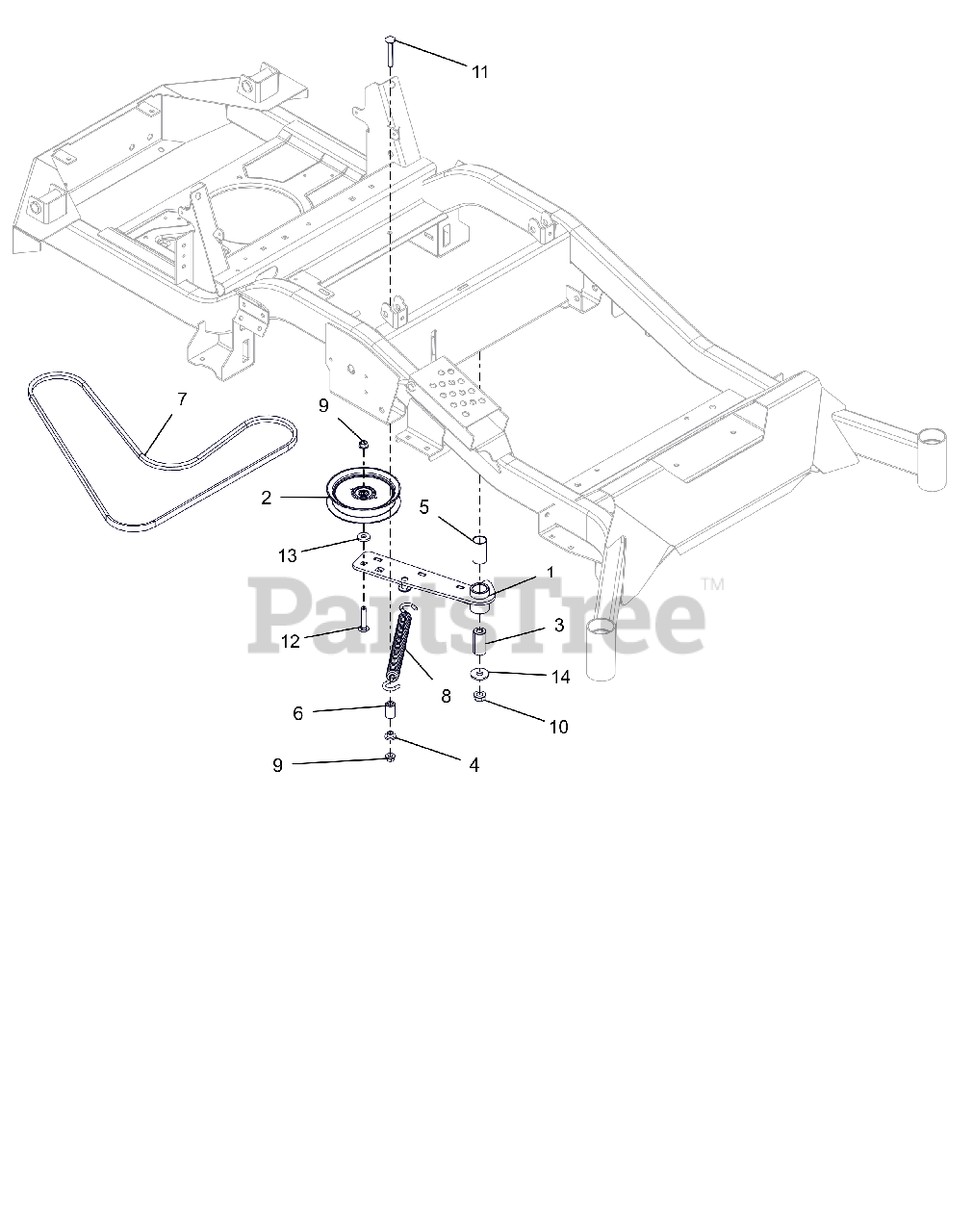

Transaxle Drive Parts Diagram

  • Title

1

Ariens 05007951

WLDMT, HYDRO DRIVE IDLER ARM

$59.99

$

Usually ships in 4-12 days

0

2

Ariens 07345600

IDLER, FLAT 5.00"
(Superseded to 07351200)

$44.99

$

In Stock, Qty 20+

0

3

Ariens 01581700

BSHG, SPCR .502X.997X2.03 PM

$7.49

$

In Stock, Qty 20+

0

4

Ariens 05500435

BSHG-FLG .385X.500X.875X.406

$2.99

$

In Stock, Qty 20+

0

5

Ariens 05501234

BSHG, 1.00X1.125X1.937

$11.99

$

In Stock, Qty 20+

0

6

Ariens 05501308

BUSHING, SLV .380X.750X1.190

$5.99

$

In Stock, Qty 20+

0

7

Ariens 07225600

V-BELT, 4L-WRAPPED

$

$

Not available

8

Ariens 08300711

SPRING, EXTENSION

$

$

Not available

9

Ariens 06500822

NUT-LK-TOP-FLG .38-16 ZC120

$1.99

$

In Stock, Qty 20+

0

10

Ariens 06500907

NUT-LK-TOP-FLG .500-13 GF ZCC

$2.49

$

In Stock, Qty 20+

0

11

Ariens 06200315

BLT, RHSSN.38-16X2.50 G5 ZCC

$4.99

$

In Stock, Qty 12

0

12

Ariens 06200314

BLT, RHSN .38-16X2.00 G5 ZCC

$4.99

$

In Stock, Qty 8

0

13

Ariens 06401108

WSHR, FLT .406X1.00X.188 ZCC

$3.99

$

In Stock, Qty 20+

0

14

Ariens 06401022

WSHR-FL-STL.511X1.44X.125ZC120

$3.99

$

In Stock, Qty 20+

0
