991314 - Ariens Zenith 60" Zero-Turn Mower, Kawasaki FX (SN: 035000 - 039999) Anti-Scalp Wheels And Baffles Parts Diagram

Zenith 60" Zero-Turn Mower, Kawasaki FX

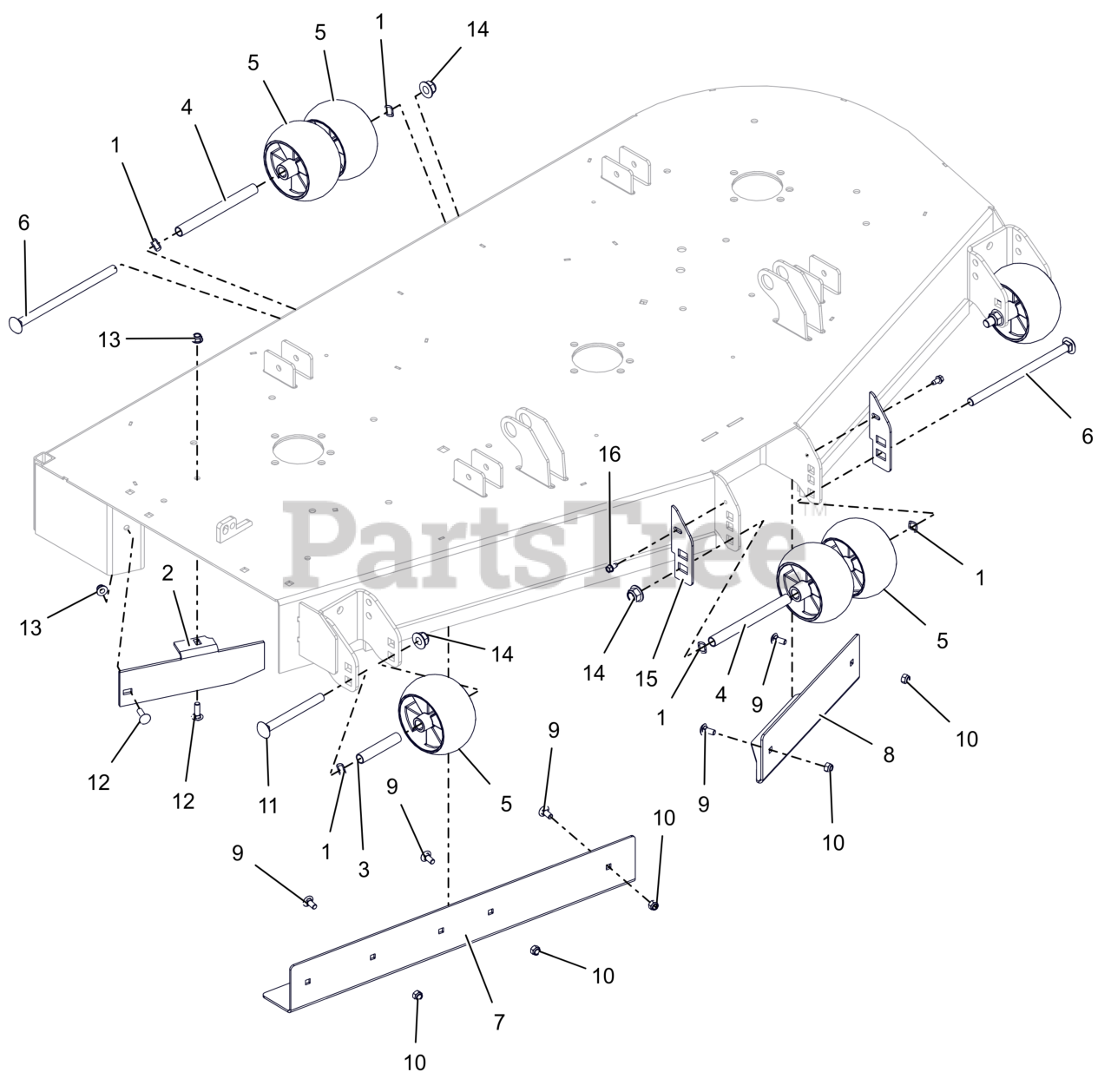

Anti-Scalp Wheels And Baffles Parts Diagram

  • Title

1

Ariens 00325400

WAVE WASHER .531X.781X.125FH

$1.49

$

In Stock, Qty 20+

0

2

Ariens 00374159

BAFFLE, 60" DISCHARGE

$35.99

$

Usually ships in 4-12 days

0

3

Ariens 00473700

SPACER, .510X.625X3.35

$19.99

$

In Stock, Qty 20+

0

4

Ariens 00473800

SPACER, .510X.625X6.50

$22.99

$

In Stock, Qty 20+

0

5

Ariens 03905900

ANTI-SCALP WHEEL - 5X3 CTR

$13.99

$

In Stock, Qty 20+

0

6

Ariens 06200321

BLT, RHSN .50-13X8.50 G5 ZCC

$7.99

$

In Stock, Qty 20+

0

7

Ariens 05251959

BAFFLE, 60" RH VACUUM (ORANGE)

$46.99

$

Usually ships in 4-12 days

0

8

Ariens 05252059

BAFFLE, 60" LH VACUUM (ORANGE)

$29.99

$

Usually ships in 4-12 days

0

9

Ariens 06200232

BLT,RHSN .31-18X.75 G5 ZCC

$2.99

$

In Stock, Qty 20+

0

10

Ariens 06500820

NUT,NYL .31-18 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

11

Ariens 06200318

BLT, RHSN .50-13X5.00 G5 ZCC
(Superseded to 06200505)

$

$

Not available

12

Ariens 06200231

BLT,RHSN .31-18X1.00 G5 ZCC

$1.99

$

In Stock, Qty 20+

0

13

Ariens 06500809

NUT,LK-NYL-FLG .31-18 G5ZC120

$1.99

$

In Stock, Qty 20+

0

14

Ariens 06500810

NUT,NYL-FLG .50-13 GF ZCC

$1.99

$

In Stock, Qty 20+

0

15

Ariens 05248559

PLATE, ANTI SCALP WHEEL 60" (ORANGE)

$7.49

$

Usually ships in 4-12 days

0

16

Ariens 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0
