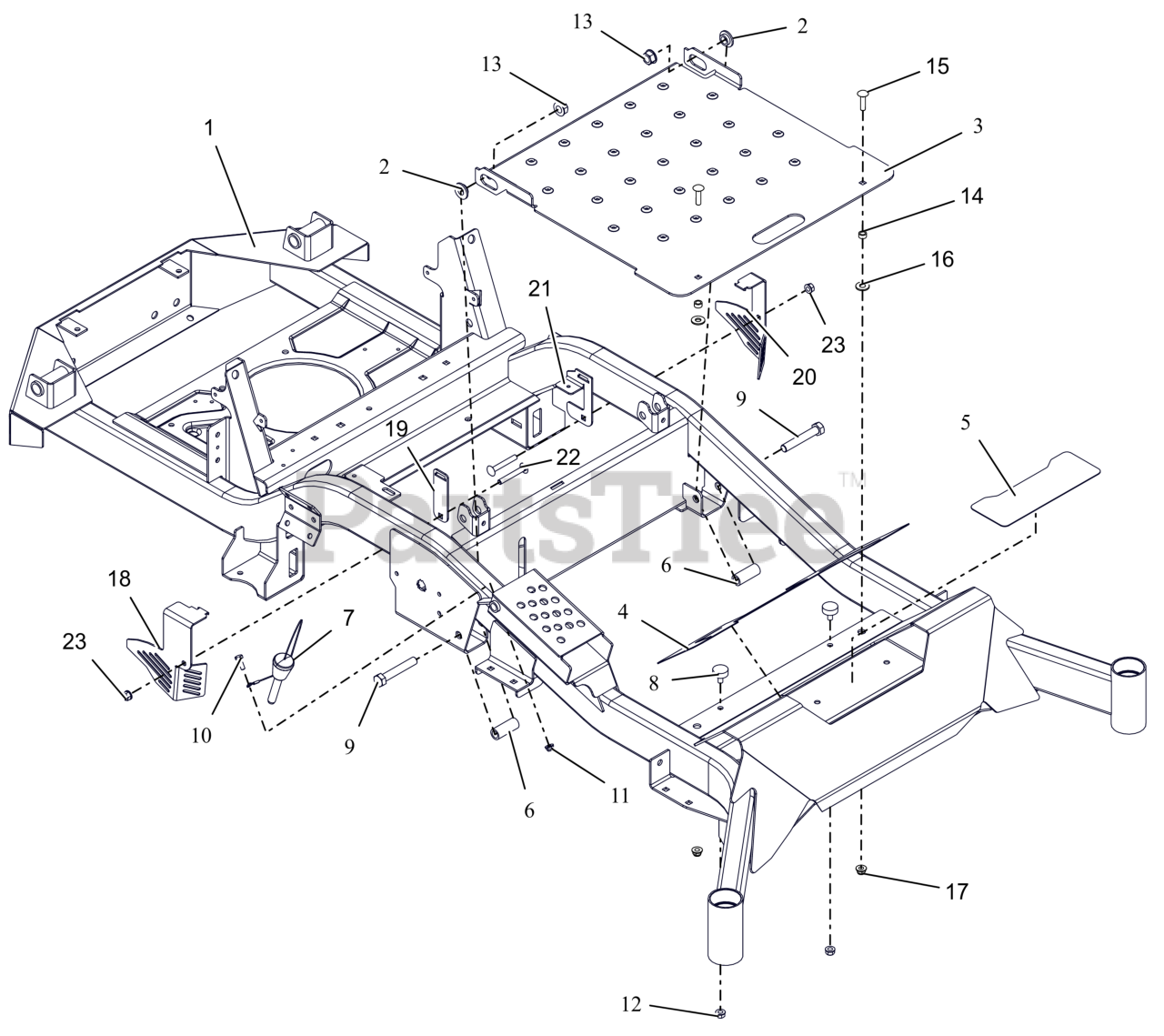

991314 - Ariens Zenith 60" Zero-Turn Mower, Kawasaki FX (SN: 040000 & Above) Frame Parts Diagram

Zenith 60" Zero-Turn Mower, Kawasaki FX

Frame Parts Diagram

  • Title

1

Ariens 59111300

APEX 60"FRAME W/SAFTETY DECALS
(Superseded to 59117600)

$1055.99

$

Usually ships in 4-12 days

0

2

Ariens 03989100

BSHG-FLG .515X.750X.395X1.120

$3.99

$

In Stock, Qty 19

0

3

Ariens 59113600

PANEL, ACCESS

$138.99

$

Usually ships in 4-12 days

0

4

Ariens 05104800

GRIP, FRONT

$18.99

$

Usually ships in 4-12 days

0

5

Ariens 05109100

GRIP, STEP

$9.99

$

Usually ships in 4-12 days

0

6

Ariens 05501319

SPACER, .515X.75X1.83

$5.49

$

Usually ships in 4-12 days

0

7

Ariens 06800203

PIN, MAGNETIC .50X2.50
(Superseded to 06800218)

$25.99

$

In Stock, only 2 left!

0

8

Ariens 07533600

BUMPER, RUBBER

$12.99

$

In Stock, only 3 left!

0

9

Ariens 05901737

BLT, HEX .50-13X3.00 G5 ZCC

$5.49

$

In Stock, Qty 8

0

10

Ariens 05901716

BLT, HEX .25-20X.75 G5 ZCC

$1.49

$

In Stock, Qty 12

0

11

Ariens 06500813

NUT,NYL-FLG .25-20 GF ZCC

$1.99

$

Usually ships in 4-12 days

0

12

Ariens 06500815

NUT,SPNLK-FLG .31-18 G5 ZCC

$1.99

$

In Stock, Qty 20+

0

13

Ariens 06500907

NUT-LK-TOP-FLG .500-13 GF ZCC

$1.99

$

In Stock, Qty 20+

0

14

Ariens 05501323

BSHG-SLV .344 X .500 X .260

$3.99

$

Usually ships in 4-12 days

0

15

Ariens 06200310

BLT, RHSSN.31-18X1.25 G5 ZCC

$1.99

$

In Stock, only 3 left!

0

16

Ariens 06401023

WSHR,FLT .375X.875X.083 ZCC

$1.99

$

In Stock, Qty 20+

0

17

Ariens 06500809

NUT,LK-NYL-FLG .31-18 G5ZC120

$1.99

$

In Stock, Qty 20+

0

18

Ariens 05199951

GUARD, TRANSAXLE FAN - RH

$45.99

$

Usually ships in 4-12 days

0

19

Ariens 05200051

BRKT, TRANSAXLE FAN GUARD

$13.99

$

Usually ships in 4-12 days

0

20

Ariens 05240751

BRKT, TRANSAXLE FAN GUARD-LH

$45.99

$

Usually ships in 4-12 days

0

21

Ariens 05241351

MOUNT, TRANSAXLE GUARD

$29.99

$

Usually ships in 4-12 days

0

22

Ariens 06200311

BLT, RHSSN.31-18X2.25 G5 ZCC

$4.99

$

Usually ships in 4-12 days

0

23

Ariens 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0
