991316 - Ariens Apex 48" Zero-Turn Mower, 23hp Kawasaki FR (SN: A0371200 & Above) Deck Belts Blades and Spindles - 48" Parts Diagram

Apex 48" Zero-Turn Mower, 23hp Kawasaki FR

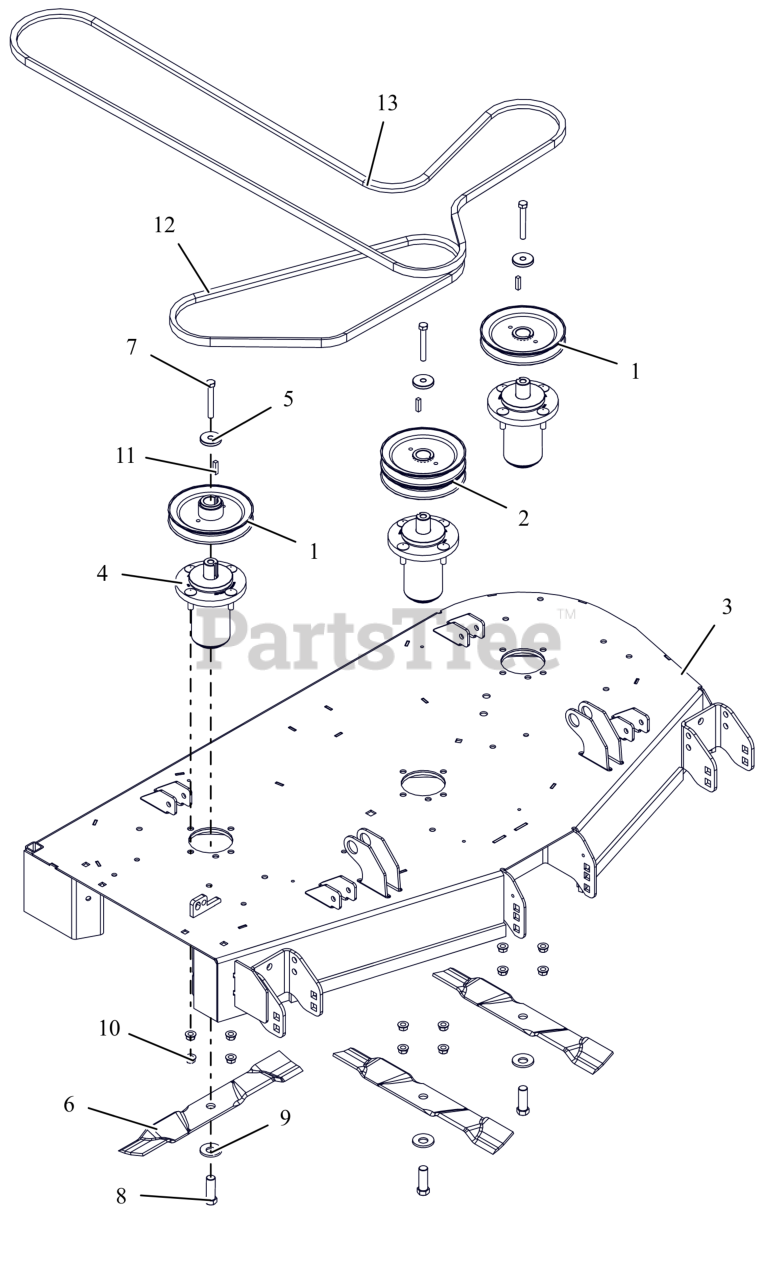

Deck Belts Blades and Spindles - 48" Parts Diagram

  • Title

1

Ariens 07332167

PULLEY, SINGLE-1"ID X 6" OD
(Superseded to 59211700)

$83.99

$

In Stock, Qty 12

0

2

Ariens 07332367

PULLEY, DOUBLE
(Superseded to 07332300)

$80.99

$

In Stock, Qty 10

0

3

Ariens 32113000

WLDMT, 48 CE SIDE DISCH DECK (ORANGE)

$

$

Currently unavailable

4

Ariens 58810800

ASM, MAINT FREE ALUM SPINDLE

$361.99

$

In Stock, Qty 20+

0

5

Ariens 04530500

RETAINER, SHEAVE

$9.49

$

In Stock, Qty 16

0

6

Ariens 05244100

BLADE, MULCH - 16.25"

$27.99

$

In Stock, Qty 20+

0

7

Ariens 05901813

BLT, HEX .38-16X2.75 G8 ZCC

$1.99

$

In Stock, Qty 20+

0

8

Ariens 05901822

BLT, HEX .62-18X1.75 G8 ZCC

$3.99

$

In Stock, Qty 20+

0

9

Ariens 06445700

WSHR-BLVL .669X1.535X.138

$5.49

$

In Stock, Qty 20+

0

10

Ariens 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

11

Ariens 06611200

KEY, SQ .25X.25X1.00 RC 40-50

$3.49

$

In Stock, Qty 20+

0

12

Ariens 07200805

V-BELT, B-COGGED

$43.99

$

In Stock, Qty 10

0

13

Ariens 07200815

V-BELT, HB SECTION

$113.99

$

In Stock, Qty 7

0
