991320 - Ariens Zenith 52" Zero-Turn Mower, 23.5hp Kawasaki FX, Side-Discharge (SN: 000101 & Above) Front Caster Wheels Parts Diagram

Zenith 52" Zero-Turn Mower, 23.5hp Kawasaki FX, Side-Discharge

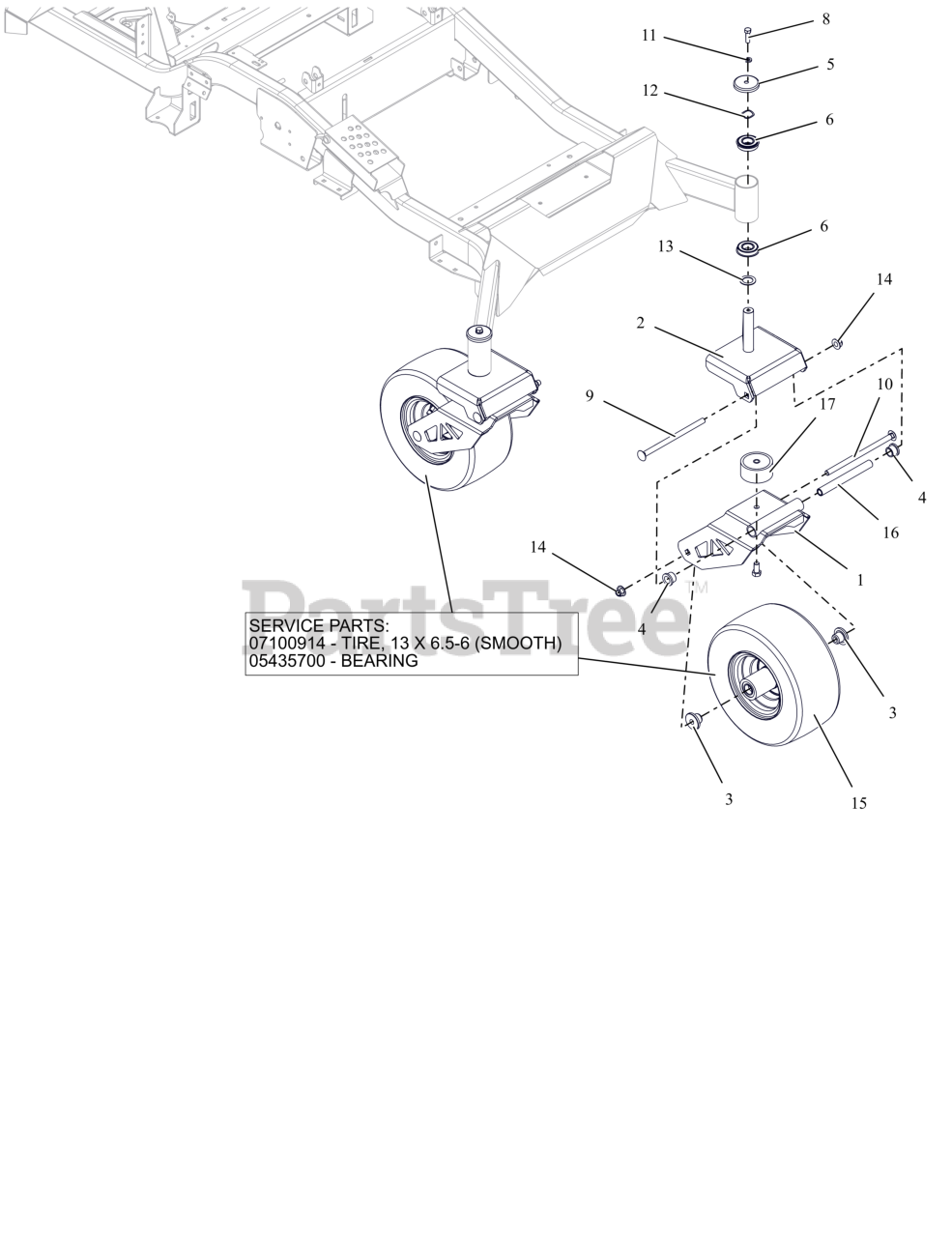

Front Caster Wheels Parts Diagram

  • Title

1

Ariens 09360559

WLDMT- LOWER SUSPENSION (ORG)

$107.99

$

Usually ships in 4-12 days

0

2

Ariens 09498259

WLDMT- UPPER SUSPENSION FORK

$81.99

$

Usually ships in 4-12 days

0

3

Ariens 00675300

SPACER, FRONT WHEEL

$9.49

$

In Stock, Qty 20+

0

4

Ariens 03985500

BUSHING, FLANGE .75X.75X1.0

$6.99

$

In Stock, Qty 18

0

5

Ariens 05198400

SHIELD, AXLE BEARING

$7.49

$

In Stock, Qty 11

0

6

Ariens 05400728

BEARING, BALL -2.000 OD X 1.000 ID X .5625 W/RING

$14.99

$

In Stock, only 2 left!

0

7

Ariens 05901715

BLT, HEX .50-13X1.00 G5 ZCC

$2.99

$

In Stock, Qty 7

0

8

Ariens 05901724

BLT, HEX .38-16X1.25 G5 ZCC

$1.99

$

In Stock, Qty 7

0

9

Ariens 06200321

BLT, RHSN .50-13X8.50 G5 ZCC

$7.99

$

In Stock, Qty 20+

0

10

Ariens 06200510

BLT-RHSN .50-13X9.00 G5 ZCC NS

$8.49

$

In Stock, only 4 left!

0

11

Ariens 06300120

WSHR, LK-HVY .375X.115 ZCC

$4.99

$

In Stock, Qty 16

0

12

Ariens 06401030

WSHR-WAVE 1.0X1.25X.028 .145FH

$6.49

$

In Stock, only 3 left!

0

13

Ariens 06416600

WSHR-HRD-THRS 1.007X1.542X.062

$3.49

$

In Stock, Qty 20+

0

14

Ariens 06500810

NUT,NYL-FLG .50-13 GF ZCC

$1.99

$

In Stock, Qty 20+

0

15

Ariens 07101226

ASM, WHL/TIRE 13X6.50-6

$137.99

$

Usually ships in 4-12 days

0

15

Ariens 07100914

LAWN TIRE FRONT, 13X6.50-6 SMOOTH

Note: Component Service Part

$85.99

$

Usually ships in 4-12 days

0

15

Ariens 05435700

BRG, 25MM ID X 52MM OD X 15MM

Note: Component Service Part

$25.99

$

In Stock, Qty 20+

0

15

Ariens 07520000

VALVE STEM ASS'Y

Note: Component Service Part

$2.99

$

In Stock, only 4 left!

0

15

Ariens 07101508

TIRE TUBE, 13/6.5-6 4 PLY TR87 90 BENT VALVE

Note: Optional Component Service Part

$33.99

$

Usually ships in 4-12 days

0

16

Ariens 09361100

ROD- FORK PIVOT

$20.99

$

Usually ships in 4-12 days

0

17

Ariens 09361200

SPCR- RUBBER SUSPENSION

$54.99

$

Usually ships in 4-12 days

0
