991322 - Ariens Zenith 60" Zero-Turn Mower, 23.5hp Kawasaki FX, Side-Discharge (SN: A0397256 & Above) Parking Brake Parts Diagram

Zenith 60" Zero-Turn Mower, 23.5hp Kawasaki FX, Side-Discharge

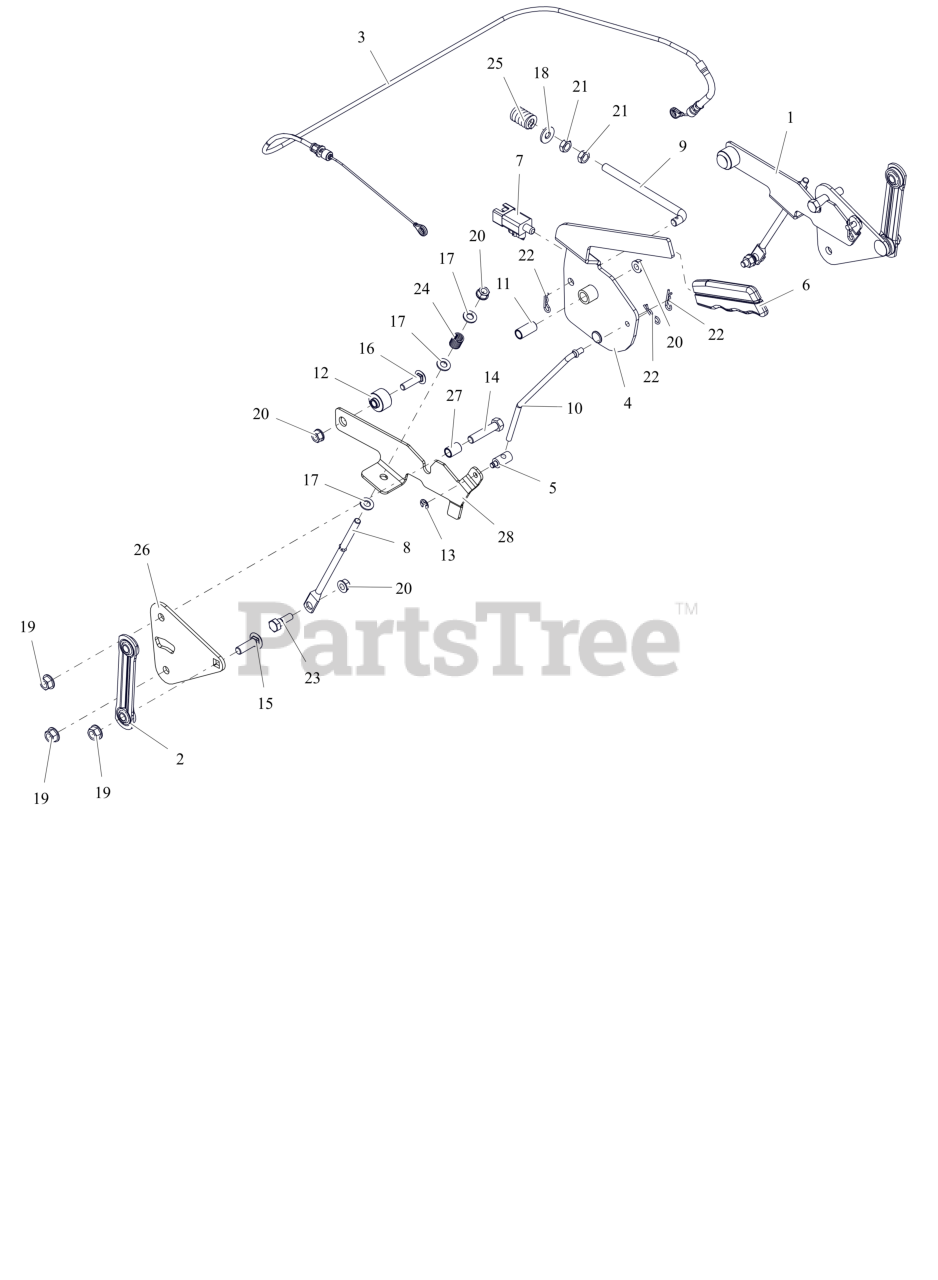

Parking Brake Parts Diagram

  • Title

1

Ariens 04998600

ARM, BRAKE - LH (W/PIN)

$23.99

$

Usually ships in 4-12 days

0

2

Ariens 05199700

LINK, STAMPED STEERING

$16.99

$

In Stock, only 2 left!

0

3

Ariens 06900706

CABLE, BRAKE - PARKING

$30.99

$

In Stock, only 3 left!

0

4

Ariens 329705951

HANDLE, PARKING BRAKE - WLDMT (BLACK)

$

$

Currently unavailable

5

Ariens 03764800

TRUNION, 1/4-20

$14.99

$

In Stock, only 3 left!

0

6

Ariens 05097200

GRIP, PARKING BRAKE (GREY)

$6.49

$

Usually ships in 4-12 days

0

7

Ariens 03834300

SWITCH, SNAP IN - N.O./N.O.

$15.99

$

In Stock, only 1 left!

0

8

Ariens 04999000

ROD, LINK - TRANSMISSION BRAKE

$11.99

$

Usually ships in 4-12 days

0

9

Ariens 04999100

ROD, OVER CENTER

$10.99

$

In Stock, only 1 left!

0

10

Ariens 05000600

ROD, BRAKE LINK

$14.99

$

In Stock, Qty 12

0

11

Ariens 05500106

BSHG-SLV .385X.500X1.045

$1.99

$

In Stock, Qty 20+

0

12

Ariens 05501315

SPCR, FLANGE

$6.49

$

Usually ships in 4-12 days

0

13

Ariens 05700125

RG-RTNG-EXT .250X.025

$1.49

$

In Stock, Qty 13

0

14

Ariens 05901809

BLT, HEX .38-16X1.75 G5 ZCC

$1.99

$

In Stock, only 3 left!

0

15

Ariens 06200236

BLT,RHSSN .38-16X1.25 G5 ZCC

$2.99

$

In Stock, Qty 12

0

16

Ariens 06200310

BLT, RHSSN.31-18X1.25 G5 ZCC

$1.99

$

In Stock, only 3 left!

0

17

Ariens 06401017

WSHR,FLT .344X.688X.065 ZCC

$0.99

$

In Stock, Qty 20+

0

18

Ariens 06401023

WSHR,FLT .375X.875X.083 ZCC

$1.99

$

In Stock, Qty 20+

0

19

Ariens 06500822

NUT-LK-TOP-FLG .38-16 ZC120

$1.49

$

In Stock, Qty 20+

0

20

Ariens 06500904

NUT-LK-TOP-FLG .312-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

21

Ariens 06500910

NUT-JAM .375-16 G2 ZCC

$1.49

$

In Stock, Qty 20+

0

22

Ariens 06700222

PIN, HAIR #213 .08X1.19 ZCC

$0.99

$

In Stock, Qty 20+

0

23

Ariens 07001734

BOLT,SHLDR .38X.25 -.31-18X.75

$3.49

$

Usually ships in 4-12 days

0

24

Ariens 08300028

SPRING, COMPRESSION

$5.49

$

In Stock, Qty 14

0

25

Ariens 08320900

SG-COMP .187X.56X1.62

$5.49

$

In Stock, Qty 6

0

26

Ariens 09191051

PLATE, TRANSAXLE (BLACK)

$13.99

$

Usually ships in 4-12 days

0

27

Ariens 09374800

SPCR SLEEVED .385X.500X.718

$1.49

$

Usually ships in 4-12 days

0

28

Ariens 09389500

ARM, BRAKE - RH

$21.99

$

Usually ships in 4-12 days

0
