991326 - Ariens Apex 52" Zero-Turn Mower, 23hp Kawasaki FR, Side-Discharge (SN: 120000 - 134999) Engine Guard Parts Diagram

Apex 52" Zero-Turn Mower, 23hp Kawasaki FR, Side-Discharge

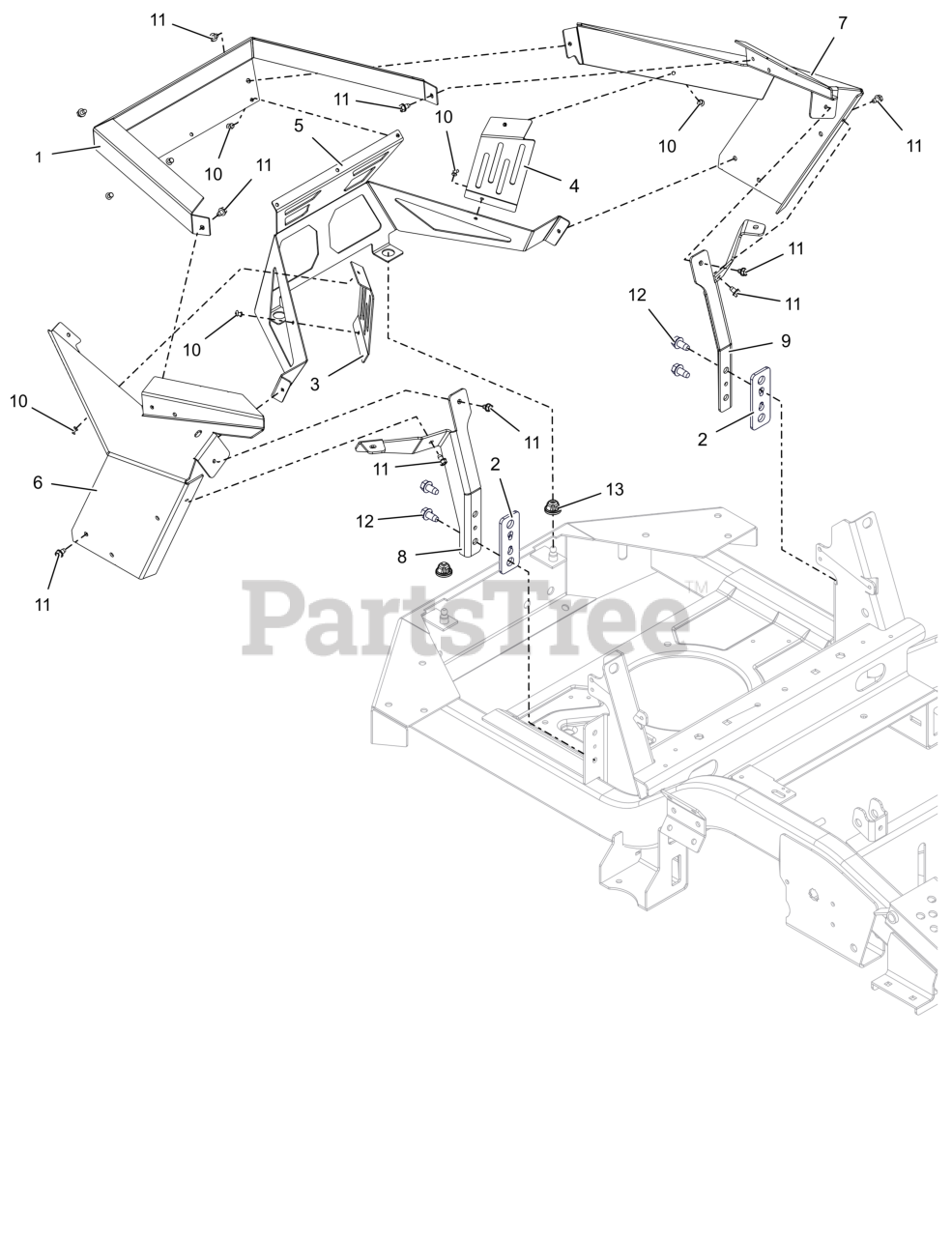

Engine Guard Parts Diagram

  • Title

1

Ariens 05103559

GUARD,ENGINE WRAP

$38.99

$

Usually ships in 4-12 days

0

2

Ariens 05117459

PLATE, CONTROL PANEL SPACER

$5.49

$

Usually ships in 4-12 days

0

3

Ariens 05140551

SHIELD,RH ENGINE GUARD VALVE

$

$

Not available

4

Ariens 05140651

SHIELD,LH ENGINE GUARD VALVE

$

$

Not available

5

Ariens 05196751

GUARD, ENGINE

$33.99

$

Usually ships in 4-12 days

0

6

Ariens 05196859

PANEL, RH REAR FENDER MOUNT

$53.99

$

Usually ships in 4-12 days

0

7

Ariens 05196959

PANEL, LH REAR FENDER MOUNT

$56.99

$

Usually ships in 4-12 days

0

8

Ariens 05244459

BRKT, RH FENDER MTG (ORANGE)

$60.99

$

Usually ships in 4-12 days

0

9

Ariens 05244559

BRKT, LH FENDER MOUNT (ORANGE)

$52.99

$

Usually ships in 4-12 days

0

10

06800228

RVT-POP .187x.250 (#64) BLK

$

$

Not available

11

Ariens 07400125

SCR,TAP .25-20X.375 HWH TR ZCC

$1.99

$

In Stock, Qty 20+

0

12

Ariens 07400129

SCR,TAP .375-16X.75 HWH TR ZCC

$2.49

$

In Stock, Qty 20+

0

13

Ariens 07500407

GROMMET, 10MM BOLLHOFF

$6.99

$

In Stock, Qty 20+

0
