991326 - Ariens Apex 52" Zero-Turn Mower, 23hp Kawasaki FR, Side-Discharge (SN: 120000 - 134999) Seat Parts Diagram

Apex 52" Zero-Turn Mower, 23hp Kawasaki FR, Side-Discharge

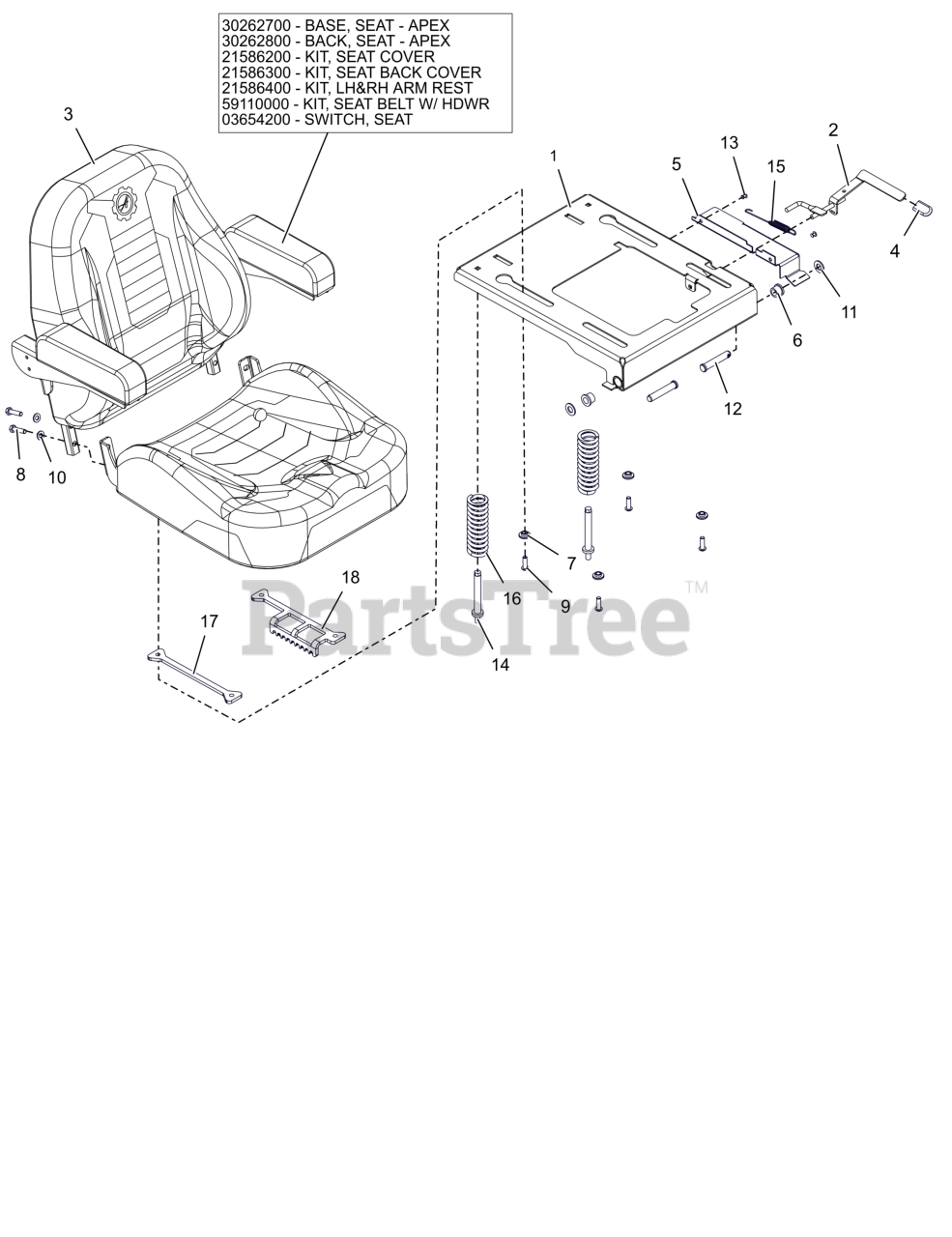

Seat Parts Diagram

  • Title

1

Ariens 04995659

WLDMT, SEAT PLATE HD

$115.99

$

Usually ships in 4-12 days

0

2

Ariens 05015251

WLDMT, SEAT SLIDE LEVER

$25.99

$

Usually ships in 4-12 days

0

3

Ariens 30265100

SEAT, ASM APEX/ZENITH

$608.99

$

Usually ships in 4-12 days

0

3

30262700

BASE, SEAT - APEX

Note: Component Service Part

$

$

Not available

3

30262800

BACK, SEAT - APEX

Note: Component Service Part

$

$

Not available

3

Ariens 21586200

KIT, SEAT COVER BOTTOM

Note: Component Service Part

$102.99

$

Usually ships in 4-12 days

0

3

Ariens 21586300

KIT, SEAT BACK COVER

Note: Component Service Part

$116.99

$

Usually ships in 4-12 days

0

3

Ariens 21586400

KIT, LH & RH ARM REST

Note: Component Service Part

$165.99

$

Usually ships in 4-12 days

0

3

Ariens 59110000

KIT-SEAT BELT REPLACE-05007300

Note: Component Service Part

$150.99

$

Usually ships in 4-12 days

0

3

Ariens 03654200

SWITCH- SEAT

Note: Component Service Part

$15.99

$

In Stock, Qty 5

0

4

Ariens 04396600

GRIP, SEAT LEVER, GREY

$3.49

$

Usually ships in 4-12 days

0

5

Ariens 05151459

GUARD, SEAT PLATE CE

$45.99

$

Usually ships in 4-12 days

0

6

Ariens 05500901

BSHG, FLG .516X.750X.625X.937

$6.99

$

In Stock, only 2 left!

0

7

Ariens 05501127

BSHG-FLG .325X.499X.3X.875

$1.99

$

In Stock, Qty 20+

0

8

Ariens 05901803

BLT, HEX .31-18X1.25 G5 ZCC

$3.49

$

In Stock, Qty 12

0

9

Ariens 05901840

BLT,SHCS-BTN .31-18X1.00 ZCC

$3.49

$

In Stock, Qty 20+

0

10

Ariens 06401017

WSHR,FLT .344X.688X.065 ZCC

$1.49

$

In Stock, Qty 20+

0

11

Ariens 06443300

WSHR-FL-NYL .518X1.000X.080

$1.49

$

In Stock, Qty 20+

0

12

Ariens 06800202

PIN-CLIC .50X2.70X2.31 -ZCC

$9.49

$

In Stock, Qty 5

0

13

06800228

RVT-POP .187x.250 (#64) BLK

$

$

Not available

14

07002408

BOLT, SEAT SPRING

$

$

Not available

15

Ariens 08300022

SG-TENS .06X.482X5.35

$6.99

$

In Stock, Qty 20+

0

16

Ariens 08300704

SPRING, COMPRESSION SEAT 224LB

$18.99

$

In Stock, only 2 left!

0

17

Ariens 09363400

PLATE, ADJUSTABLE

$

$

Currently unavailable

18

Ariens 09363500

PLATE, HD SEAT ADJUSTMENT

$

$

Currently unavailable
