991400 (EZKW2352S) - EverRide Hornet 52" Zero-Turn Mower, 23hp Kawasaki (SN: 000101 - 009999) Frame, Seat And Seat Support Parts Diagram

Hornet 52" Zero-Turn Mower, 23hp Kawasaki

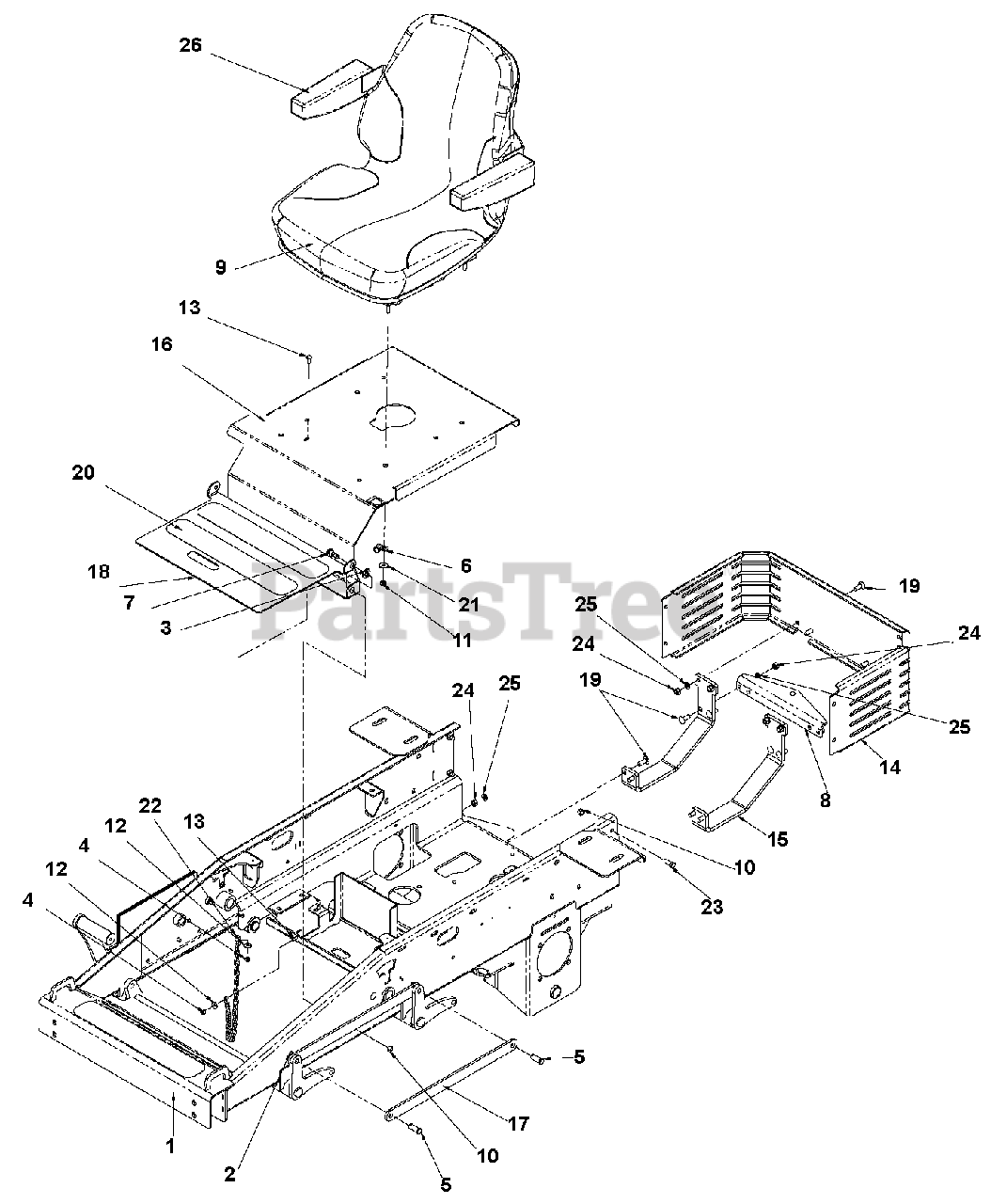

Frame, Seat And Seat Support Parts Diagram

  • Title

1

Gravely 03786061

Weldment, Frame

$

$

Not available

2

Gravely 00967354

Ring, Rue .500 x .062 x 1.420

$3.99

$

Usually ships in 4-12 days

0

3

Gravely 00967398

Washer, .510 x 1.00 x .068 Nylon

$

$

Not available

4

Gravely 00964048

Locknut, 1/4-20 Nyloc

$

$

Not available

5

Gravely 00110330

Pin, Cleavis .500 x 1.25 x 1.02
(Superseded to 06821600)

$3.99

$

In Stock, only 1 left!

0

6

Gravely 00111886

P-Clip, .500 Insulated
(Superseded to 06900512)

$

$

Not available

7

Gravely 00135139

Bolt, 1/2 x 1.00 x 3/8-16 SLD 5
(Superseded to 07070119)

$3.99

$

Usually ships in 4-12 days

0

8

Gravely 03817261

Plate, Hitch

$

$

Not available

9

Gravely 00180916

Seat, Suspension - Light Grey

$

$

Not available

10

Gravely 00964022

Locknut, 3/8-16 Crown

$

$

Not available

11

Gravely 00964021

Locknut, 5/16-18 Crown
(Superseded to 06530800)

$6.49

$

Usually ships in 4-12 days

0

12

Gravely AA960700

Washer, .250 Reg. Flat
(Superseded to 06435800)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 00963095

Bolt, 1/4-20 x .750 Grade 5
(Superseded to 06219900)

$1.49

$

Usually ships in 4-12 days

0

14

03786761

Plate, Rear Guard

$

$

Not available

15

Gravely 03786261

Brace. Bent Arm Hitch

$

$

Not available

16

Gravely 03786700

Plate, Seat w/Decals

$

$

Not available

17

Gravely 00191142

Plate, Arm Connector Link

$

$

Not available

18

Gravely 03786461

Plate, Floor Pan

$

$

Not available

19

Gravely 00963019

Bolt, 3/8-16 x 1.00 Grade 5

$

$

Not available

20

Gravely 00191257

Tape, Traction 3.00 x 17.00

$

$

Not available

21

Gravely 00960701

Washer, .313 Reg. Flat
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

22

Gravely 00191487

Chain, .148 x 28 Links

$

$

Not available

23

Gravely 00960046

Bolt, 3/8-16 x 1.00 Hex 5
(Superseded to 05948700)

$1.99

$

In Stock, Qty 20+

0

24

Gravely 00960502

Nut, 3/8-16 STD Hex Grade 5

$

$

Not available

25

Gravely 00960602

Washer, .375 Med. Spring Lock

$

$

Not available

26

Gravely 59204500

Kit, Arm Rest

$

$

Not available
