991400 (EZKW2352S) - EverRide Hornet 52" Zero-Turn Mower, 23hp Kawasaki (SN: 000101 - 009999) Hydraulics Parts Diagram

Hornet 52" Zero-Turn Mower, 23hp Kawasaki

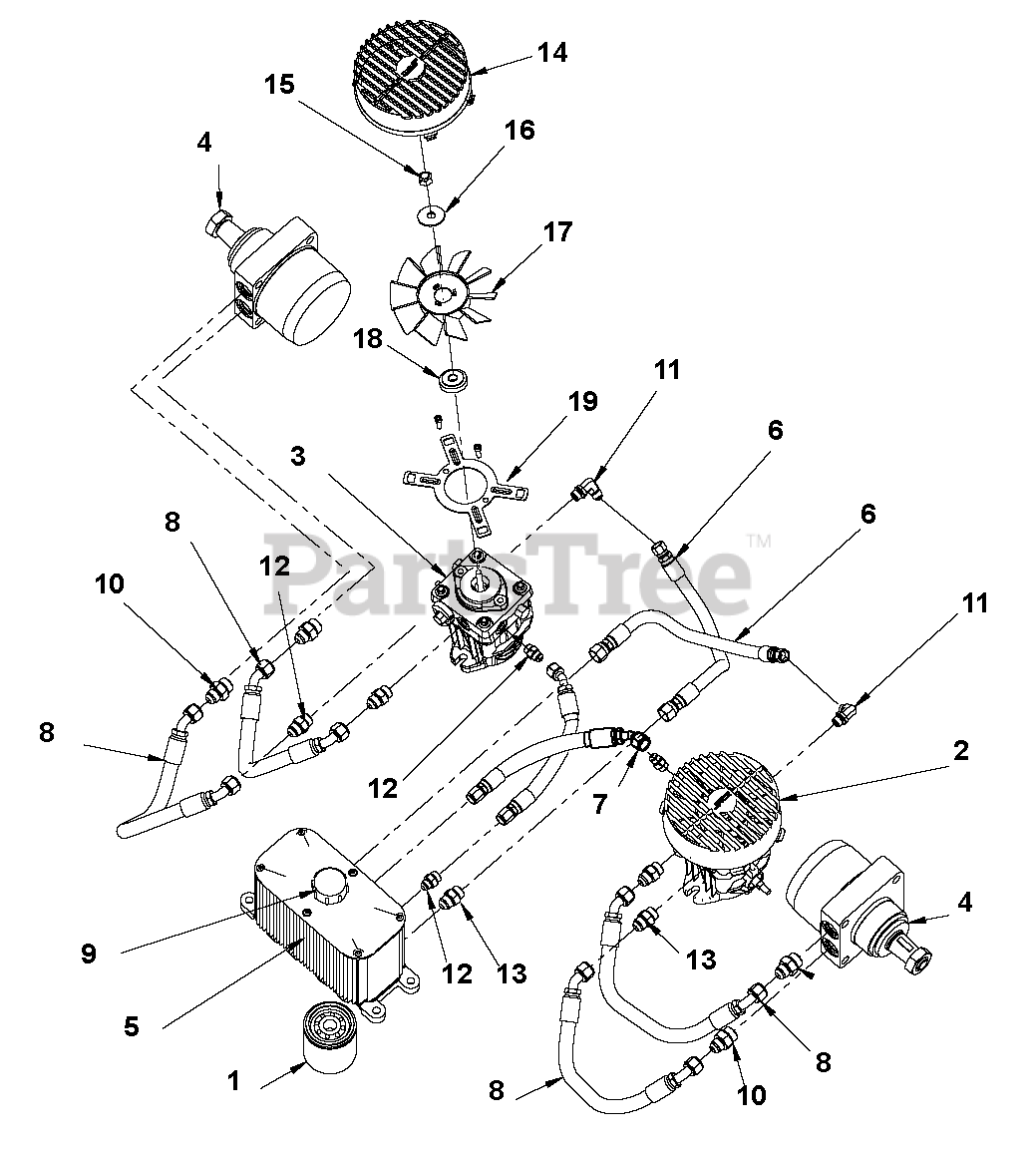

Hydraulics Parts Diagram

  • Title

1

Gravely 00180909

Filter, 25 MICRON

$51.99

$

Usually ships in 4-12 days

0

2

Gravely 00261600

Pump, Hydro-Gear Left Hand

$1246.99

$

Usually ships in 4-12 days

0

3

Gravely 00273900

Pump, Hydro-Gear Right Hand

$864.99

$

Usually ships in 4-12 days

0

4

Gravely 00191103

Wheel Motor, Parker TL195

$781.99

$

Usually ships in 4-12 days

0

5

Gravely 00191157

Tank, Hydraulic

$

$

Not available

6

Gravely 00191204

Hose, Hydraulic 3/8 9/16 & 3/4FJICSW

$25.99

$

Usually ships in 4-12 days

0

7

Gravely 00191205

Hose, Hydraulic 3/8 9/16JICFESW

$45.99

$

Usually ships in 4-12 days

0

8

Gravely 00191206

Hose, Hydraulic 1/2 3/4FJICSW45°

$

$

Not available

9

Gravely 00191600

Cap, Hydraulic

$

$

Not available

10

Gravely 00231104

Adapter, 7/8MOR X 3/4MJIC

$

$

Not available

11

313270

Fitting, 90 9/16 MOR X 9/16 MJIC

$

$

Not available

12

Gravely 00221285

Fitting, ADP 9/16-18MORX9/16MJIC

$

$

Not available

13

Gravely 00313391

Adapter, 3/4-16MORX 3/4-16JIC

$

$

Not available

14

Gravely 00191620

Shroud, PUMP

$25.99

$

Usually ships in 4-12 days

0

15

964066

Locknut, 3/8-24 CROWN

$

$

Not available

16

Gravely 00180995

Washer, .375 X 1.24 X .072 BLVL

$10.99

$

Usually ships in 4-12 days

0

17

Gravely 00191621

Fan,Pump

$

$

Not available

18

Gravely 00180994

Hub, Fan

$21.99

$

In Stock, only 2 left!

0

19

Gravely 00191622

Plate, Shroud Mount

$

$

Not available

20

191618

Seal Kit, Hydro-Gear Pump

$

$

Not available

21

191619

Seal Kit, Parker Wheel Motor

$

$

Not available
