991401 (EZKH1848S) - EverRide Hornet 48" Zero-Turn Mower, 18hp Kawasaki (SN: 010000 & Above) Electrical System Parts Diagram

Hornet 48" Zero-Turn Mower, 18hp Kawasaki

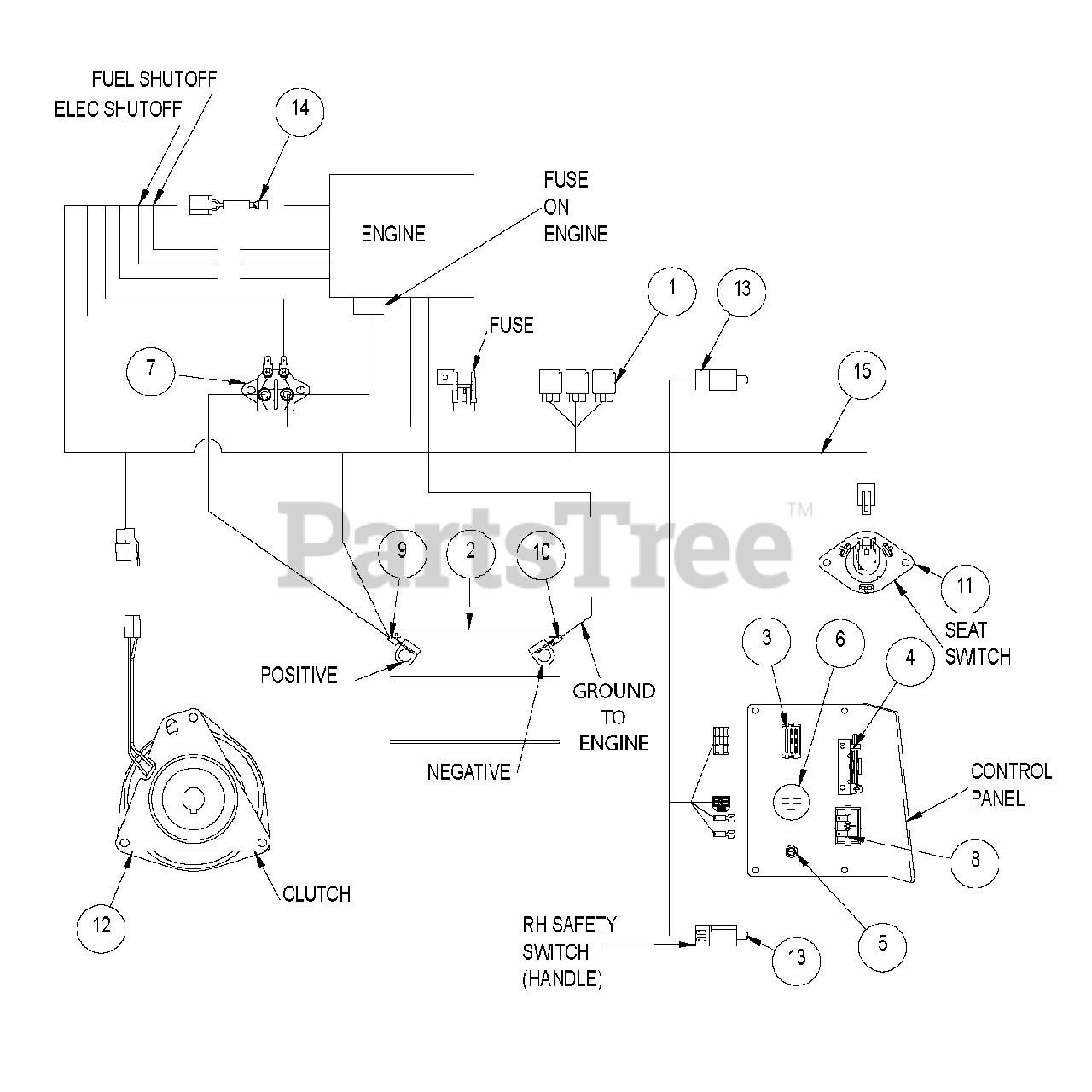

Electrical System Parts Diagram

  • Title

1

Ariens 00102770

RELAY, ISO MINI ELEC.

$21.99

$

In Stock, only 1 left!

0

2

BATTERY, 12V - SEALED

$

$

Not available

3

Ariens 00136574

SWITCH, PTO ENGAGEMENT

$28.99

$

In Stock, only 1 left!

0

4

Ariens 00181816

CABLE, THROTTLE

$

$

Not available

5

Ariens 00180273

CABLE, CHOKE 48.0"

$52.99

$

In Stock, only 1 left!

0

6

Ariens 00180620

SWITCH, KEY - 3 POSITION

$35.99

$

In Stock, only 4 left!

0

7

Ariens 00180640

SOLENOID, 12V STARTER

$

$

Not available

8

Ariens 00192296

METER, HOUR - LCD ALT. (ENM)

$68.99

$

Usually ships in 4-12 days

0

9

Ariens 00180842

CABLE, 12" STARTER

$15.99

$

Usually ships in 4-12 days

0

10

Ariens 00191227

CABLE, BATTERY - 35" GROUND

$

$

Not available

11

Ariens 00181074

SEAT SWITCH S/O

$

$

Not available

12

Ariens 00191109

CLUTCH, ELECT - OGURA GT, 2.5

$387.99

$

In Stock, only 1 left!

0

12

Ariens 00191840

CLUTCH, ELECT - OGURA, GT2.5

$

$

Not available

13

Ariens 00191256

SWITCH, PLUNGER DP - N.O.-N.C.
(Superseded to 08828100)

$20.99

$

In Stock, only 1 left!

0

14

Ariens 00288200

ADAPTER HARNESS, 19KAI/23KAW

$

$

Not available

14

Ariens 00191842

HARNESS, KOHLER ADAPTER

$

$

Not available

15

Ariens AA191200

HARNESS, POWER UNIT WIRE

$217.99

$

Usually ships in 4-12 days

0
