991402 (EZKA1948S) - EverRide Hornet 48" Zero-Turn Mower, 19hp Kawasaki (SN: 000101 - 009999) Casters, Wheels And Brake Parts Diagram

Hornet 48" Zero-Turn Mower, 19hp Kawasaki

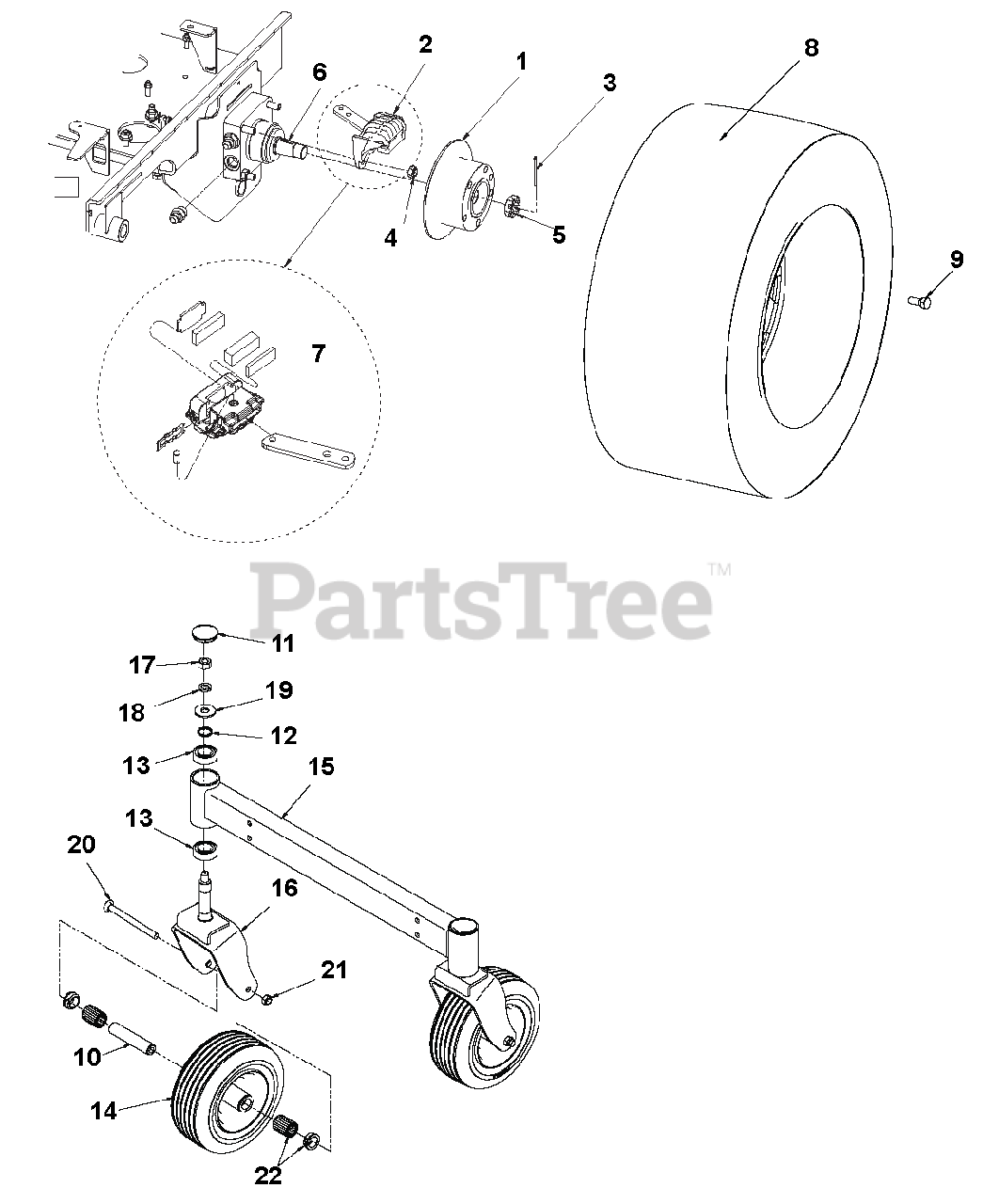

Casters, Wheels And Brake Parts Diagram

  • Title

1

Gravely 00191110

HUB, WHEEL - 5 BOLT, 8" DISC

$116.99

$

Usually ships in 4-12 days

0

2

Gravely 00191111

CALIPER, M15 BRAKE & BRKT CCW

$157.99

$

Usually ships in 4-12 days

0

Gravely 00191112

CALIPER, M15 BRAKE & BRKT CW

$187.99

$

Usually ships in 4-12 days

0

3

Gravely 00962020

PIN, COT .125X1.75 EXTP Y
(Superseded to 06709700)

$

$

Not available

4

Gravely AA964000

LOCKNUT, 1/2-13 CROWN Y
(Superseded to 06528200)

$3.99

$

In Stock, Qty 5

0

5

Gravely 00191625

NUT, 1-20 SPECIAL CASTLE S/O

$

$

Not available

6

Gravely 00191603

KEY, WDRF .313X1.00-#1008 S/O
(Superseded to 06607800)

$4.99

$

Usually ships in 4-12 days

0

7

Gravely 00191606

KIT, 3/16 DISC BRAKE PAD S/O

$76.99

$

Usually ships in 4-12 days

0

8

Gravely 00191228

ASSY, TIRE & RIM - 23X10.50-12

$

$

Not available

Gravely 00191229

TIRE, W/O RIM 23 X10.50-12 4PL

$

$

Not available

Gravely 00191721

RIM, 12X8.5X.3 OFFSET SLVR S/O

$

$

Not available

9

Gravely 00967133

BOLT, 1/2-20X1.00 LUG Y
(Superseded to 07000143)

$3.99

$

In Stock, Qty 20+

0

10

Gravely 00191049

TUBE, RD 1.00X.500X4.76

$52.99

$

In Stock, only 4 left!

0

11

Gravely 00191052

CAP, DUST 2.14

$

$

Not available

12

Gravely AA191100

WASHER,WAVE 1.0SHAFT 1.25 BORE

$16.99

$

Usually ships in 4-12 days

0

13

Gravely 00149230

BRG, BAL .984X2.05X.591 - 6205
(Superseded to 00191155)

$23.99

$

In Stock, Qty 6

0

14

Gravely 00200778

WHEEL, FRONT 11X4X5

$116.99

$

In Stock, only 1 left!

0

15

Gravely 03785561

WLDT, FRONT AXLE (PAINT ERIDE)

$

$

Not available

16

Gravely 03785661

WLDT, FR WHEEL FORK (EVERRIDE)

$

$

Not available

17

Gravely 00960505

NUT, 5/8-11 STD HEX GR5 Y
(Superseded to 06535600)

$2.99

$

In Stock, only 3 left!

0

18

Gravely 00960605

WASHER, .625 MED SPRG LOCK Y
(Superseded to 06309500)

$2.49

$

In Stock, only 2 left!

0

19

Gravely 00960705

WASHER, .625 REG FLAT Y
(Superseded to 06442900)

$1.49

$

In Stock, Qty 13

0

20

Gravely 00963011

BOLT, 1/2-13X6.00 CRG Y
(Superseded to 06223400)

$10.99

$

In Stock, Qty 10

0

21

Gravely AA964000

LOCKNUT, 1/2-13 CROWN Y
(Superseded to 06528200)

$3.99

$

In Stock, Qty 5

0

22

Gravely 00191604

KIT, BRG - 1.00 X 4.75 HUB S/O

$52.99

$

Usually ships in 4-12 days

0
