991402 (EZKA1948S) - EverRide Hornet 48" Zero-Turn Mower, 19hp Kawasaki (SN: 000101 - 009999) Electrical System Parts Diagram

Hornet 48" Zero-Turn Mower, 19hp Kawasaki

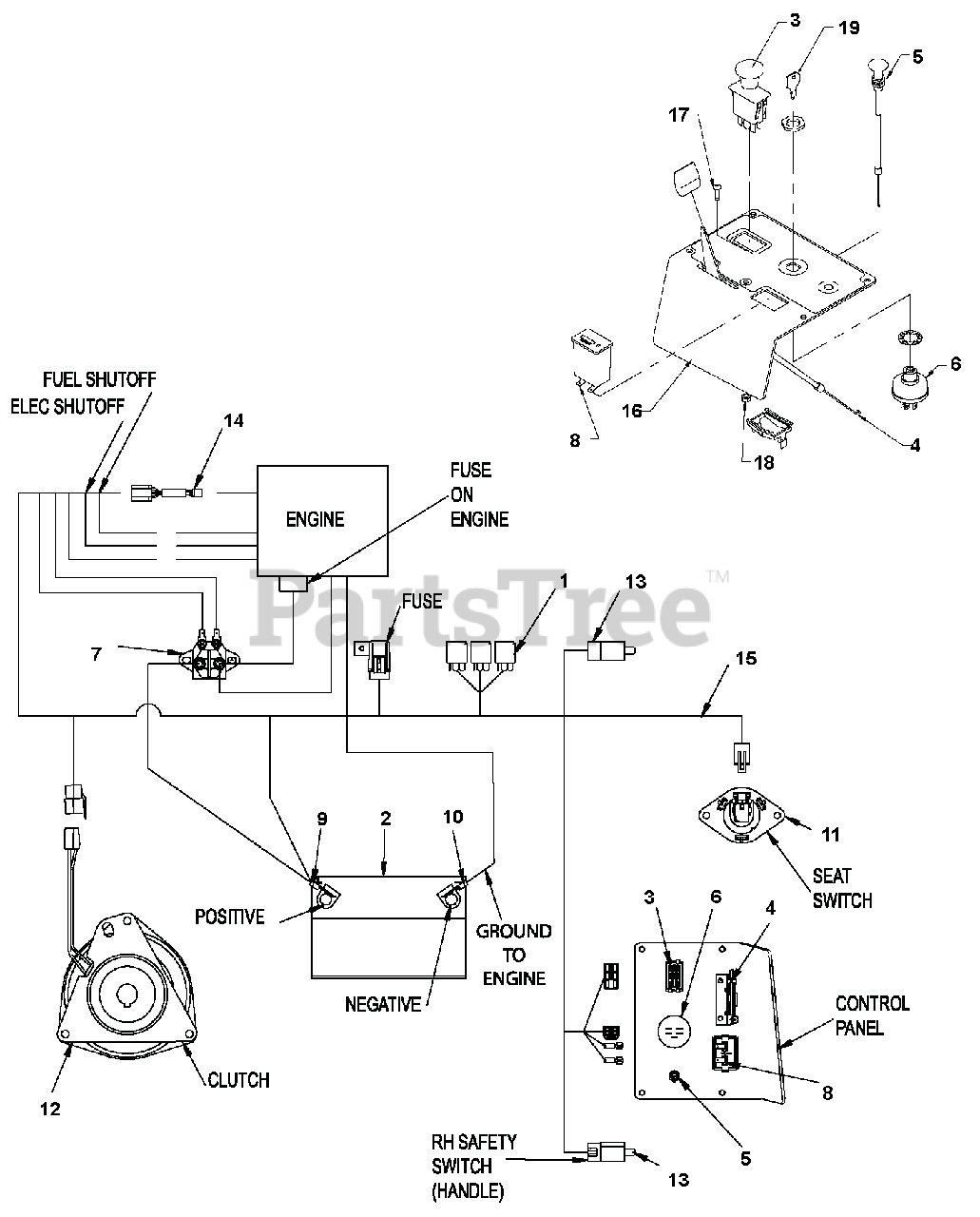

Electrical System Parts Diagram

  • Title

1

Gravely 00102770

RELAY, ISO MINI ELEC.

$27.99

$

Usually ships in 4-12 days

0

2

Gravely 00191832

BATTERY, 12V-U1-CCA270MIN
(Superseded to 01554800)

$

$

Not available

3

Gravely 00136574

SWITCH, PTO ENGAGEMENT

$29.99

$

In Stock, only 4 left!

0

4

Gravely 00181816

CABLE, THROTTLE

$

$

Not available

5

Gravely 00180273

CABLE, CHOKE 48.0"

$56.99

$

In Stock, only 2 left!

0

6

Gravely 00180620

SWITCH, KEY - 3 POSITION

$36.99

$

In Stock, Qty 5

0

7

Gravely 03551000

SOLENOID

$43.99

$

In Stock, Qty 6

0

8

Gravely 00192296

METER, HOUR - LCD ALT. (ENM)

$70.99

$

In Stock, only 1 left!

0

9

Gravely 00180842

CABLE, 12" STARTER

$15.99

$

Usually ships in 4-12 days

0

10

Gravely 00191227

CABLE, BATTERY - 35" GROUND

$

$

Not available

11

Gravely 00181074

SEAT SWITCH S/O

$

$

Not available

12

Gravely 00191109

CLUTCH, ELECT - OGURA GT, 2.5

$386.99

$

Usually ships in 4-12 days

0

13

Gravely 00191256

SWITCH, PLUNGER DP - N.O.-N.C.
(Superseded to 08828100)

$21.99

$

In Stock, only 1 left!

0

14

Gravely 00288200

ADAPTER HARNESS, 19KAI/23KAW

$

$

Not available

15

Gravely AA191200

HARNESS, POWER UNIT WIRE

$

$

Not available

16

Gravely 00181369

PLATE, CONTROL PANEL

$

$

Not available

17

Gravely 00967340

SCREW, 10-24X.625 PAN PHL MACY

$0.99

$

Usually ships in 4-12 days

0

18

Gravely 00964028

LOCKNUT, 10-24 CENTER Y
(Superseded to 06540500)

$

$

Not available

19

Gravely 00105684

KEY-IGN SERVICE ONLY
(Superseded to 02460700)

$10.99

$

In Stock, Qty 20+

0
