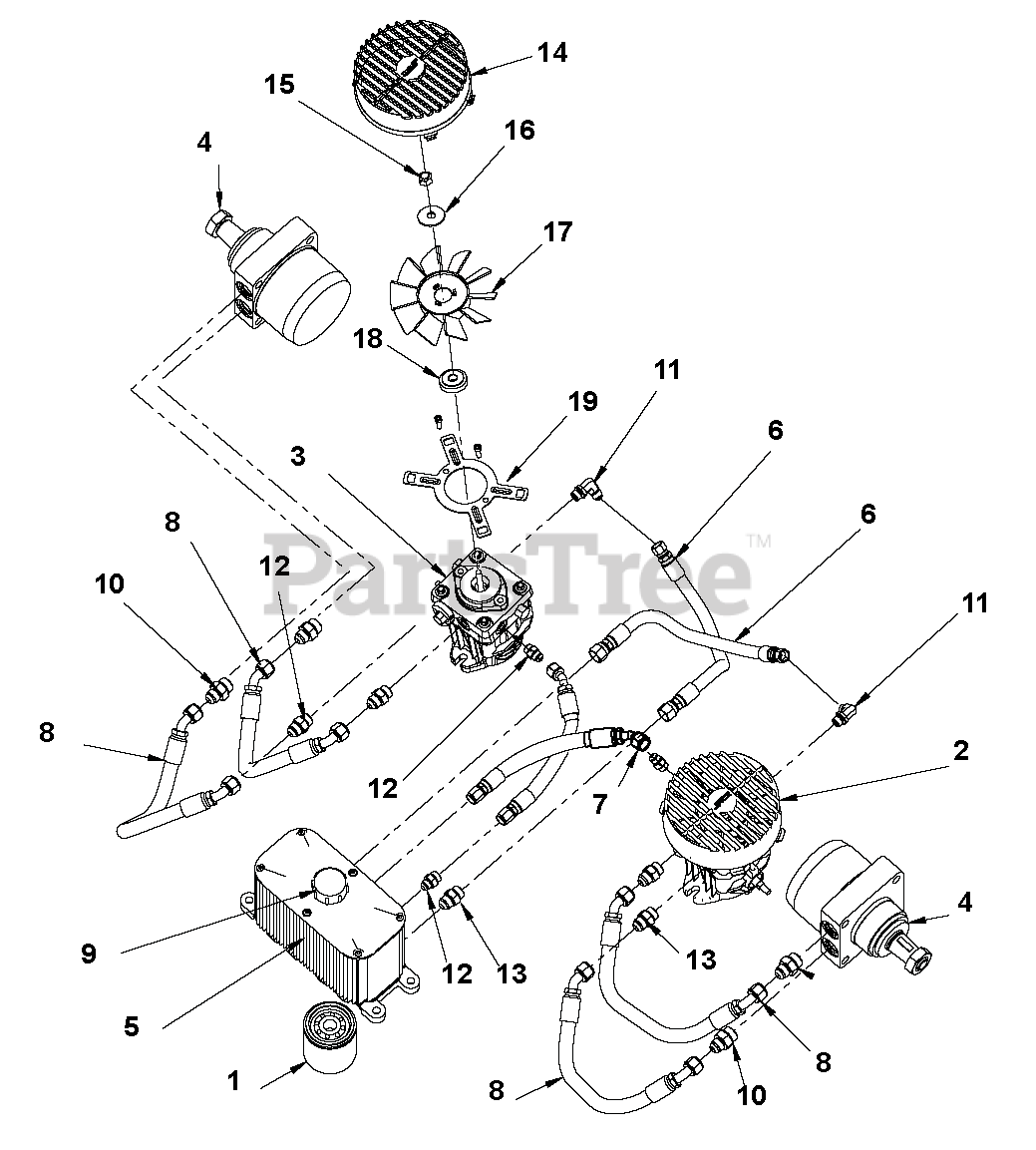

991402 (EZKA1948S) - EverRide Hornet 48" Zero-Turn Mower, 19hp Kawasaki (SN: 000101 - 009999) Hydraulics Parts Diagram

Hornet 48" Zero-Turn Mower, 19hp Kawasaki

Hydraulics Parts Diagram

  • Title

1

Gravely 00180909

FILTER, 25 MICRON

$56.99

$

Usually ships in 4-12 days

0

2

Gravely 00261600

PUMP, HYDRO LH

$1271.99

$

Usually ships in 4-12 days

0

3

Gravely 00273900

PUMP, HYDRO RH

$882.99

$

Usually ships in 4-12 days

0

4

Gravely 00191103

PARKER TJ WHEEL MOTOR TL195

$941.99

$

Usually ships in 4-12 days

0

5

Gravely 00191157

TANK, HYDRAULIC

$

$

Not available

6

Gravely 00191204

HOSE, HYD-6 -9FJIC -12FJIC 15

$26.99

$

Usually ships in 4-12 days

0

7

Gravely 00191205

HOSE, HYD--6 -9FJIC45 7

$46.99

$

Usually ships in 4-12 days

0

8

Gravely 00191206

HOSE, HYD-8 -12FJIC45 18

$

$

Not available

9

Gravely 00191600

ASSY,54"BLADE

$

$

Not available

10

Gravely 00231104

FTG, ADP 3/4-16MJICX7/8-14MOR

$

$

Not available

11

Gravely 00313270

FTG, 90 9/16 MOR X 9/16 MJIC

$9.99

$

Usually ships in 4-12 days

0

12

Gravely 00221285

FTG, ADP 9/16MORX9/16MJIC

$

$

Not available

13

Gravely 00313391

FTG, ADP 3/4-16MORX3/4-16MJIC

$

$

Not available

14

Gravely 00191620

SHROUD, HG PUMP S/O

$

$

Not available

15

Gravely 00964066

LOCKNUT, 3/8-24 CROWN Y
(Superseded to 06512300)

$3.99

$

Usually ships in 4-12 days

0

16

Gravely 00180995

WASHER, .375X1.25X.072 BLVL U

$10.99

$

Usually ships in 4-12 days

0

17

Gravely 00191621

FAN, HORNET PUMP S/O

$

$

Not available

18

Gravely 00180994

HUB, BDP16 FAN

$22.99

$

In Stock, only 2 left!

0

19

Gravely 00191622

PLATE, FAN SHROUD MOUNT S/O

$

$

Not available

20

Gravely 00191618

KIT, HORNET PG PUMP SEAL S/O

$

$

Not available

21

Gravely 00191619

KIT, HORN WHEEL MOTOR SEAL S/O

$

$

Not available
