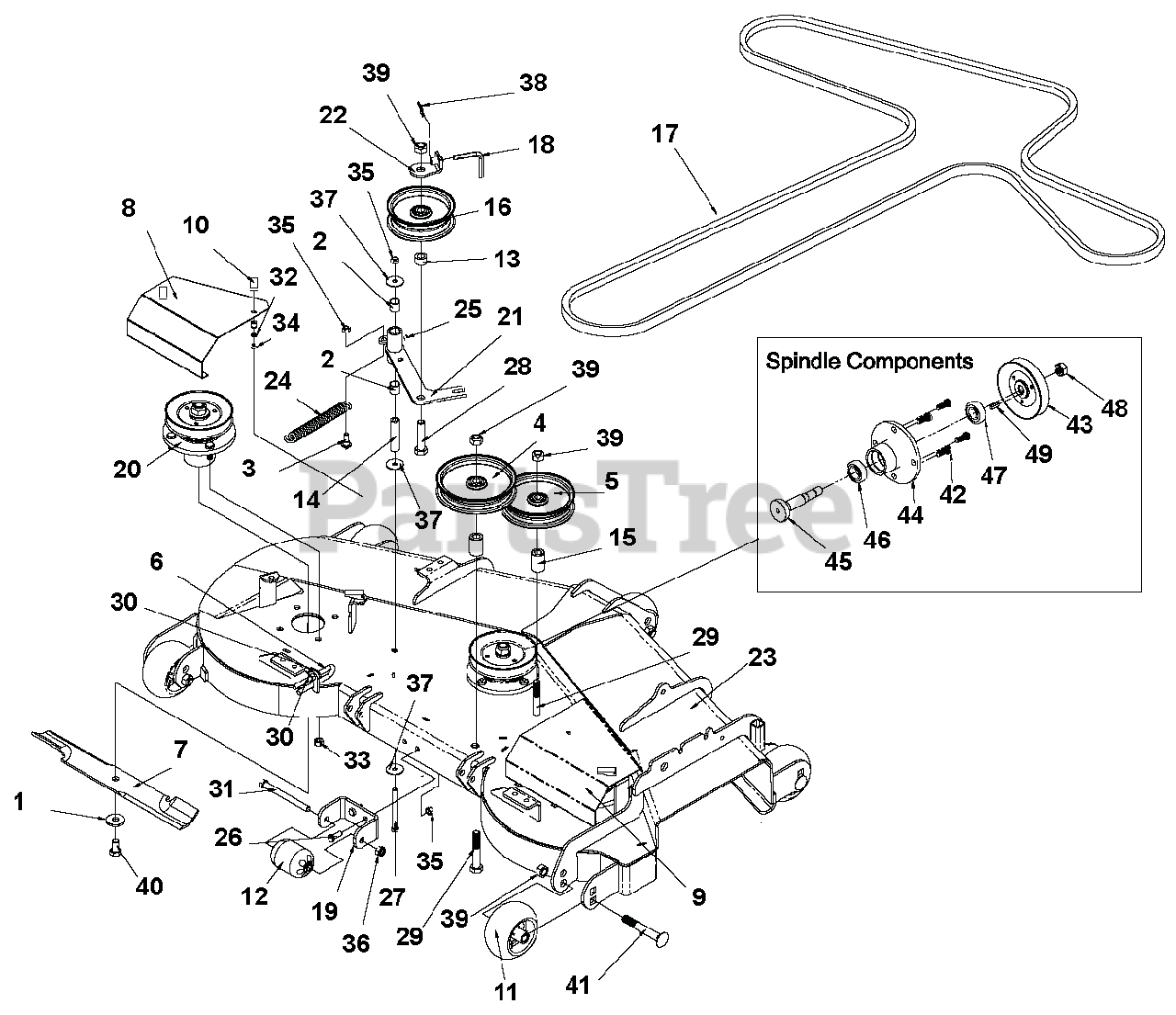

991402 (EZKA1948S) - EverRide Hornet 48" Zero-Turn Mower, 19hp Kawasaki (SN: 000101 - 009999) Mower Deck, Belt, And Idlers Parts Diagram

Hornet 48" Zero-Turn Mower, 19hp Kawasaki

Mower Deck, Belt, And Idlers Parts Diagram

  • Title

1

Gravely 00103906

WASHER, M14XM40XM4.5 FLAT Y

$9.99

$

In Stock, only 2 left!

0

2

Gravely 00105546

BRG, SLV .753X.878X.750

$7.49

$

In Stock, Qty 13

0

3

Gravely 00135139

BOLT, 1/2X1.06X3/8-16 SLD 5 Y
(Superseded to 07070119)

$3.99

$

Usually ships in 4-12 days

0

4

Gravely 00140280

PULLEY, FLAT 6.00X.635 W/BRG

$70.99

$

In Stock, only 3 left!

0

5

Gravely 00161955

PULLEY, FLAT 5.50X.635 W/BRG

$70.99

$

In Stock, only 3 left!

0

6

Gravely 00181194

U-BOLT, RD .63X4.50X3/8-16SP Y

$7.49

$

Usually ships in 4-12 days

0

7

Gravely 00191108

BLADE, 18.000 X 1.00 LIFT

Note: (400)

$

$

Not available

Gravely 00191107

BLADE, 16.500 X 1.00 LIFT

Note: (402)

$

$

Not available

8

Gravely 03848861

SHIELD, LH ZTM BELT (EVERRIDE)

$

$

Not available

9

Gravely 03848961

SHIELD, RH ZTM BELT (EVRIDE)

$

$

Not available

10

Gravely 00191165

LATCH, 12-24 SOUTHCO

$42.99

$

Usually ships in 4-12 days

0

11

Gravely 00191201

WHEEL, GAUGE 5.00 X 3.31

$21.99

$

Usually ships in 4-12 days

0

12

Gravely 00191226

WHEEL, GAUGE 2.56 X 3.94 SYM

$

$

Not available

13

Gravely 00191255

BUSHING, .688 X 1.13 X .625

$31.99

$

Usually ships in 4-12 days

0

14

Gravely 00191347

TUBE, RD .750 X .156 X 3.05

$21.99

$

In Stock, only 2 left!

0

15

Gravely 00191355

BUSHING, .688IDX 1.13 X 1.68L

$50.99

$

In Stock, only 1 left!

0

16

Gravely 00191374

PULLEY, FLAT 5.00X.635 W/BRG

$76.99

$

Usually ships in 4-12 days

0

17

Gravely 00192015

BELT, HB 148.0 OC AMD OHR

Note: (400)

$100.99

$

In Stock, Qty 6

0

Gravely 00191378

BELT, HB 140.9 EL AMD

Note: (402)

$

$

Not available

18

Gravely 00191837

BELT KEEPER, 90++ W/HOLE

$9.99

$

In Stock, only 4 left!

0

19

Gravely 00191486

BRACKET, ANTI-SCALP

$

$

Not available

20

Gravely AA191500

ASSY, SPINDLE BALL BRG

Note: (400)

$

$

Not available

Gravely 00191517

ASSY, SPINDLE BALL BRG

Note: (402)

$

$

Not available

21

Gravely 00191533

WLDT, DECK BELT TENSIONER

$184.99

$

Usually ships in 4-12 days

0

22

Gravely 00191537

WLDT, BELT KEEPER Y

$87.99

$

In Stock, only 1 left!

0

23

Gravely 03847600

52 EVRRIDE DECK W/DCALS

Note: (400)

$

$

Not available

Gravely 03847800

48 EVRRIDE DECK W/DCALS

Note: (402)

$

$

Not available

24

Gravely 00356473

SPRING, EXT .910X.177X6.15 Y

$40.99

$

Usually ships in 4-12 days

0

25

Gravely 00959994

FTG, 1/4-28 TPR 45 GREASE ZERK

$10.99

$

Usually ships in 4-12 days

0

26

Gravely 00960046

BOLT, 3/8-16X1.00 HEX 5 Y
(Superseded to 05948700)

$1.99

$

In Stock, Qty 20+

0

27

Gravely 00960058

BOLT, 3/8-16X4.00 HEX 5 Y
(Superseded to 05965400)

$3.99

$

In Stock, only 1 left!

0

28

Gravely 00960160

BOLT, 5/8-11X2.75 HEX 5 Y
(Superseded to 05901635)

$3.99

$

Usually ships in 4-12 days

0

29

Gravely 00960163

BOLT, 5/8-11X3.50 HEX 5 Y
(Superseded to 05982900)

$9.99

$

Usually ships in 4-12 days

0

30

Gravely 00960502

NUT, 3/8-16 STD HEX GR5 Y

$

$

Not available

31

Gravely 00961343

BOLT, M12X1.75X130 HEX 8.8 Y

$

$

Not available

32

Gravely 00961701

WASHER, M6 REG FLAT Y
(Superseded to 06449100)

$

$

Not available

33

Gravely 00964005

NUT, 7/16-20 HEX GR5 Y
(Superseded to 06500434)

$4.99

$

In Stock, only 3 left!

0

34

Gravely 00964014

LOCKNUT, 12-24 NYLOC Y
(Superseded to 06511200)

$4.99

$

Usually ships in 4-12 days

0

35

Gravely 00964022

LOCKNUT, 3/8-16 CROWN Y

$

$

Not available

36

Gravely 00964044

LOCKNUT, M12X1.75 NYLOC Y
(Superseded to 06542500)

$4.99

$

Usually ships in 4-12 days

0

37

Gravely 00964502

WASHER, .375X1.50X.063 FLAT Y
(Superseded to 06439300)

$3.49

$

In Stock, Qty 13

0

38

Gravely 00967356

RING, RUE .625 X .072 X 1.690

$3.99

$

In Stock, only 2 left!

0

39

Gravely 00967392

LOCKNUT, 5/8-11 CROWN Y
(Superseded to 06518700)

$4.99

$

In Stock, Qty 10

0

40

Gravely 00967397

BOLT, 9/16-12X1.00 HEX 8 Y
(Superseded to 05985500)

$3.99

$

Usually ships in 4-12 days

0

41

Gravely 00968088

BOLT, 5/8-11X4.50 CRG Y
(Superseded to 06200148)

$

$

Not available

42

Gravely 00145561

BOLT, 7/16-20X1.22 SPC 5 Y

$15.99

$

Usually ships in 4-12 days

0

43

Gravely 00180780

PULLEY, V-BELT 5.75X.750 W/KEY

Note: (400)

$87.99

$

In Stock, only 2 left!

0

Gravely 00144579

PULLEY, V-BELT 5.38X.750 W/KEY

Note: (402)

$81.99

$

Usually ships in 4-12 days

0

44

Gravely 00191013

SPINDLE, MACHINED BALL BRG

$271.99

$

Usually ships in 4-12 days

0

45

Gravely 00191014

SHAFT, BLADE SPINDLE

$

$

Not available

46

Gravely 00149230

BRG, BAL .984X2.05X.591 - 6205
(Superseded to 00191155)

$23.99

$

In Stock, Qty 6

0

47

Gravely 00103977

BRG, BAL .787X2.05X.591
(Superseded to 00191156)

Note: (402)

$23.99

$

In Stock, only 2 left!

0

48

Gravely 00964024

LOCKNUT, 3/4-16 CROWN PL
(Superseded to 06500031)

$3.99

$

In Stock, Qty 18

0

49

Gravely 00966045

KEY, .250 X .250 X 1.00 SQ

$3.49

$

In Stock, Qty 14

0
