991402 (EZKA1948S) - EverRide Hornet 48" Zero-Turn Mower, 19hp Kawasaki (SN: 010000 & Above) Front Wheel Parts Diagram

Hornet 48" Zero-Turn Mower, 19hp Kawasaki

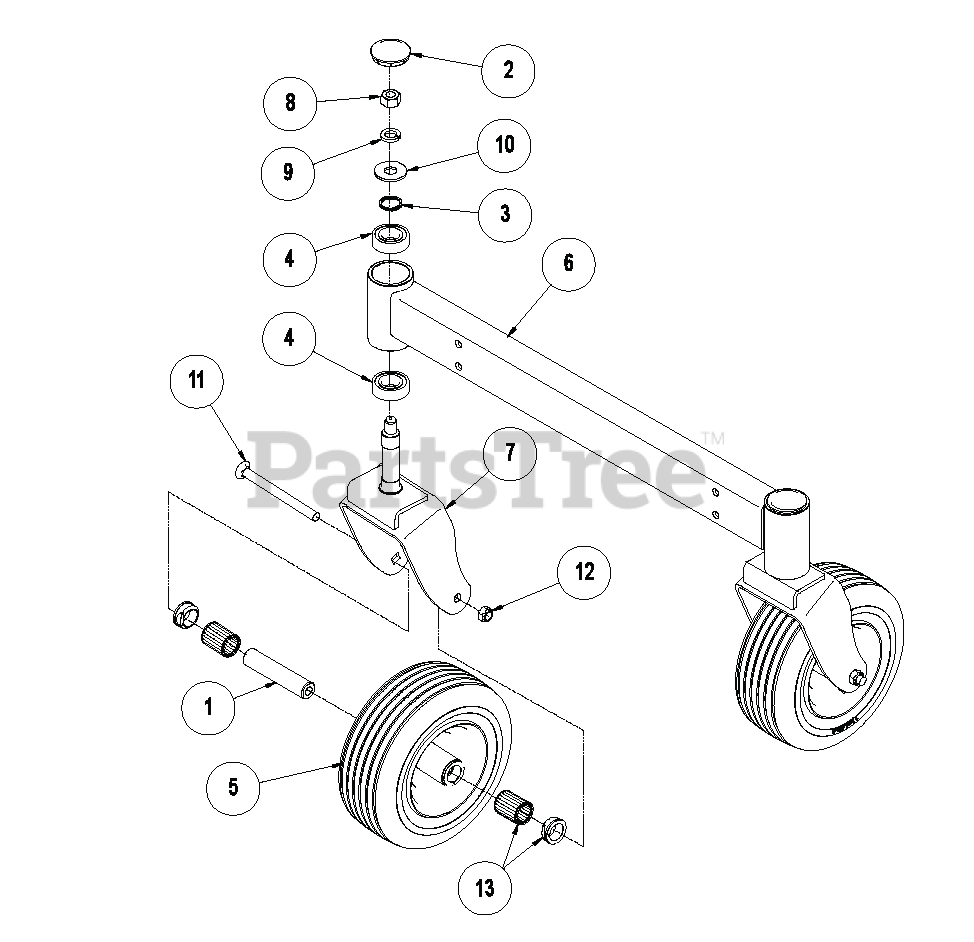

Front Wheel Parts Diagram

  • Title

1

Ariens 00191049

TUBE, RD 1.00X.500X4.76

$52.99

$

In Stock, only 4 left!

0

2

Ariens 00191052

CAP, DUST 2.14

$

$

Not available

3

Ariens 191100

WASHER, WAVE 1.0 SHAFT 1.25 BORE

$

$

Not available

4

Ariens 00149230

BRG, BAL .984X2.05X.591 - 6205
(Superseded to 00191155)

$23.99

$

In Stock, only 2 left!

0

5

Ariens 00191283

ASSY, TIRE&RIM-11 X4 X5W/R BRG

$

$

Not available

6

Ariens 00191525

WLDT, FRONT AXLE MINI-Z

$

$

Not available

7

Ariens 00191575

WLDT, FR WHEEL FORK

$

$

Not available

8

Ariens 00960505

NUT, 5/8-11 STD HEX GR5 Y
(Superseded to 06535600)

$2.99

$

Usually ships in 4-12 days

0

9

Ariens 00960605

WASHER, .625 MED SPRG LOCK Y
(Superseded to 06309500)

$2.49

$

Usually ships in 4-12 days

0

10

Ariens 00960705

WASHER, .625 REG FLAT Y
(Superseded to 06442900)

$1.49

$

In Stock, only 4 left!

0

11

Ariens 00963011

BOLT, 1/2-13X6.00 CRG Y
(Superseded to 06223400)

$10.99

$

In Stock, Qty 12

0

12

Ariens 964000

LOCKNUT, 1/2-13 CROWN

$

$

Not available

13

Ariens 00191604

KIT, BRG - 1.00 X 4.75 HUB S/O

$52.99

$

In Stock, only 2 left!

0
