991590 - Ariens Apex Limited Edition 60" Zero-Turn Mower, 24hp Kawasaki FR (SN: 095000 & Above) Clutch Parts Diagram
Apex Limited Edition 60" Zero-Turn Mower, 24hp Kawasaki FR

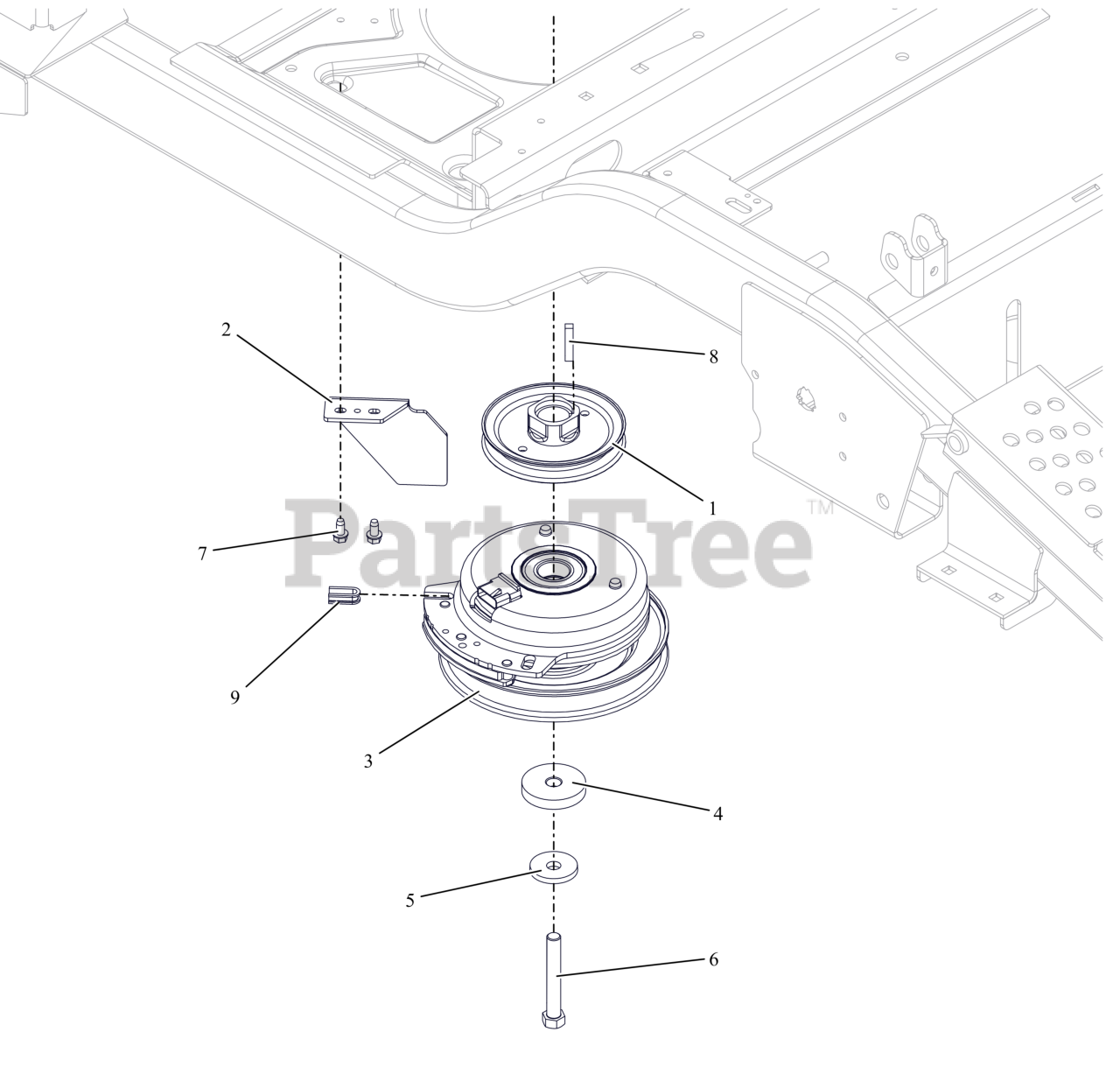

Clutch Parts Diagram
Ariens 07346400
PULLEY, 4.50 OD X 1.003 ENGINE
$39.99
$
Usually ships in 4-12 days
Ariens 09449951
BRKT, CLUTCH
$15.99
$
Usually ships in 4-12 days
Ariens 09444200
CLUTCH, WARNER 1.00 HD,PTZ
$219.99
$
Usually ships in 4-12 days
Ariens 05501240
SPACER, .474/.459X2.00X.350
$14.99
$
In Stock, only 2 left!
Ariens 06400936
WASHER, 7/16" SPRING DISK
$11.99
$
Usually ships in 4-12 days
Ariens 05901819
BLT, HEX .44-20X3.00 G8 ZCC NT
$5.99
$
Usually ships in 4-12 days
Ariens 07400122
SCR-TAP .25-20X.50 HWH ZCC
$0.99
$
In Stock, Qty 20+
Ariens 06603400
KEY-SQ .25 X 1.25 X .25 SAE
$3.99
$
In Stock, only 1 left!
Ariens 30145600
BSHG, CLUTCH
$1.49
$
Usually ships in 4-12 days
