991590 - Ariens Apex Limited Edition 60" Zero-Turn Mower, 24hp Kawasaki FR (SN: 095000 & Above) Engine Guard and Fenders Parts Diagram

Apex Limited Edition 60" Zero-Turn Mower, 24hp Kawasaki FR

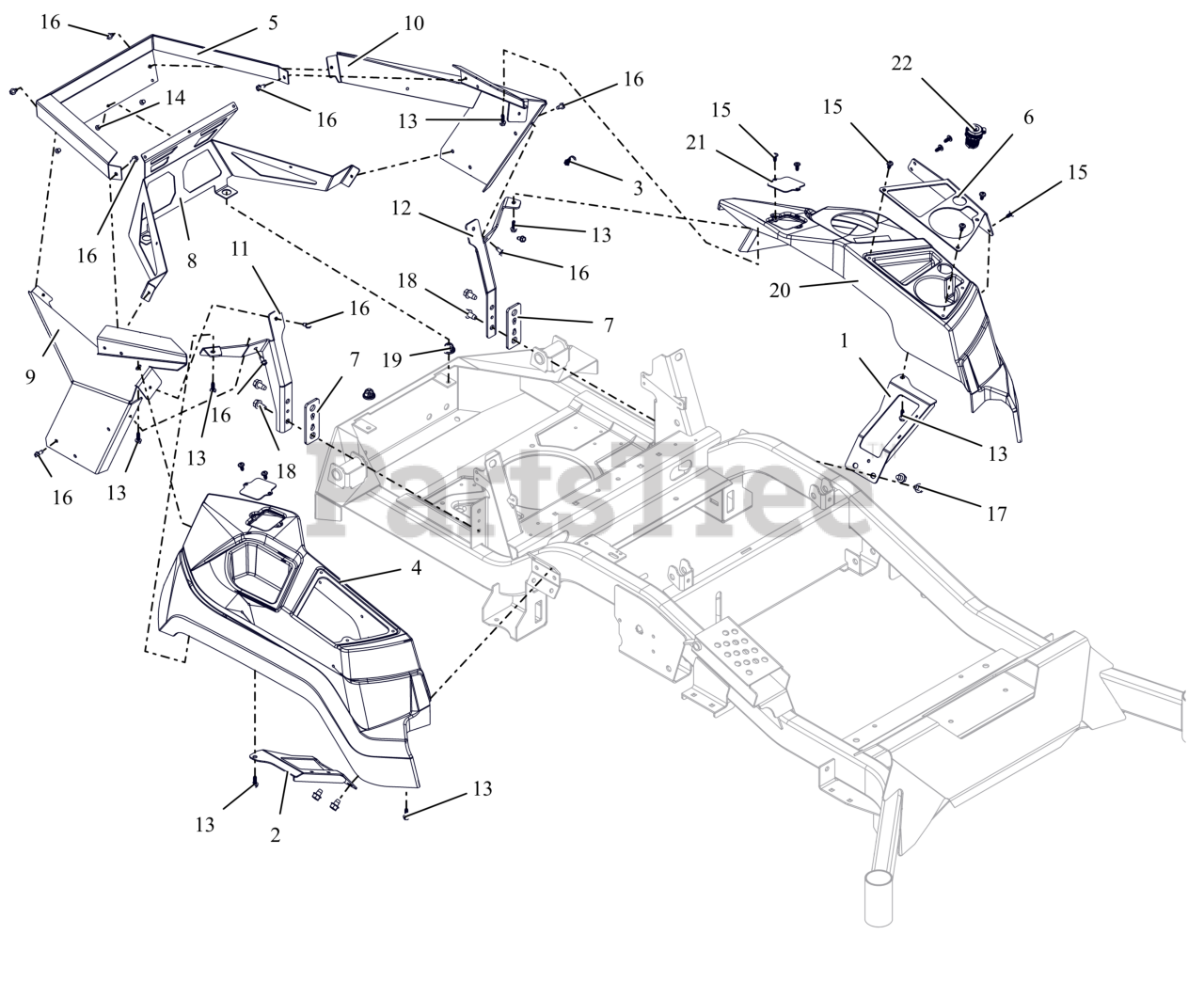

Engine Guard and Fenders Parts Diagram

  • Title

1

Ariens 05095151

WLDMT, LH FENDER MOUNT

$20.99

$

Usually ships in 4-12 days

0

2

Ariens 05105151

WLDMT, RH FENDER MOUNT

$23.99

$

Usually ships in 4-12 days

0

3

Ariens 04451600

CLIP, CABLE GUIDE

$2.49

$

In Stock, only 2 left!

0

4

Ariens 05100400

FENDER, RH APEX - 2017

$59.99

$

Usually ships in 4-12 days

0

5

Ariens 05103541

GUARD- ENGINE WRAP

$31.99

$

Usually ships in 4-12 days

0

6

Ariens 30186359

PLATE-APEX CUP HLDR W/USB(ORG)

$24.99

$

Usually ships in 4-12 days

0

7

Ariens 05117441

PLATE- CONTROL PANEL SPACER

$7.49

$

Usually ships in 4-12 days

0

8

Ariens 05196751

GUARD, ENGINE

$30.99

$

Usually ships in 4-12 days

0

9

Ariens 05196841

PANEL- RH REAR FENDER MOUNT

$55.99

$

Usually ships in 4-12 days

0

10

Ariens 05196941

PANEL- LH REAR FENDER MOUNT

$55.99

$

Usually ships in 4-12 days

0

11

Ariens 05244441

BRKT- RH FENDER MOUNT

$35.99

$

Usually ships in 4-12 days

0

12

Ariens 05244541

BRKT- LH FENDER MOUNT

$34.99

$

Usually ships in 4-12 days

0

13

Ariens 06100231

SCR, PLASTITE .25-10X.75 ZCC

$1.99

$

In Stock, Qty 6

0

14

Ariens 06800120

RIVET, .1875 AL/AL .126-.250

$1.99

$

Usually ships in 4-12 days

0

15

Ariens 07400123

SCR-PAN .25-15X.50 6L H/LZB500

$2.99

$

In Stock, only 3 left!

0

16

Ariens 07400210

SCR-TAP .25X.50 HWH ZB500

$3.49

$

In Stock, only 1 left!

0

17

Ariens 07400126

SCR,TAP .375-16X.50 HWH TR ZCC

$1.99

$

In Stock, Qty 18

0

18

Ariens 07400129

SCR,TAP .375-16X.75 HWH TR ZCC

$1.99

$

In Stock, Qty 20+

0

19

Ariens 07500407

GROMMET, 10MM BOLLHOFF

$6.49

$

In Stock, Qty 20+

0

20

Ariens 59113800

FENDER, LH APEX

$79.99

$

In Stock, only 2 left!

0

21

Ariens 05078051

PLATE, ROPS HOLE-HD

$21.99

$

Usually ships in 4-12 days

0

22

Ariens 30145700

USB, DUAL PORT USB-C, 12V BLK

$50.99

$

Usually ships in 4-12 days

0
