991590 - Ariens Apex Limited Edition 60" Zero-Turn Mower, 24hp Kawasaki FR (SN: 095000 & Above) Engine - Kawasaki FR730 Parts Diagram

Apex Limited Edition 60" Zero-Turn Mower, 24hp Kawasaki FR

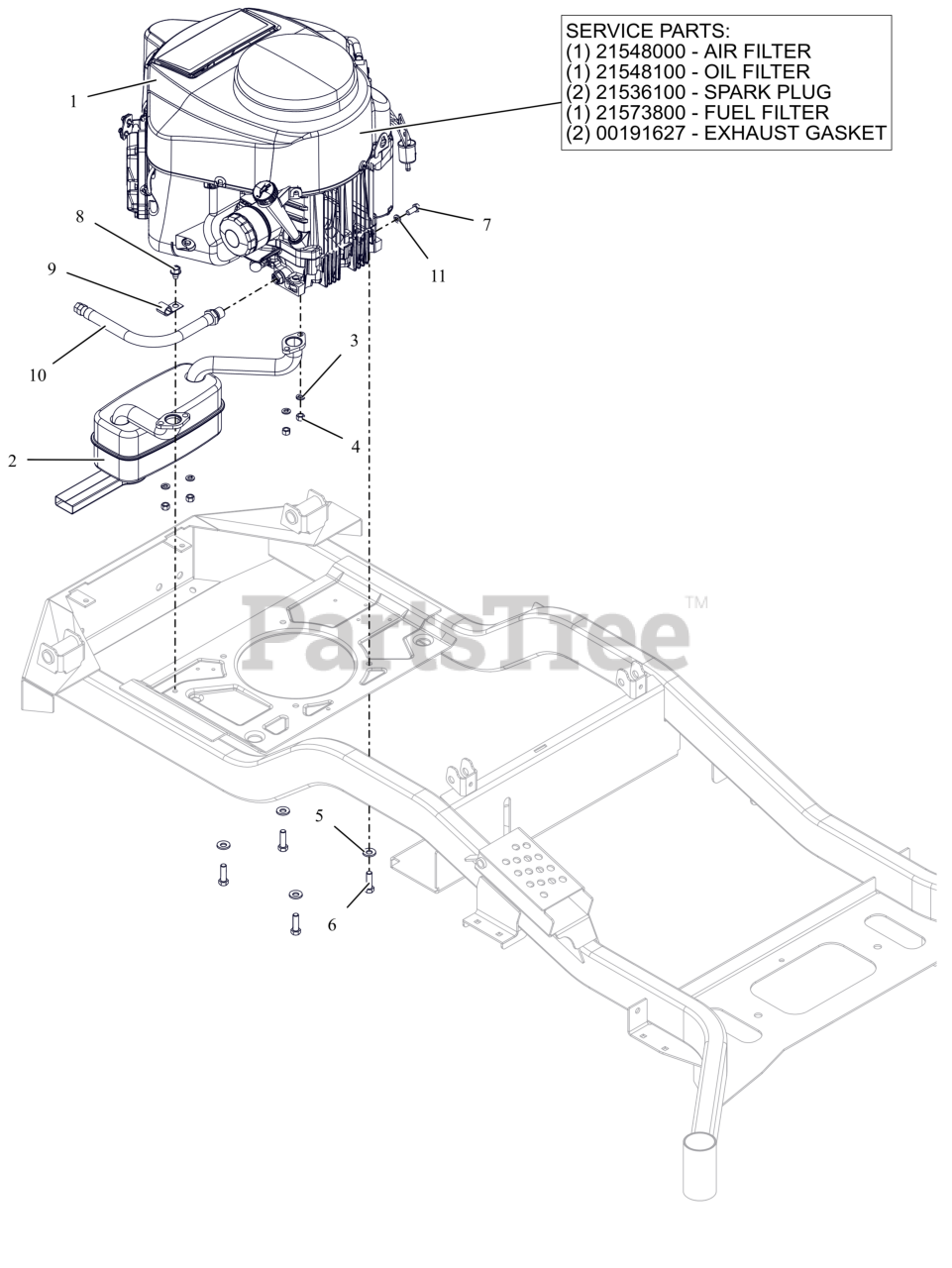

Engine - Kawasaki FR730 Parts Diagram

  • Title

1

Ariens 08200718

ENGINE, KAWASAKI FR730 24HP

$

$

Not available

1

Ariens 21548000

AIR FILTER, KAWASAKI FR

Note: Component Service Part

$17.99

$

In Stock, Qty 20+

0

1

Ariens 21548100

OIL FILTER, KAWASAKI FR
(Superseded to 49065-0721)

Note: Component Service Part

$18.99

$

In Stock, Qty 20+

0

1

Ariens 21536100

PLUG, SPARK

Note: Component Service Part

$3.49

$

In Stock, Qty 20+

0

1

Ariens 21573800

FUEL FILTER-KAWASAKI FR

Note: Component Service Part

$12.99

$

In Stock, Qty 8

0

1

Ariens 00191627

GASKET, MUFFLER S/O

Note: Component Service Part

$7.99

$

In Stock, only 2 left!

0

2

Ariens 04754300

MUFFLER, KAWASAKI

$96.99

$

In Stock, only 1 left!

0

3

Ariens 06300119

WSHR,LK-REG .312X.078 ZCC

$0.99

$

In Stock, Qty 20+

0

4

Ariens 06500919

NUT-LK-TOP-FLG M8 ZCC

$2.49

$

In Stock, Qty 18

0

5

Ariens 06400927

WASHER, 3/8" SPRING DISC

$3.49

$

Usually ships in 4-12 days

0

6

Ariens 05901808

BLT, HEX .38-16X1.25 G5 ZCC NT

$1.99

$

In Stock, only 3 left!

0

7

Ariens 05901628

BLT, HEX M8-1.25X20 G8.8 ZCC

$1.49

$

Usually ships in 4-12 days

0

8

Ariens 07400126

SCR,TAP .375-16X.50 HWH TR ZCC

$1.49

$

In Stock, only 4 left!

0

9

Ariens 06916000

J-CLAMP

$2.49

$

Usually ships in 4-12 days

0

10

Ariens 07001730

HOSE, OIL DRAIN

$19.99

$

Usually ships in 4-12 days

0

11

Ariens 06300119

WSHR,LK-REG .312X.078 ZCC

$0.99

$

In Stock, Qty 20+

0
