991590 - Ariens Apex Limited Edition 60" Zero-Turn Mower, 24hp Kawasaki FR (SN: 095000 & Above) Font Caster Wheels Parts Diagram

Apex Limited Edition 60" Zero-Turn Mower, 24hp Kawasaki FR

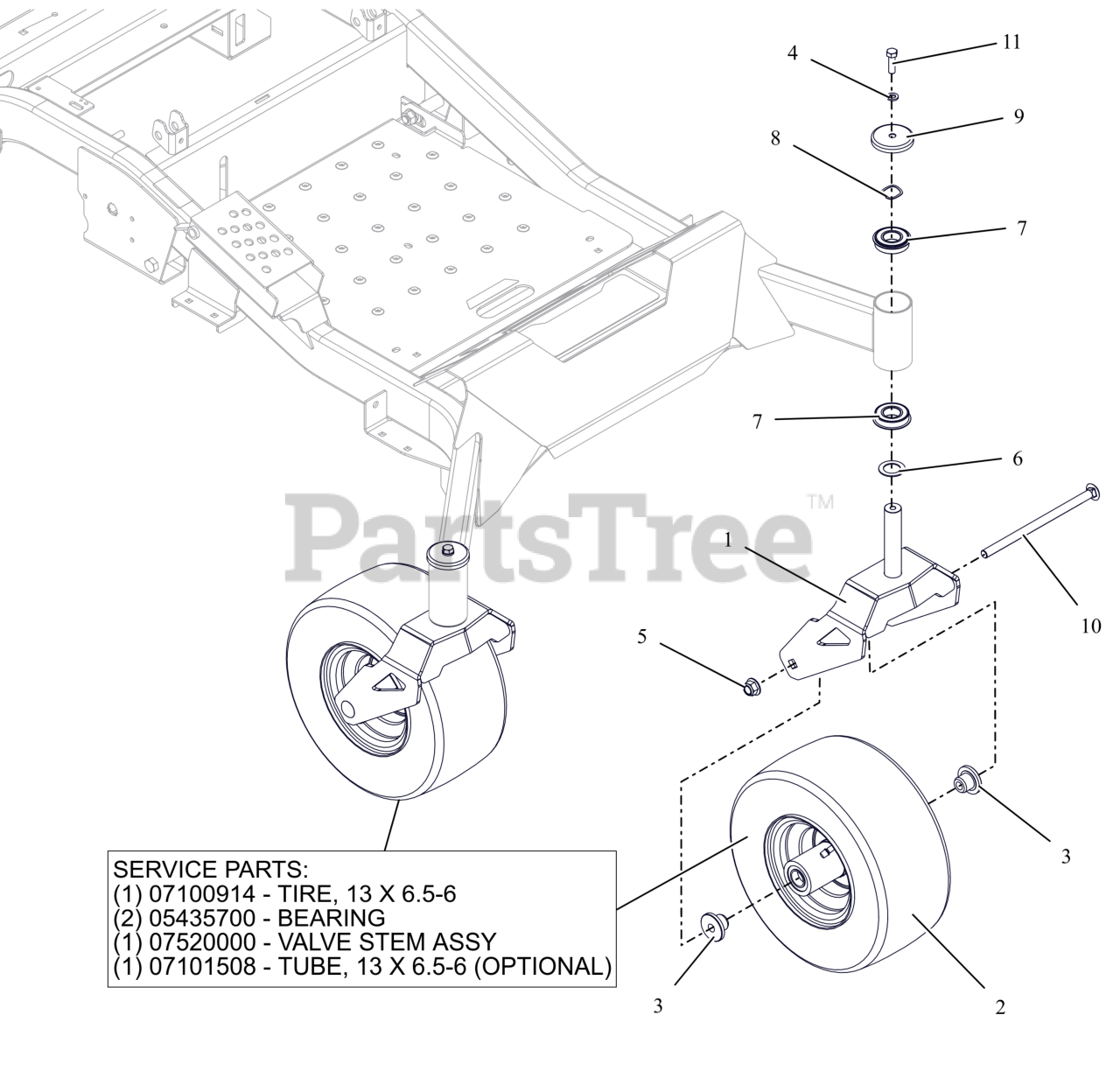

Font Caster Wheels Parts Diagram

  • Title

1

Ariens 09187041

WLDMT- CASTER FORK

$86.99

$

Usually ships in 4-12 days

0

2

Ariens 07101515

ASM, TIRE/WHEEL 13 X 6.50-6 BLK RIM

$124.99

$

In Stock, only 1 left!

0

2

Ariens 07100914

LAWN TIRE FRONT, 13X6.50-6 SMOOTH

Note: Component Service Part

$76.99

$

In Stock, only 4 left!

0

2

Ariens 05435700

BRG, 25MM ID X 52MM OD X 15MM

Note: Component Service Part

$26.99

$

In Stock, Qty 20+

0

2

Ariens 07520000

VALVE STEM ASS'Y

Note: Component Service Part

$3.49

$

In Stock, only 1 left!

0

2

Ariens 07101508

TIRE TUBE, 13/6.5-6 4 PLY TR87 90 BENT VALVE

Note: Component Service Part

$34.99

$

Usually ships in 4-12 days

0

3

Ariens 00675300

SPACER, FRONT WHEEL

$9.99

$

In Stock, Qty 20+

0

4

Ariens 06300130

WSHR-LK-REG .375X.094 ZB500

$2.49

$

In Stock, Qty 9

0

5

Ariens 06500810

NUT,NYL-FLG .50-13 GF ZCC

$2.99

$

In Stock, Qty 20+

0

6

Ariens 06416600

WSHR-HRD-THRS 1.007X1.542X.062

$4.99

$

In Stock, Qty 20+

0

7

Ariens 05400728

BEARING, BALL -2.000 OD X 1.000 ID X .5625 W/RING

$14.99

$

In Stock, Qty 20+

0

8

Ariens 06401030

WSHR-WAVE 1.0X1.25X.028 .145FH

$6.99

$

In Stock, Qty 20+

0

9

Ariens 09692800

SHIELD, AXLE BEARING

$7.99

$

Usually ships in 4-12 days

0

10

Ariens 06200510

BLT-RHSN .50-13X9.00 G5 ZCC NS

$9.49

$

In Stock, Qty 20+

0

11

Ariens 05902203

BLT- HEX .38-16X1.25 G5 ZB500

$3.49

$

Usually ships in 4-12 days

0
