991590 - Ariens Apex Limited Edition 60" Zero-Turn Mower, 24hp Kawasaki FR (SN: 095000 & Above) Frame Parts Diagram

Apex Limited Edition 60" Zero-Turn Mower, 24hp Kawasaki FR

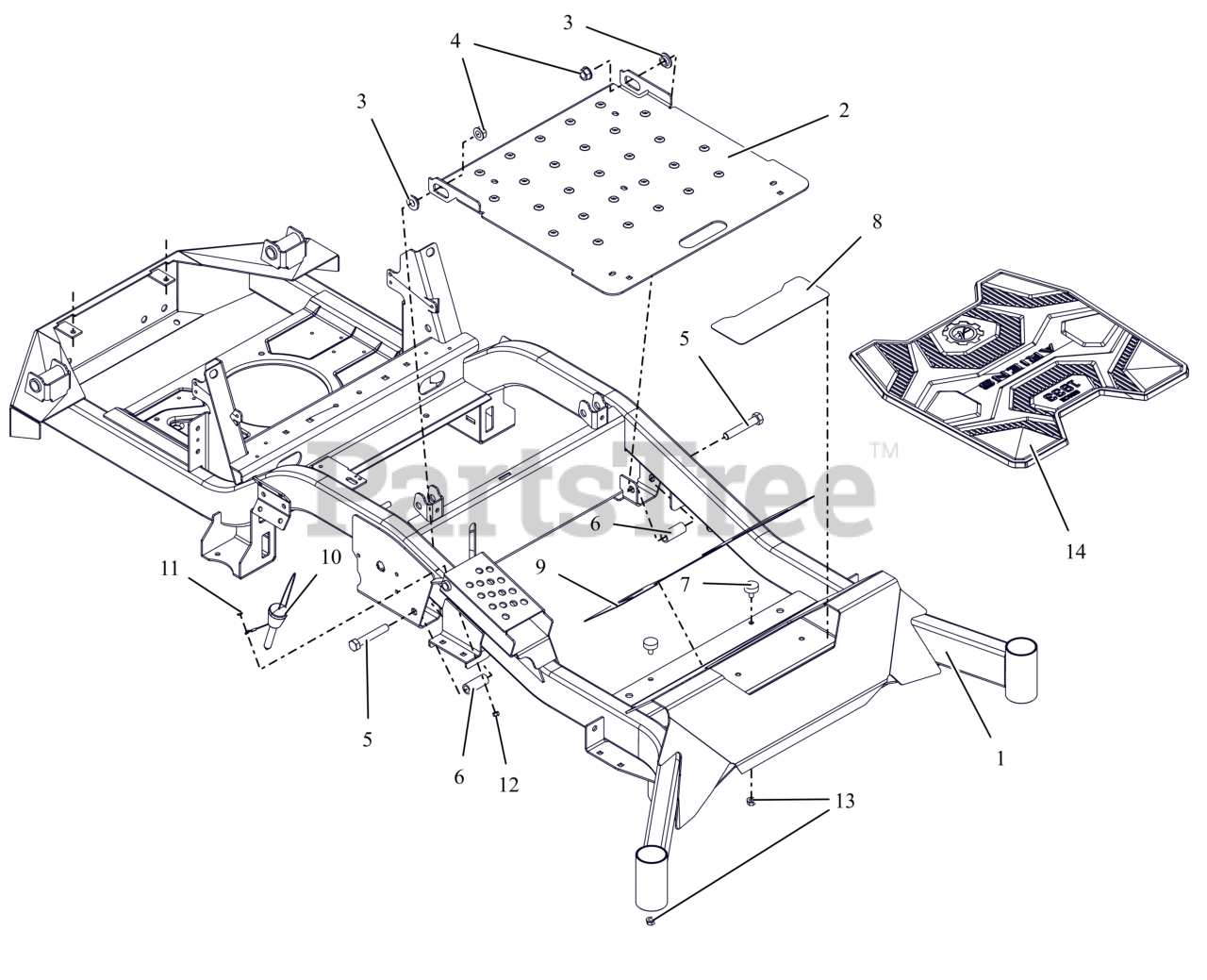

Frame Parts Diagram

  • Title

1

Ariens 59119900

APEX LE 60" FRAME W/DECALS

$1318.99

$

Usually ships in 0 days

0

2

Ariens 59120000

KIT,ACCESS PANEL W/DECALS-GRY

$75.99

$

Usually ships in 0 days

0

3

Ariens 03989100

BSHG-FLG .515X.750X.395X1.120

$3.99

$

In Stock, Qty 15

0

4

Ariens 06500907

NUT-LK-TOP-FLG .500-13 GF ZCC

$1.99

$

In Stock, Qty 20+

0

5

Ariens 05901737

BLT, HEX .50-13X3.00 G5 ZCC

$5.49

$

In Stock, Qty 6

0

6

Ariens 05501319

SPACER, .515X.75X1.83

$5.49

$

Usually ships in 4-12 days

0

7

Ariens 07533600

BUMPER, RUBBER

$12.99

$

In Stock, only 2 left!

0

8

Ariens 05109100

GRIP, STEP

$9.99

$

Usually ships in 4-12 days

0

9

Ariens 05104800

GRIP, FRONT

$18.99

$

Usually ships in 4-12 days

0

10

Ariens 06800218

PIN- MAGNETIC .50X2.70

$25.99

$

In Stock, only 1 left!

0

11

Ariens 07001918

POST, & SCREW, PUSH LOCK .25 X .25

$3.99

$

Usually ships in 4-12 days

0

12

Ariens 06500915

NUT-LK-NYL #10-24 G2 ZCC

$0.99

$

In Stock, Qty 20+

0

13

Ariens 06500815

NUT,SPNLK-FLG .31-18 G5 ZCC

$1.99

$

In Stock, Qty 20+

0

14

Ariens 30179000

FLOOR MAT- RUBBER ARIENS

$99.99

$

Usually ships in 4-12 days

0
