991590 - Ariens Apex Limited Edition 60" Zero-Turn Mower, 24hp Kawasaki FR (SN: 095000 & Above) Fuel System - Kawasaki Parts Diagram

Apex Limited Edition 60" Zero-Turn Mower, 24hp Kawasaki FR

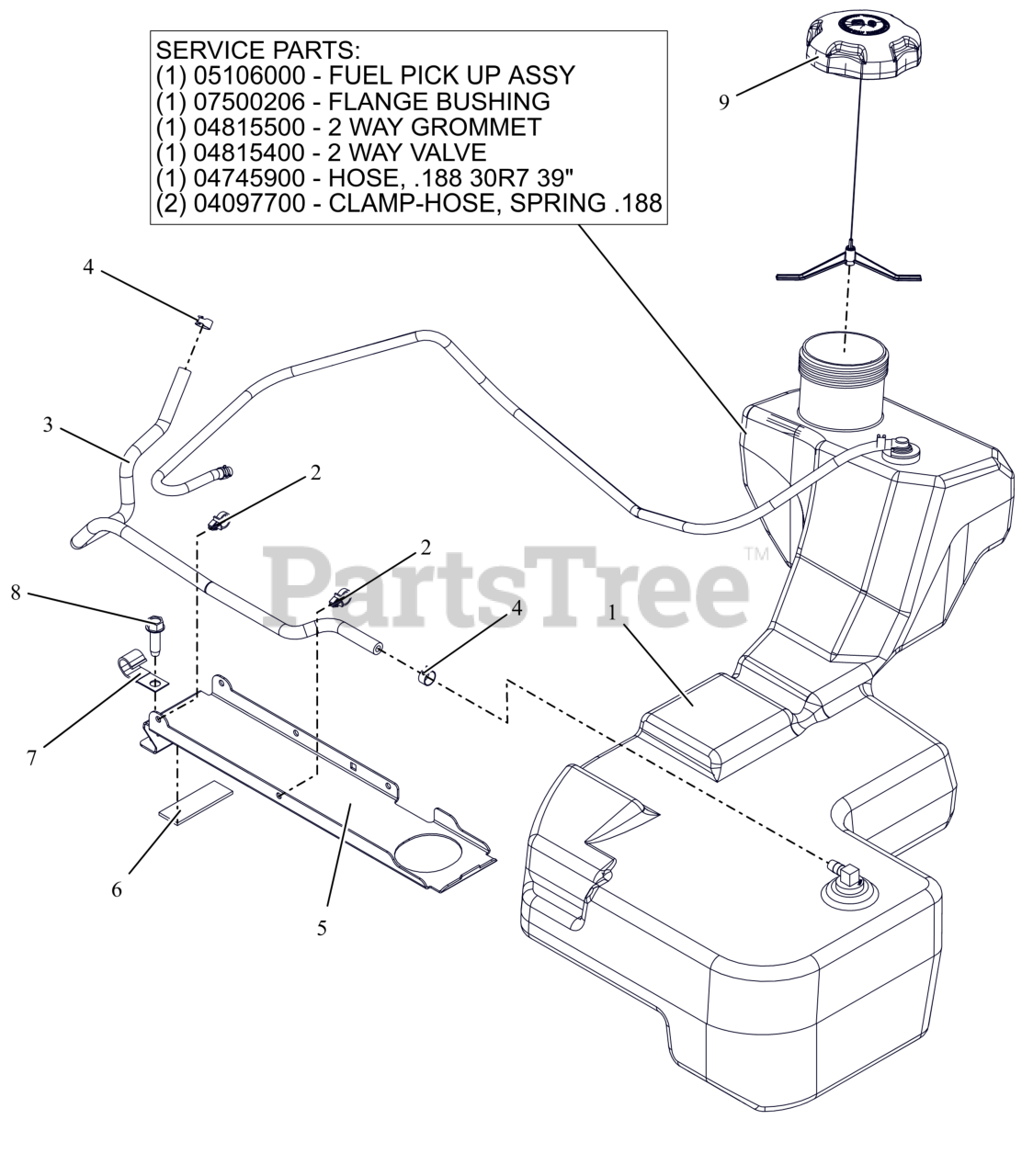

Fuel System - Kawasaki Parts Diagram

  • Title

1

Ariens 09167300

ASM, FUEL TANK-HD

$262.99

$

In Stock, only 3 left!

0

1

Ariens 05106000

ASM, HD FUEL PICK-UP

Note: Component Service Part

$60.99

$

In Stock, Qty 9

0

1

Ariens 07500206

BSHG-FLG .375X1.062X.625 NITR

Note: Component Service Part

$3.49

$

In Stock, Qty 20+

0

1

Ariens 04815500

GROMMET, 2-WAY
(Superseded to 04082700)

Note: Component Service Part

$4.99

$

In Stock, Qty 20+

0

1

Ariens 04815400

VALVE, 2-WAY

Note: Component Service Part

$20.99

$

In Stock, only 4 left!

0

1

Ariens 04745900

HOSE, .188 30R7 BULK, SOLD BY THE INCH

Note: Component Service Part

$1.99

$

Usually ships in 4-12 days

0

1

Ariens 04097700

CLAMP-HOSE, SPRING .188

Note: Component Service Part

$2.49

$

In Stock, Qty 5

0

2

Ariens 00367900

ROUTING CLIP (1/2" ID)

$2.49

$

In Stock, Qty 5

0

3

Ariens 03278100

HOSE, .25 LOW-PERM BULK GAS, SOLD BY THE INCH

$1.99

$

In Stock, Qty 20+

0

4

Ariens 03278800

CLAMP, FUEL LINE

$1.99

$

In Stock, Qty 20+

0

5

Ariens 05024151

BRKT, FUEL TANK HOLD DOWN

$22.99

$

Usually ships in 4-12 days

0

6

Ariens 04850000

PAD,RBR 1.0"X3.0" W/ADHESIVE

$3.49

$

In Stock, only 2 left!

0

7

Ariens 06916000

J-CLAMP

$3.49

$

Usually ships in 4-12 days

0

8

Ariens 07400128

SCR,TAP .375-16X1.25HWH TR ZCC

$3.99

$

In Stock, Qty 15

0

9

Ariens 09190300

CAP, FUEL - 3.50 RATCHET INLET VENT

$36.99

$

In Stock, Qty 10

0
