991590 - Ariens Apex Limited Edition 60" Zero-Turn Mower, 24hp Kawasaki FR (SN: 095000 & Above) Seat Parts Diagram

Apex Limited Edition 60" Zero-Turn Mower, 24hp Kawasaki FR

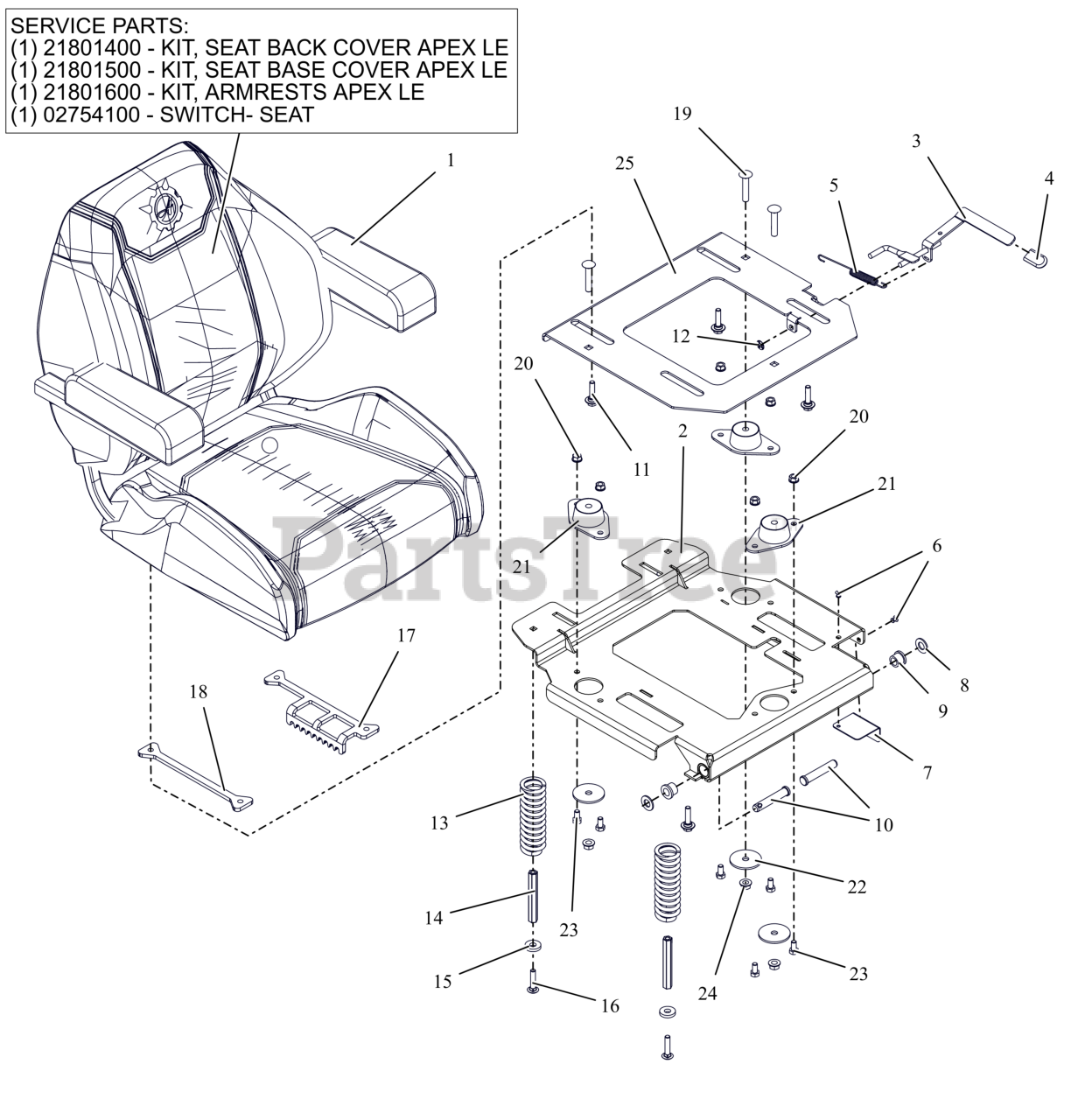

Seat Parts Diagram

  • Title

1

Ariens 30181600

SEAT- APEX LE

$555.99

$

Usually ships in 4-12 days

0

1

Ariens 21801400

KIT- SEAT BACK COVER APEX LE

Note: Component Service Part

$96.99

$

Usually ships in 4-12 days

0

1

Ariens 21801500

KIT- SEAT BASE COVER APEX LE

Note: Component Service Part

$96.99

$

Usually ships in 4-12 days

0

1

Ariens 21801600

KIT- ARMRESTS APEX LE

Note: Component Service Part

$232.99

$

Usually ships in 4-12 days

0

1

Ariens 02754100

SWITCH- SNAP MTG N.O.

Note: Component Service Part

$9.49

$

In Stock, Qty 15

0

2

Ariens 30135941

WLDMT- ISO MTG PLATE 3 PT

$129.99

$

Usually ships in 4-12 days

0

3

Ariens 05015251

WLDMT, SEAT SLIDE LEVER

$24.99

$

Usually ships in 4-12 days

0

4

Ariens 04396600

GRIP, SEAT LEVER, GREY

$2.99

$

Usually ships in 4-12 days

0

5

Ariens 08300022

SG-TENS .06X.482X5.35

$5.99

$

In Stock, Qty 18

0

6

Ariens 06800120

RIVET, .1875 AL/AL .126-.250

$1.49

$

Usually ships in 4-12 days

0

7

Ariens 05265541

GUARD- SEAT

$11.99

$

Usually ships in 4-12 days

0

8

Ariens 06443300

WSHR-FL-NYL .518X1.000X.080

$0.99

$

In Stock, only 4 left!

0

9

Ariens 05500901

BSHG, FLG .516X.750X.625X.937

$5.99

$

Usually ships in 4-12 days

0

10

Ariens 06800202

PIN-CLIC .50X2.70X2.31 -ZCC

$5.99

$

In Stock, only 1 left!

0

11

Ariens 07001929

BOLT SHLDR .31-18 X .175

$2.49

$

In Stock, only 3 left!

0

12

Ariens 06514900

NUT-PUSH .312

$0.99

$

In Stock, Qty 11

0

13

Ariens 08300704

SPRING, COMPRESSION SEAT 224LB

$17.99

$

Usually ships in 4-12 days

0

14

Ariens 06500828

NUT, COUPLING 5/16X18 X 3.75

$12.99

$

In Stock, only 2 left!

0

15

Ariens 06401108

WSHR, FLT .406X1.00X.188 ZCC

$2.49

$

In Stock, Qty 19

0

16

Ariens 06200233

BLT,RHSN .31-18X1.50 G5 ZCC

$1.49

$

In Stock, Qty 9

0

17

Ariens 09363551

PLATE, SEAT ADJ (BLACK)

$27.99

$

Usually ships in 4-12 days

0

18

Ariens 09363451

PLATE, ADJ SEAT SLIDE (BLACK)

$12.99

$

Usually ships in 4-12 days

0

19

Ariens 06200323

BLT,RHSSN.375-16X2.00 G5 ZCC

$2.99

$

In Stock, Qty 15

0

20

Ariens 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$0.99

$

In Stock, only 2 left!

0

21

Ariens 07500520

MOUNT, FAIL-SAFE COMPRESSION

$34.99

$

Usually ships in 4-12 days

0

22

Ariens 06401221

WSHR-FL-STL 0.406X2X0.125 ZCC

$3.99

$

Usually ships in 4-12 days

0

23

Ariens 05901832

BLT, HEX .31-18X.625 G5 ZCC

$1.49

$

Usually ships in 4-12 days

0

24

Ariens 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

25

Ariens 30148151

PLATE- SEAT MTG 3PT (ISO KIT)

$45.99

$

Usually ships in 4-12 days

0
