991800 (2352 S) - Ariens Pro-Zoom 52" Zero-Turn Mower, 23hp Kawasaki (SN: 000101 & Above) Hydraulics Parts Diagram

Pro-Zoom 52" Zero-Turn Mower, 23hp Kawasaki

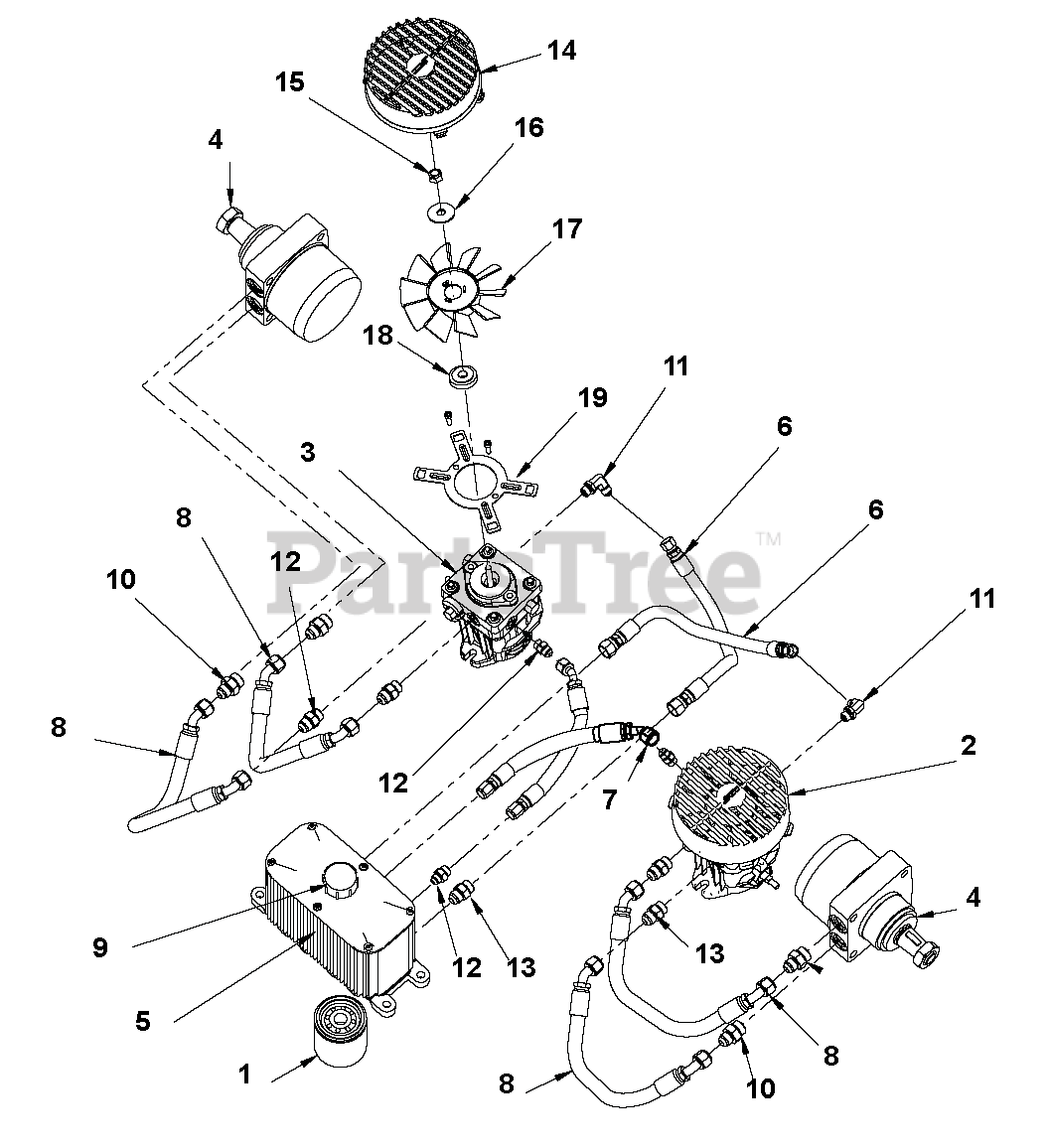

Hydraulics Parts Diagram

  • Title

1

Ariens 00180909

FILTER, 25 MICRON

$56.99

$

Usually ships in 4-12 days

0

2

Ariens 00261600

PUMP, HYDRO LH

$1271.99

$

Usually ships in 4-12 days

0

3

Ariens 00273900

PUMP, HYDRO RH

$882.99

$

Usually ships in 4-12 days

0

4

Ariens 00191103

PARKER TJ WHEEL MOTOR TL195

$941.99

$

Usually ships in 4-12 days

0

5

Ariens 00191157

TANK, HYDRAULIC

$

$

Not available

6

Ariens 00191204

HOSE, HYD-6 -9FJIC -12FJIC 15

$26.99

$

Usually ships in 4-12 days

0

7

Ariens 00191205

HOSE, HYD--6 -9FJIC45 7

$46.99

$

Usually ships in 4-12 days

0

8

Ariens 00191206

HOSE, HYD-8 -12FJIC45 18

$

$

Not available

9

Ariens AA191600

CAP, HYDRAULIC TANK S/O

$52.99

$

Usually ships in 4-12 days

0

10

Ariens 07025800

ADAPTER, HYD ST 7/8 "O" TO 3/4

$14.99

$

In Stock, only 2 left!

0

11

Ariens 08800800

ADPT 2503-6-6
(Superseded to 00313270)

$9.99

$

Usually ships in 4-12 days

0

12

Ariens 00221285

FTG, ADP 9/16MORX9/16MJIC

$

$

Not available

13

Ariens 00313391

FTG, ADP 3/4-16MORX3/4-16MJIC

$

$

Not available

14

Ariens 00191620

SHROUD, HG PUMP S/O

$

$

Not available

15

Ariens 00964066

LOCKNUT, 3/8-24 CROWN Y
(Superseded to 06512300)

$3.99

$

Usually ships in 4-12 days

0

16

Ariens 00180995

WASHER, .375X1.25X.072 BLVL U

$10.99

$

Usually ships in 4-12 days

0

17

Ariens 00191621

FAN, HORNET PUMP S/O

$

$

Not available

18

Ariens 00180994

HUB, BDP16 FAN

$22.99

$

In Stock, only 2 left!

0

19

Ariens 00191622

PLATE, FAN SHROUD MOUNT S/O

$

$

Not available

20

Ariens 00191618

KIT, HORNET PG PUMP SEAL S/O

$

$

Not available

21

Ariens 00191619

KIT, HORN WHEEL MOTOR SEAL S/O

$

$

Not available
