991802 (1948 S) - Ariens Pro-Zoom 48" Zero-Turn Mower, 19hp Kawasaki (SN: 000101 & Above) Battery Parts Diagram

Pro-Zoom 48" Zero-Turn Mower, 19hp Kawasaki

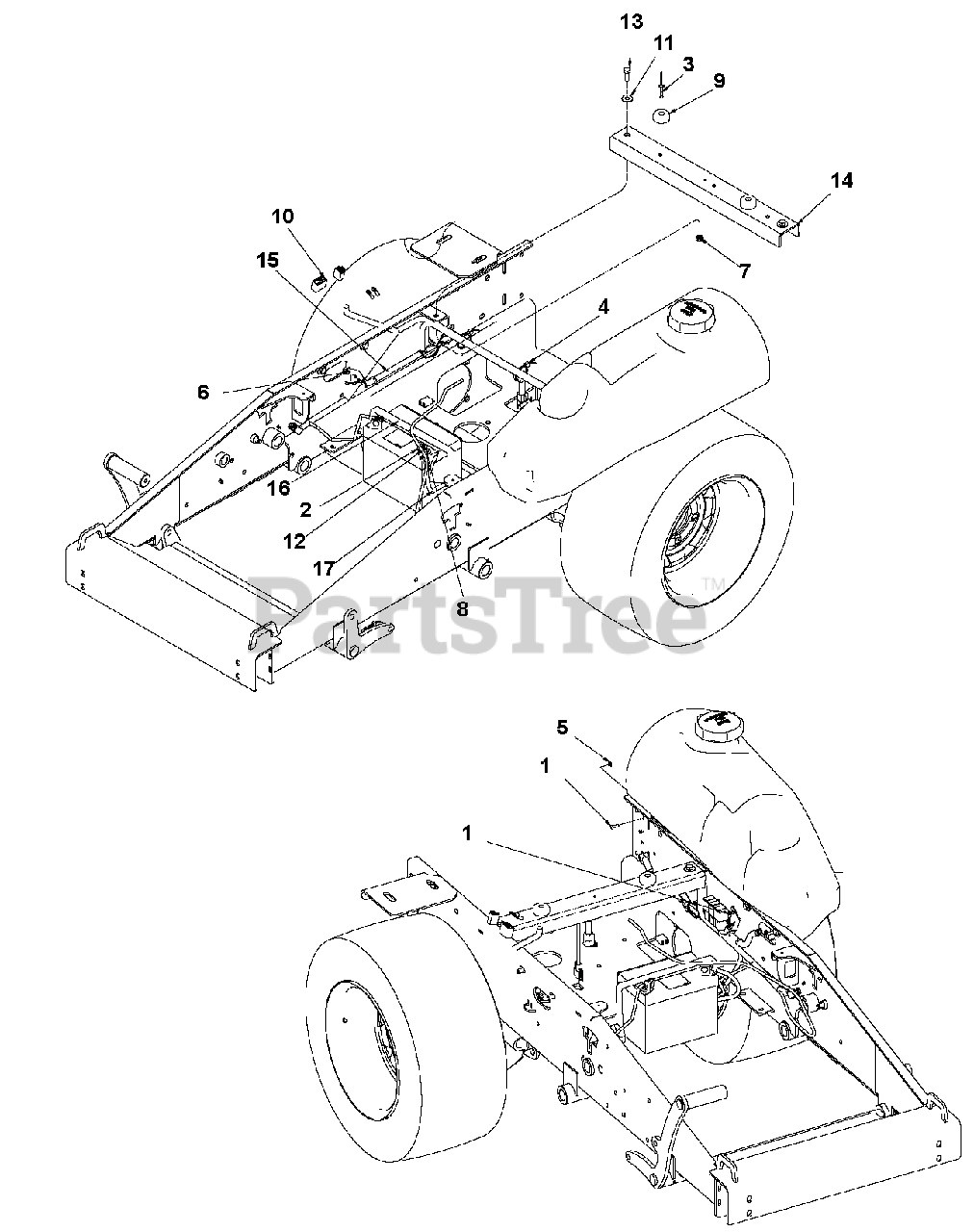

Battery Parts Diagram

  • Title

1

Ariens 06111100

SCR-MCH 10-24X.62 P/HD

$1.49

$

In Stock, Qty 10

0

2

Ariens 00967152

BOLT, 5/16-18X.750 CRG 5 Y
(Superseded to 06215700)

$2.99

$

In Stock, Qty 20+

0

3

Ariens AA968100

RIVET, 3/16 X .500 POP ST

$

$

Not available

4

Ariens 07519900

TIE WRAP, BLACK LG 7.31

$3.99

$

Usually ships in 4-12 days

0

5

Ariens 00130923

NUT, 10-24 KEPS Y
(Superseded to 06500704)

$4.99

$

Usually ships in 4-12 days

0

6

Ariens 00130924

CLAMP, HOSE - 1/2" SPRING
(Superseded to 03278800)

$1.49

$

Usually ships in 4-12 days

0

7

Ariens 06543800

NUT, .38-16 LOW CROWN LK ACORN
(Superseded to 06534900)

$1.99

$

In Stock, Qty 20+

0

8

Ariens 00960501

NUT, 5/16-18 STD HEX GR5 Y
(Superseded to 06529200)

$1.49

$

In Stock, Qty 8

0

9

Ariens 00180390

BUMPER, RUBBER .625 X 1.50 DIA

$

$

Not available

10

Ariens AA191200

HARNESS, POWER UNIT WIRE

$

$

Not available

11

Ariens 06435900

@WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.99

$

In Stock, Qty 20+

0

12

Ariens AA960601

WASHER, .313 MED SPRG LOCK Y
(Superseded to 06308600)

$1.49

$

In Stock, Qty 14

0

13

Ariens 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 14

0

14

Ariens 03786959

PLATE, TOP CROSSMEMBER

$

$

Not available

15

Ariens 00191282

ASSY, FUEL LINE W/CHECKVALVES

$83.99

$

Usually ships in 4-12 days

0

16

Ariens 00181228

BAND 15"

$

$

Not available

17

Ariens 00191216

CABLE, BATTERY - 35" POSITIVE

$26.99

$

Usually ships in 4-12 days

0
