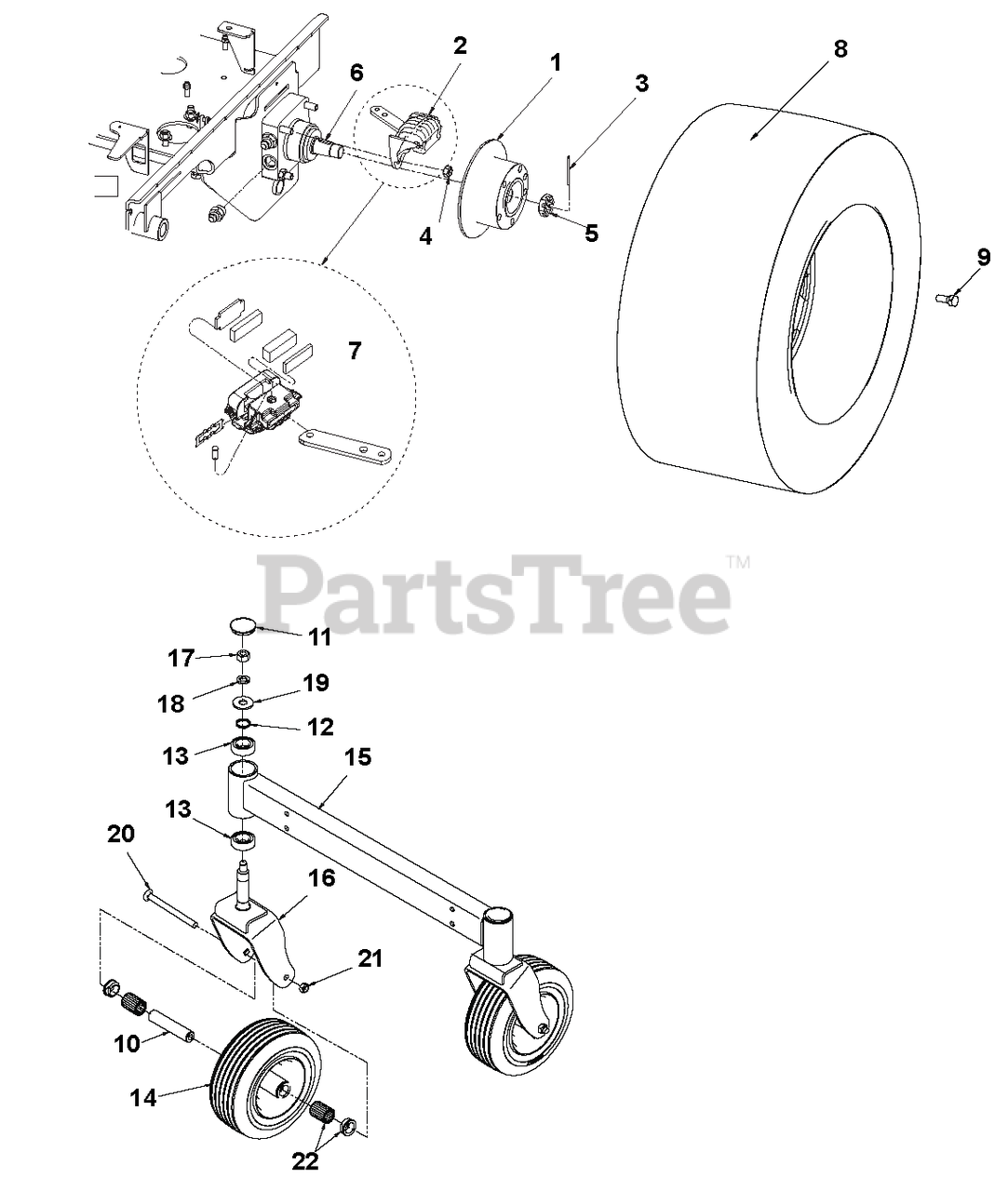

991802 (1948 S) - Ariens Pro-Zoom 48" Zero-Turn Mower, 19hp Kawasaki (SN: 000101 & Above) Casters, Wheels And Brake Parts Diagram

Pro-Zoom 48" Zero-Turn Mower, 19hp Kawasaki

Casters, Wheels And Brake Parts Diagram

  • Title

1

Ariens 00191110

HUB, WHEEL - 5 BOLT, 8" DISC

$116.99

$

Usually ships in 4-12 days

0

2

Ariens 00191111

CALIPER, M15 BRAKE & BRKT CCW

$157.99

$

Usually ships in 4-12 days

0

2

Ariens 00191112

CALIPER, M15 BRAKE & BRKT CW

$187.99

$

Usually ships in 4-12 days

0

3

Ariens 00962020

PIN, COT .125X1.75 EXTP Y
(Superseded to 06709700)

$

$

Not available

4

Ariens AA964000

LOCKNUT, 1/2-13 CROWN Y
(Superseded to 06528200)

$3.99

$

In Stock, Qty 11

0

5

Ariens 00191625

NUT, 1-20 SPECIAL CASTLE S/O

$

$

Not available

6

Ariens 00191603

KEY, WDRF .313X1.00-#1008 S/O
(Superseded to 06607800)

$4.99

$

Usually ships in 4-12 days

0

7

Ariens 00191606

KIT, 3/16 DISC BRAKE PAD S/O

$76.99

$

Usually ships in 4-12 days

0

8

Ariens 00191228

ASSY, TIRE & RIM - 23X10.50-12

$

$

Not available

8

Ariens 00191229

TIRE, W/O RIM 23 X10.50-12 4PL

$

$

Not available

8

Ariens 00191721

RIM, 12X8.5X.3 OFFSET SLVR S/O

$

$

Not available

9

Ariens 00967133

BOLT, 1/2-20X1.00 LUG Y
(Superseded to 07000143)

$3.99

$

In Stock, Qty 20+

0

10

Ariens 00191049

TUBE, RD 1.00X.500X4.76

$52.99

$

In Stock, only 4 left!

0

11

Ariens 00191052

CAP, DUST 2.14

$

$

Not available

12

Ariens AA191100

WASHER,WAVE 1.0SHAFT 1.25 BORE

$16.99

$

Usually ships in 4-12 days

0

13

Ariens 00149230

BRG, BAL .984X2.05X.591 - 6205
(Superseded to 00191155)

$23.99

$

In Stock, only 2 left!

0

14

Ariens 00958700

WHEEL, FRONT 11X4X5

$

$

Not available

15

Ariens 03785559

WLDT, FRNT AXLE (PAINT ARIENS)

$

$

Not available

16

Ariens 03785659

WLDT, FR WHEEL FORK (ARIENS)

$

$

Not available

17

Ariens 00960505

NUT, 5/8-11 STD HEX GR5 Y
(Superseded to 06535600)

$2.99

$

Usually ships in 4-12 days

0

18

Ariens 00960605

WASHER, .625 MED SPRG LOCK Y
(Superseded to 06309500)

$2.49

$

Usually ships in 4-12 days

0

19

Ariens 00960705

WASHER, .625 REG FLAT Y
(Superseded to 06442900)

$1.49

$

In Stock, only 4 left!

0

20

Ariens 00963011

BOLT, 1/2-13X6.00 CRG Y
(Superseded to 06223400)

$10.99

$

In Stock, Qty 12

0

21

Ariens AA964000

LOCKNUT, 1/2-13 CROWN Y
(Superseded to 06528200)

$3.99

$

In Stock, Qty 11

0

22

Ariens 00191604

KIT, BRG - 1.00 X 4.75 HUB S/O

$52.99

$

In Stock, only 2 left!

0
