991802 (1948 S) - Ariens Pro-Zoom 48" Zero-Turn Mower, 19hp Kawasaki (SN: 000101 & Above) Engine And Exhaust Parts Diagram

Pro-Zoom 48" Zero-Turn Mower, 19hp Kawasaki

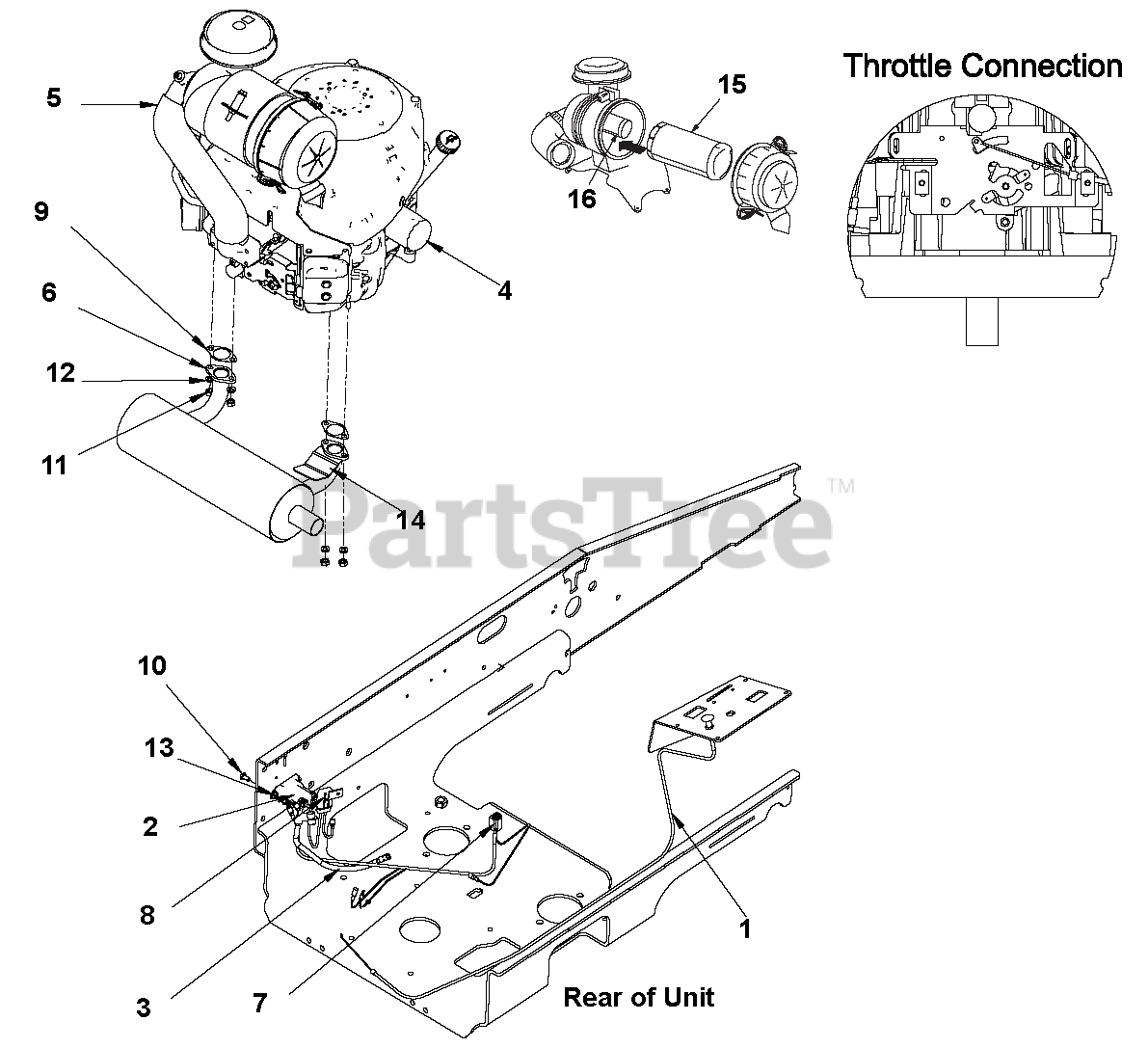

Engine And Exhaust Parts Diagram

  • Title

1

Ariens 00180273

CABLE, CHOKE 48.0"

$56.99

$

In Stock, only 2 left!

0

2

Ariens 03551000

SOLENOID

$43.99

$

In Stock, Qty 9

0

3

Ariens 00872300

STARTER CABLE
(Superseded to 00180842)

$15.99

$

Usually ships in 4-12 days

0

4

Ariens 00181073

OIL FILTER S/O
(Superseded to 21535800)

$18.99

$

In Stock, Qty 20+

0

5

Ariens 00200675

ENGINE, KAWASAKI 19HP FH580V

Note: (991802)

$

$

Not available

Ariens 00191123

ENGINE, KAWASAKI 23HP FH680V

Note: (991800)

$

$

Not available

6

Ariens 00941700

MUFFLER, KAWASAKI FH-HORI
(Superseded to 00191125)

Note: (991800)

$

$

Not available

Ariens 00278200

MUFFLER, KAWASAKI FH-HORI

Note: (991802)

$

$

Not available

7

Ariens 00288200

ADAPTER HARNESS, 19KAI/23KAW

$

$

Not available

8

Ariens 00191260

ADAPTER HARNESS KAWASAKI, FUSE

$

$

Not available

9

Ariens 00872600

GASKET KIT, INCLUDES ITEMS 2,8
(Superseded to 00191601)

Note: (Includes items 9, 11 and 12)

$55.99

$

Usually ships in 4-12 days

0

10

Ariens 05947900

@BLT-HEX .25-20X.50 GR5 YWZC
(Superseded to 05901705)

$0.99

$

In Stock, only 3 left!

0

11

Ariens 00961553

NUT, M8X1.25 HEX GR8.8 Y
(Superseded to 06538600)

$2.49

$

Usually ships in 4-12 days

0

12

Ariens 00961603

WASHER, M8 SPRG LOCK Y
(Superseded to 06318200)

$0.99

$

Usually ships in 4-12 days

0

13

Ariens 06530100

@NUT-SPNLK-FLG .25-20 YWZC
(Superseded to 06500824)

$1.49

$

In Stock, Qty 20+

0

14

Ariens 00872400

SHIELD, HEAT
(Superseded to 00191365)

$

$

Not available

15

Ariens 00181071

AIR FILTER PRIMARY S/O

Note: (991800)

$60.99

$

In Stock, only 2 left!

0

Ariens 00186700

AIR FILTER 19 KAI

Note: (991802)

$

$

Not available

16

Ariens 00181072

AIR FILTER SECONDARY S/O

Note: (991800)

$58.99

$

Usually ships in 4-12 days

0
