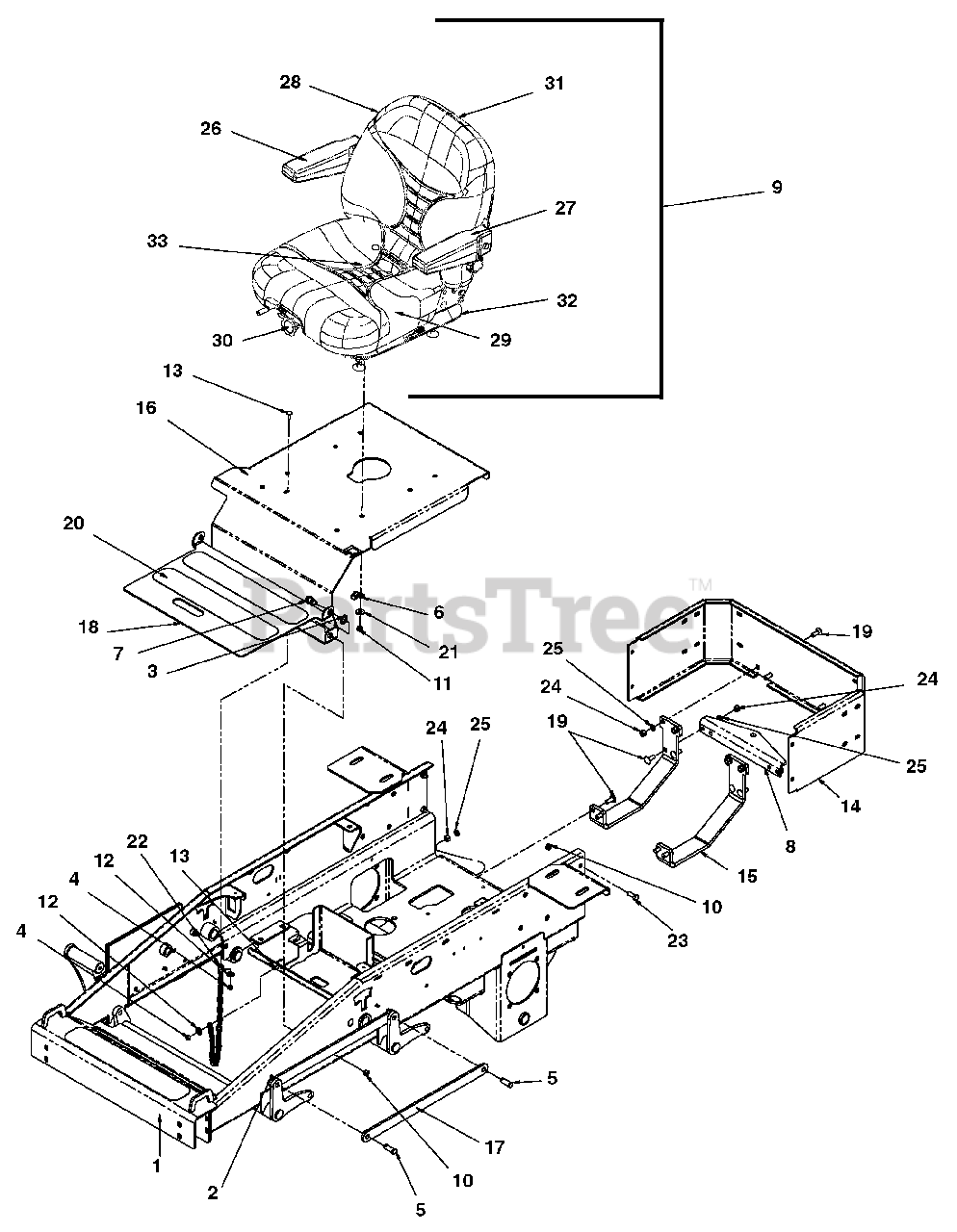

991802 (1948 S) - Ariens Pro-Zoom 48" Zero-Turn Mower, 19hp Kawasaki (SN: 000101 & Above) Frame, Seat And Seat Support Parts Diagram

Pro-Zoom 48" Zero-Turn Mower, 19hp Kawasaki

Frame, Seat And Seat Support Parts Diagram

  • Title

1

Ariens 03786059

WLDT, FRAME (PAINTED ARIENS)

$

$

Not available

2

Ariens 00967354

RING, RUE .500 X .062 X 1.420

$3.99

$

Usually ships in 4-12 days

0

3

Ariens 00967398

WASHER, .510X1.00X.068 NYLON

$

$

Not available

4

Ariens 06531000

@NUT-LK-NYL .250-20 YWZC
(Superseded to 06500832)

$5.49

$

In Stock, only 2 left!

0

5

Ariens 00110330

PIN, CVS .500X1.25X1.02 Y
(Superseded to 06821600)

$3.99

$

In Stock, only 1 left!

0

6

Ariens 00888500

P-CLIP, .500 INSULATED
(Superseded to 06900512)

$

$

Not available

7

Ariens 00135139

BOLT, 1/2X1.06X3/8-16 SLD 5 Y
(Superseded to 07070119)

$3.99

$

Usually ships in 4-12 days

0

8

Ariens 03817259

PLATE, HITCH

$

$

Not available

9

Ariens 03947200

SEAT-SUSP-LT GRY-SEAT BLT BUSH

$925.99

$

Usually ships in 4-12 days

0

10

Ariens 06543800

NUT, .38-16 LOW CROWN LK ACORN
(Superseded to 06534900)

$1.99

$

In Stock, Qty 20+

0

11

Ariens 00964021

LOCKNUT, 5/16-18 CROWN Y
(Superseded to 06530800)

$6.49

$

Usually ships in 4-12 days

0

12

Ariens AA960700

WASHER, .250 REG FLAT Y
(Superseded to 06435800)

$1.49

$

In Stock, Qty 20+

0

13

Ariens 00963095

BOLT, 1/4-20X.750 CRG 5 Y
(Superseded to 06219900)

$1.49

$

Usually ships in 4-12 days

0

14

Ariens 03786659

PLATE, REAR GUARD (ARIENS)

$

$

Not available

15

Ariens 03786259

BRACE, BENT ARM HITCH (ARIENS)

$

$

Not available

16

Ariens 03786300

ARIENS SEAT PLATE W/DECALS

$

$

Not available

17

Ariens 00191142

PLATE, ARM CONNECTOR LINK

$

$

Not available

18

Ariens 03786459

PLATE, FLOOR PAN (ARIENS)

$

$

Not available

19

Ariens 06212000

@BLT-RDHDSHSQNK.38-16X1.0 G5YZ
(Superseded to 06200235)

$1.99

$

In Stock, Qty 20+

0

20

Ariens 00191257

TAPE, TRACTION 3.00 X 17.00

$

$

Not available

21

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

22

Ariens 00191487

CHAIN, .148 X 27 LIINKS

$

$

Not available

23

Ariens 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

24

Ariens 06529200

@NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$1.49

$

In Stock, Qty 8

0

25

Ariens 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$1.49

$

In Stock, Qty 17

0

26

Ariens 59210400

KIT-RH ARMREST ASSEMBLY REPLAC

$142.99

$

Usually ships in 4-12 days

0

27

Ariens 59210500

KIT-LH ARMREST ASSEMBLY REPLAC

$142.99

$

Usually ships in 4-12 days

0

28

Ariens 59208800

KIT-BACK CUSHION-LIGHT GRAY

$431.99

$

Usually ships in 4-12 days

0

29

Ariens 59208900

KIT-SEAT CUSHION-LIGHT GRAY

$263.99

$

In Stock, only 3 left!

0

30

Ariens 59208000

KIT-SEAT KNOB

$34.99

$

Usually ships in 4-12 days

0

31

Ariens 59208100

KIT-SEAT BACK PANEL

$179.99

$

Usually ships in 4-12 days

0

32

Ariens 59207900

KIT-SEAT SLIDE

$

$

Not available

33

Ariens 59207800

KIT-SPRING AND SADDLE

$186.99

$

Usually ships in 4-12 days

0
