991802 (1948 S) - Ariens Pro-Zoom 48" Zero-Turn Mower, 19hp Kawasaki (SN: 000101 & Above) Steering Controls And Clutch Parts Diagram

Pro-Zoom 48" Zero-Turn Mower, 19hp Kawasaki

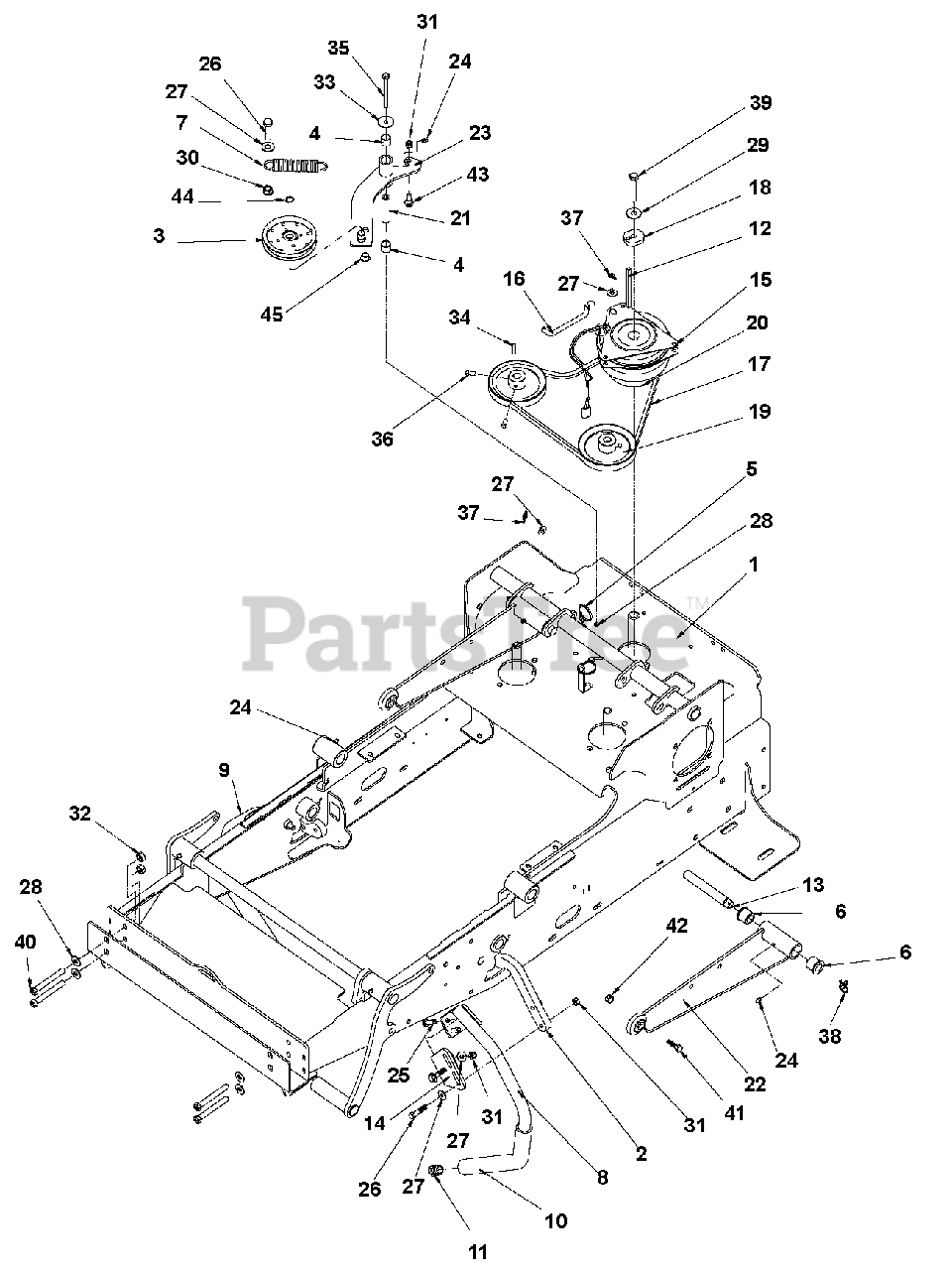

Steering Controls And Clutch Parts Diagram

  • Title

1

Ariens 03786059

WLDT, FRAME (PAINTED ARIENS)

$

$

Not available

2

Ariens 00191082

PLATE, STEERING CONTROL

$

$

Not available

3

Ariens 00180927

PULLEY, FLAT 4.50X.669 W/BRG

$79.99

$

In Stock, only 1 left!

0

4

Ariens 00105546

BRG, SLV .753X.878X.750

$6.99

$

In Stock, Qty 20+

0

5

Ariens 00111910

CABLE TIE, .15 X 8.50

$

$

Not available

6

Ariens 00150079

BRG, FLG .750X1.13X1.00

$9.49

$

Usually ships in 4-12 days

0

7

Ariens 00110580

SPRG, EXTENSION

$17.99

$

In Stock, only 1 left!

0

8

Ariens 00181348

WLDT, LH STEERING HANDLE

$

$

Not available

9

Ariens 00181347

WLDT, RH STEERING HANDLE

$

$

Not available

10

Ariens 00180617

FOAM GRIP

$37.99

$

In Stock, only 2 left!

0

11

Ariens 00180639

PLUG, 7/8" END

$3.99

$

Usually ships in 4-12 days

0

12

Ariens 00180962

KEY, .250 X .250 X 4.62 SQ

$

$

Not available

13

Ariens 00191048

PIN, MFG .750X5.38X4.88 XDRL Y

$

$

Not available

14

Ariens 00191083

PLATE, STEERING CONTROL BENT

$

$

Not available

15

Ariens 00191109

CLUTCH, ELECT - OGURA GT, 2.5

$387.99

$

In Stock, only 1 left!

0

16

Ariens 00191166

ROD, CLUTCH ANTIROTATION

$82.99

$

Usually ships in 4-12 days

0

17

Ariens 00192111

BELT, HA 59.0 OC AMD OHR

$45.99

$

In Stock, only 2 left!

0

18

Ariens 00191203

WASHER, CLUTCH UNIVERSAL W/KEY

$

$

Not available

19

Ariens 00191265

PULLEY, V-BELT 5.00X.591 W/KEY

$

$

Not available

20

Ariens 00191268

PULLEY, V-BELT 4.50X1.00 W/KEY
(Superseded to 07334667)

$70.99

$

Usually ships in 4-12 days

0

21

Ariens 00191347

TUBE, RD .750 X .156 X 3.05

$12.99

$

In Stock, only 4 left!

0

22

Ariens 00191577

WLDT, DECK PUSH LINK

$

$

Not available

23

Ariens 00191534

WLDT, HORNET PUMP GEN I RETRO

$

$

Not available

24

Ariens 07037900

GREASE ZERK, 1/4-28 STR .69 LG
(Superseded to 00959995)

$3.49

$

Usually ships in 4-12 days

0

25

Ariens 00960047

BOLT, 3/8-16X1.25 HEX 5 Y
(Superseded to 05958000)

$1.49

$

In Stock, Qty 8

0

26

Ariens 00960048

BOLT, 3/8-16X1.50 HEX 5 Y
(Superseded to 05957900)

$1.49

$

In Stock, Qty 5

0

27

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 8

0

28

Ariens 06435900

@WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.49

$

Usually ships in 4-12 days

0

29

Ariens AA960703

WASHER, .438 REG FLAT Y
(Superseded to 06441000)

$2.99

$

In Stock, Qty 13

0

30

Ariens 06534900

@NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.49

$

In Stock, Qty 18

0

31

Ariens 06543800

NUT, .38-16 LOW CROWN LK ACORN
(Superseded to 06534900)

$1.49

$

In Stock, Qty 18

0

32

Ariens 00964025

LOCKNUT, 7/16-14 CROWN Y
(Superseded to 06508200)

$3.99

$

Usually ships in 4-12 days

0

33

Ariens 00964502

WASHER, .375X1.50X.063 FLAT Y
(Superseded to 06439300)

$3.49

$

In Stock, Qty 12

0

34

Ariens 00966058

KEY, M5 X M5 X M30 RD

$3.49

$

In Stock, only 1 left!

0

35

Ariens 00960058

BOLT, 3/8-16X4.00 HEX 5 Y
(Superseded to 05965400)

$3.99

$

In Stock, only 1 left!

0

36

Ariens 00967343

SET SCREW, 5/16-18X.625 SQ CUP

$1.49

$

In Stock, only 1 left!

0

37

Ariens 00967353

RING, RUE .375 X .054 X 1.254

$2.49

$

Usually ships in 4-12 days

0

38

Ariens 00967357

RING, RUE .750 X .080 X 2.081

$

$

Not available

39

Ariens 00967394

BOLT, 7/16-20X2.75 HEX 5 Y

$

$

Not available

40

Ariens 00967399

BOLT, 7/16-14X3.50 HEX 8 Y
(Superseded to 05976100)

$

$

Not available

41

Ariens 00960117

BOLT, 1/2-13X2.25 HEX 5 Y
(Superseded to 05961000)

$3.49

$

In Stock, Qty 9

0

42

Ariens AA964000

LOCKNUT, 1/2-13 CROWN Y
(Superseded to 06528200)

$3.99

$

In Stock, only 2 left!

0

43

Ariens 00135139

BOLT, 1/2X1.06X3/8-16 SLD 5 Y
(Superseded to 07070119)

$3.99

$

Usually ships in 4-12 days

0

44

Ariens 00967018

SNAP RING, .672 X .035 EXT

$

$

Not available

45

Ariens 00180354

BRG, FLG .502X.629X.421

$5.99

$

Usually ships in 4-12 days

0
