991983 (ZT HD Stealth 60) - Gravely 60" Zero-Turn Mower, Kawasaki FR (SN: 000101 & Above) Fuel System - Kawasaki Parts Diagram

60" Zero-Turn Mower, Kawasaki FR

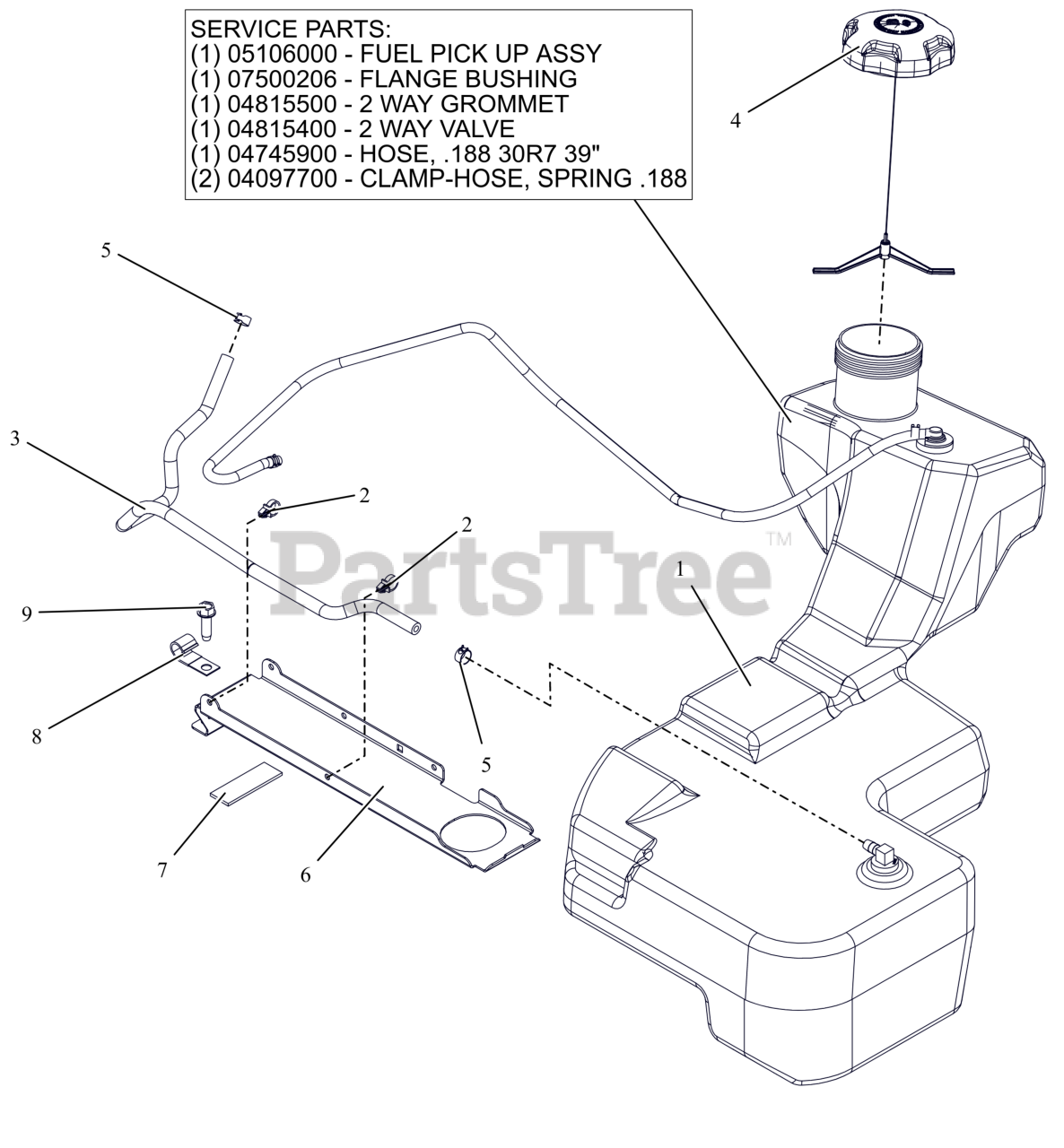

Fuel System - Kawasaki Parts Diagram

  • Title

1

Gravely 09167300

ASM, FUEL TANK-HD

$250.99

$

Usually ships in 4-12 days

0

1

Gravely 05106000

ASM, HD FUEL PICK-UP

Note: Component Service Part

$58.99

$

In Stock, Qty 11

0

1

Gravely 07500206

BSHG-FLG .375X1.062X.625 NITR

Note: Component Service Part

$2.49

$

In Stock, Qty 18

0

1

Gravely 04815500

GROMMET, 2-WAY
(Superseded to 04082700)

Note: Component Service Part

$3.99

$

In Stock, Qty 20+

0

1

Gravely 04815400

VALVE, 2-WAY

Note: Component Service Part

$19.99

$

In Stock, Qty 6

0

1

Gravely 04745900

HOSE, .188 30R7 BULK

Note: Component Service Part, Hose Length 39 Inches

$1.49

$

Usually ships in 4-12 days

0

1

Gravely 04097700

CLAMP-HOSE, SPRING .188

Note: Component Service Part

$1.99

$

Usually ships in 4-12 days

0

2

Gravely 00367900

ROUTING CLIP (1/2" ID)

$1.99

$

In Stock, only 1 left!

0

3

Gravely 03278100

1 INCH OF HOSE, .25 LOW-PERM BULK GAS

$1.49

$

In Stock, Qty 20+

0

4

Gravely 09190300

CAP, FUEL - 3.50 RATCHET INLET VENT

$35.99

$

In Stock, Qty 9

0

5

Gravely 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 19

0

6

Gravely 05024151

BRKT, FUEL TANK HOLD DOWN

$22.99

$

Usually ships in 4-12 days

0

7

Gravely 04850000

PAD,RBR 1.0"X3.0" W/ADHESIVE

$2.99

$

Usually ships in 4-12 days

0

8

Gravely 06916000

J-CLAMP

$2.99

$

Usually ships in 4-12 days

0

9

Gravely 07400128

SCR,TAP .375-16X1.25HWH TR ZCC

$3.49

$

In Stock, Qty 7

0
