991983 (ZT HD Stealth 60) - Gravely 60" Zero-Turn Mower, Kawasaki FR (SN: 000101 & Above) Seat Parts Diagram

60" Zero-Turn Mower, Kawasaki FR

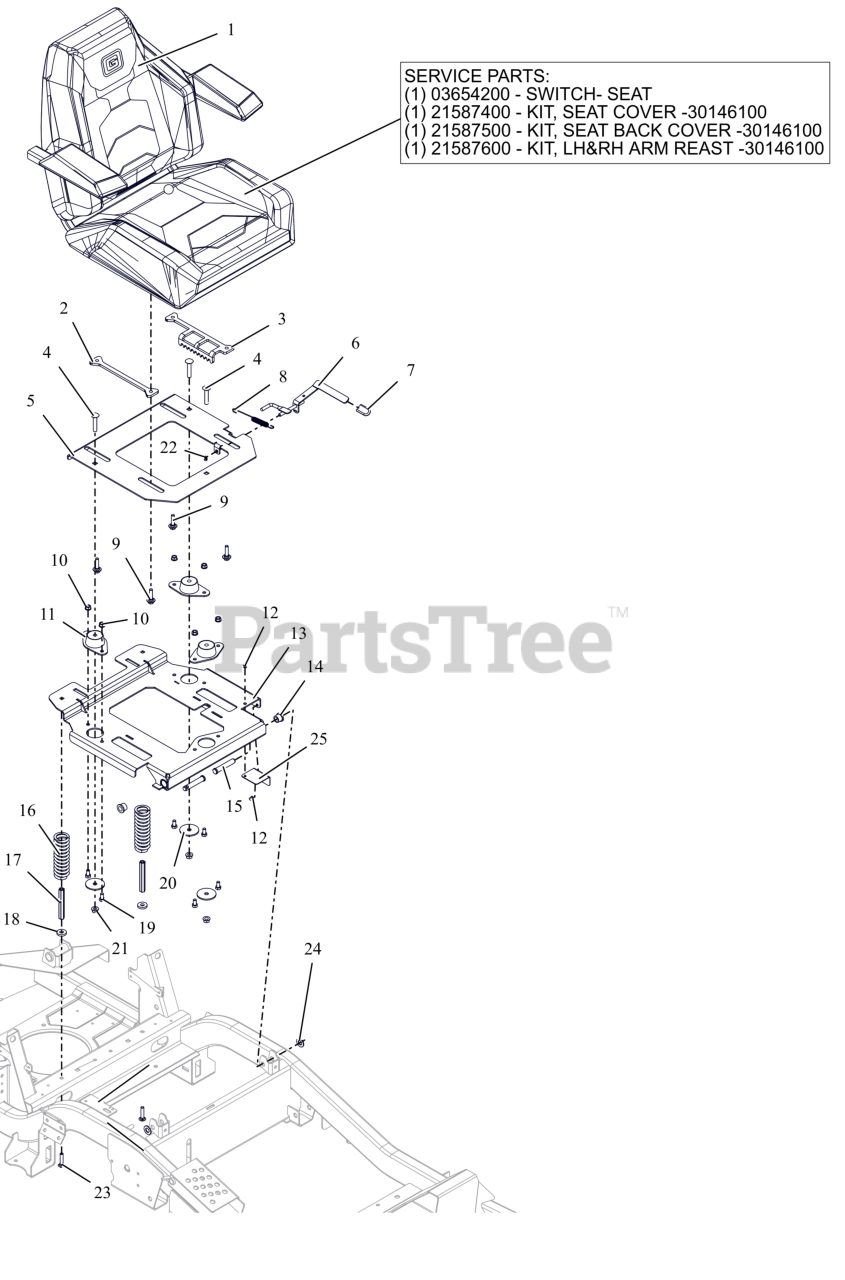

Seat Parts Diagram

  • Title

1

Gravely 30146100

SEAT- HD STEALTH

$593.99

$

Usually ships in 4-12 days

0

1

Gravely 03654200

SWITCH- SEAT

Note: Component Service Part

$15.99

$

In Stock, only 3 left!

0

1

Gravely 21587400

KIT, SEAT COVER BOTTOM

Note: Component Service Part

$105.99

$

Usually ships in 4-12 days

0

1

Gravely 21587500

KIT- SEAT BACK COVER

Note: Component Service Part

$112.99

$

Usually ships in 4-12 days

0

1

Gravely 21587600

KIT- LH&RH ARM REST -09694900
(Superseded to 21800800)

Note: Component Service Part

$184.99

$

Usually ships in 4-12 days

0

2

Gravely 09363451

PLATE, ADJ SEAT SLIDE (BLACK)

$10.99

$

Usually ships in 4-12 days

0

3

Gravely 09363551

PLATE, SEAT ADJ (BLACK)

$27.99

$

Usually ships in 4-12 days

0

4

Gravely 06200323

BLT,RHSSN.375-16X2.00 G5 ZCC

$2.99

$

In Stock, Qty 17

0

5

Gravely 30148142

PLATE- SEAT MOUNTING

$52.99

$

Usually ships in 4-12 days

0

6

Gravely 05015251

WLDMT, SEAT SLIDE LEVER

$25.99

$

Usually ships in 4-12 days

0

7

Gravely 04396600

GRIP, SEAT LEVER, GREY

$2.99

$

Usually ships in 4-12 days

0

8

Gravely 08300022

SG-TENS .06X.482X5.35

$6.49

$

In Stock, only 1 left!

0

9

Gravely 07001929

BLT, SHLDR .31-18 X .175

$2.99

$

In Stock, only 3 left!

0

10

Gravely 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

11

Gravely 07500520

MOUNT- FAIL-SAFE COMPRESSION

$42.99

$

Usually ships in 4-12 days

0

12

Gravely 06800120

RIVET, .1875 AL/AL .126-.250

$1.99

$

Usually ships in 4-12 days

0

13

Gravely 30135942

WLDMT- ISO MTG PLATE

$131.99

$

Usually ships in 4-12 days

0

14

Gravely 05500901

BSHG, FLG .516X.750X.625X.937

$6.49

$

Usually ships in 4-12 days

0

15

Gravely 06800202

PIN, SLIC-.500X42.70X2.31 -ZC

$8.49

$

In Stock, Qty 6

0

16

Gravely 08300704

SPRING, COMPRESSION SEAT 224LB

$17.99

$

Usually ships in 4-12 days

0

17

Gravely 06500828

NUT, COUPLING 5/16X18 X 3.75

$13.99

$

In Stock, only 2 left!

0

18

Gravely 06401108

WSHR, FLT .406X1.00X.188 ZCC

$2.99

$

In Stock, Qty 20+

0

19

Gravely 05901832

BLT, HEX .31-18X.625 G5 ZCC

$1.99

$

Usually ships in 4-12 days

0

20

Gravely 06401221

WSHR-FL-STL 0.406X2X0.125 ZCC

$3.99

$

In Stock, only 2 left!

0

21

Gravely 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

22

Gravely 06514900

NUT-PUSH .312

$0.99

$

In Stock, Qty 20+

0

23

Gravely 06200233

BLT,RHSN .31-18X1.50 G5 ZCC

$1.99

$

In Stock, Qty 12

0

24

Gravely 06443300

WSHR-FL-NYL .518X1.000X.080

$0.99

$

In Stock, Qty 20+

0

25

Gravely 05265551

GUARD, SEAT FAN (SH)(BLACK)

$21.99

$

Usually ships in 4-12 days

0
