992001 (Pro-Vac 1050) - Gravely Pro-Vac Vacuum, 18hp Kohler Command (SN: 000101 & Above) BATTERY AND FUEL Parts Diagram

Pro-Vac Vacuum, 18hp Kohler Command

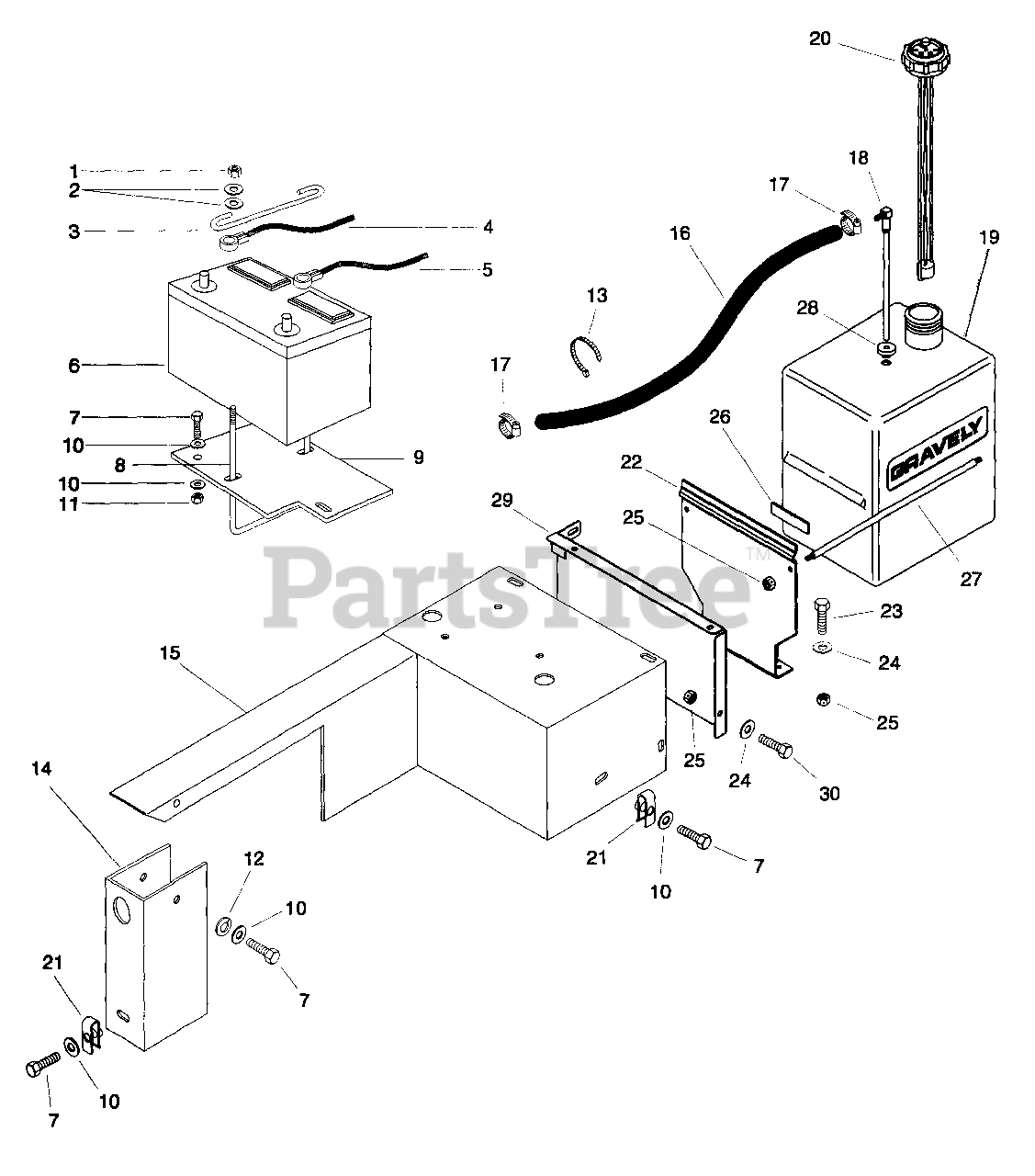

BATTERY AND FUEL Parts Diagram

  • Title

1

Gravely 06529700

Nut-Lk-Ctr .25-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

2

Gravely 06435800

Wshr-Fl-Stl .312 x .734 x .065
(Superseded to 06401124)

$0.99

$

In Stock, Qty 10

0

3

Gravely 051098

Rod, Hold Down
(Superseded to 09030300)

$

$

Not available

4

Gravely 04202100

Battery Cable
(Superseded to 02087400)

$

$

Not available

5

Gravely 04202000

Ground Cable
(Superseded to 02078300)

$

$

Not available

6

Gravely 04202200

Battery
(Superseded to 02078500)

$

$

Not available

7

Gravely 05948700

BIt-Hex .38-16 x 1.00 Gr 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 050781

Rod Battery
(Superseded to 09030200)

$252.99

$

Usually ships in 4-12 days

0

9

Gravely 04205251

Mounting Plate
(Superseded to 02953051)

$

$

Not available

10

Gravely 06435900

Wshr-Fl-Stl .438 x 1.00 x .083
(Superseded to 06401008)

$1.49

$

In Stock, only 2 left!

0

11

Gravely 06529600

Nut-Lk-Ctr .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 06308800

Wshr-Lock .38 x .094
(Superseded to 06300116)

$0.99

$

In Stock, Qty 19

0

13

Gravely 04003800

Tie Wrap

$

$

Not available

14

Gravely 04201751

Hour-Meter Mount

$

$

Not available

15

Gravely 09270100

Belt Guard Weldment
(Superseded to 02088953)

$

$

Not available

16

Gravely 021134

Gas Line-Bulk 1/4" ID
(Superseded to 03278100)

$0.99

$

In Stock, Qty 20+

0

17

Gravely 032045

Hose Clamp
(Superseded to 06924300)

$6.99

$

Usually ships in 4-12 days

0

18

Gravely 047614

Fitting, Tank
(Superseded to 08983100)

$34.99

$

Usually ships in 4-12 days

0

19

Gravely 047612

Tank, Fuel
(Superseded to 08983000)

$

$

Not available

20

Gravely 047615

Gauge, Fuel
(Superseded to 08983200)

$47.99

$

In Stock, only 1 left!

0

21

Gravely 06518600

Nut-Cage .375-16

$

$

Not available

22

Gravely 09270300

Tank Bracket
(Superseded to 09270351)

$20.99

$

Usually ships in 4-12 days

0

23

Gravely 05946900

Bit-Hex .31-18 x 1.00 Gr 5
(Superseded to 05901701)

$1.49

$

In Stock, Qty 8

0

24

Gravely 06435700

Wshr-Fl-Stl .38 x .875 x .083
(Superseded to 06401023)

$1.49

$

In Stock, Qty 14

0

25

Gravely 06529800

Nut-Lk-Ctr .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 00915900

Gasket

$

$

Not available

27

Gravely 09037800

Rod, Tank

$29.99

$

Usually ships in 4-12 days

0

28

Gravely 050246

Bushing
(Superseded to 07511400)

$3.49

$

In Stock, Qty 20+

0

29

Gravely 09270200

End Plate Weldment
(Superseded to 09270253)

$

$

Not available

30

Gravely 05947000

Bit-Hex .31-18 x .75 Gr 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 12

0
