992001 (Pro-Vac 1050) - Gravely Pro-Vac Vacuum, 18hp Kohler Command (SN: 000101 & Above) ENGINE AND DRIVE Parts Diagram

Pro-Vac Vacuum, 18hp Kohler Command

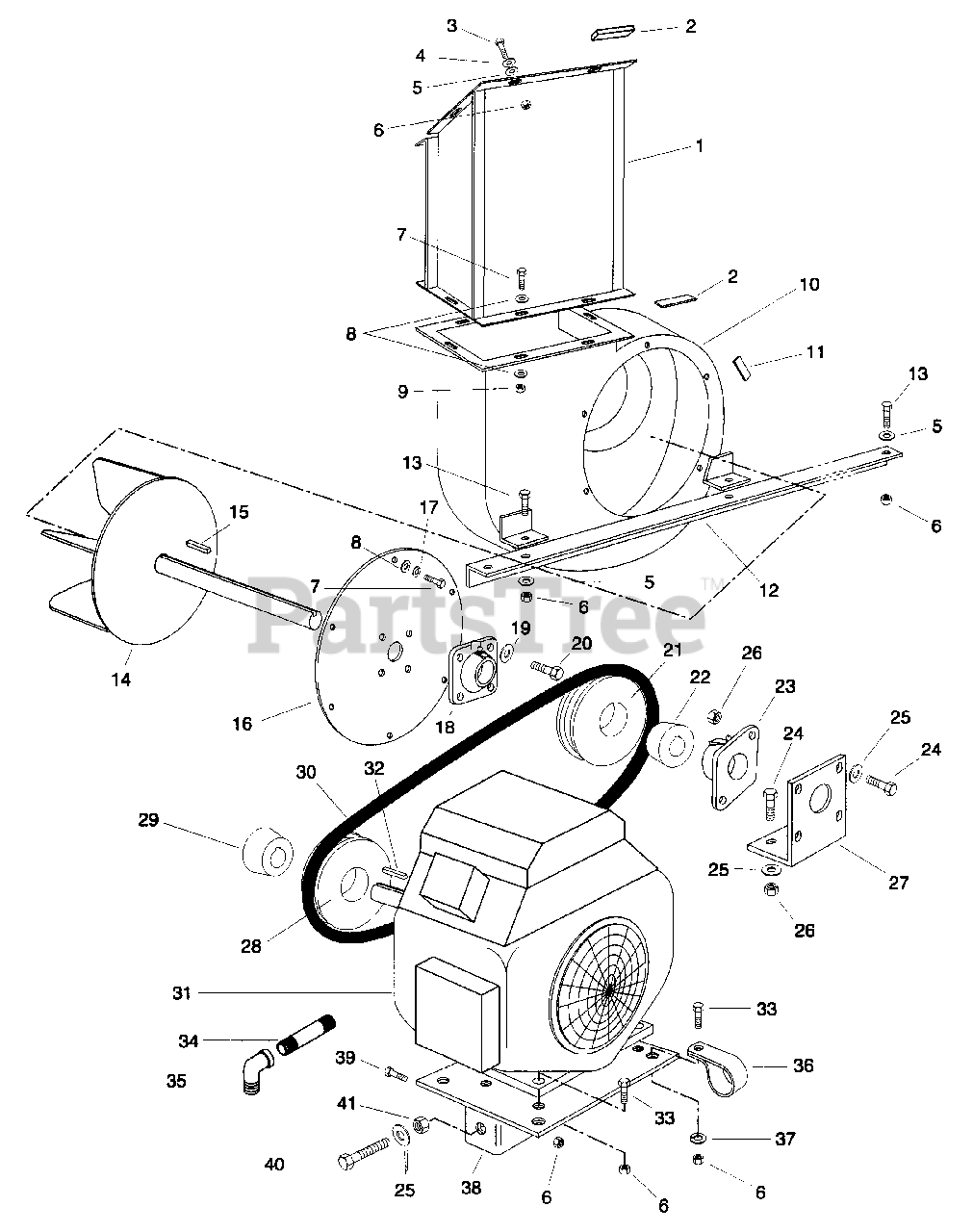

ENGINE AND DRIVE Parts Diagram

  • Title

1

Gravely 04203653

Discharge Chute Weldment

$

$

Not available

2

Gravely 00915900

Gasket

$

$

Not available

3

Gravely 05959400

Blt-Hex .38-16 x .75 Gr 5
(Superseded to 05901702)

$1.99

$

In Stock, Qty 10

0

4

Gravely 06436400

Wshr-Fl-St I .511 x 1.441 x .125
(Superseded to 06401022)

$3.49

$

In Stock, Qty 20+

0

5

Gravely 06435900

Nut-Lk Top .375-16 Gr C Pl
(Superseded to 06401008)

$1.99

$

In Stock, Qty 13

0

6

Gravely 06529600

Nut-Lk-Ctr .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 05947000

Blt-Hex .31-18x .75 Gr5
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

8

Gravely 06435700

Wshr-Fl-Stl .38 x .875 x .083
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

9

Gravely 06529800

Nut-Lk-Ctr 31-18
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

10

Gravely 04200653

Blower Weldment
(Superseded to 02074553)

$

$

Not available

11

Gravely 00916400

Gasket
(Superseded to 02072000)

$

$

Not available

12

Gravely 04202653

Blower Support Beam

$

$

Not available

13

Gravely 05948700

Blt-Hex .38-16 x 1.00 Gr 5
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

14

Gravely 04200700

Fan
(Superseded to 02075600)

$798.99

$

Usually ships in 4-12 days

0

15

Gravely 06605600

Key Str .38 x 2.0 x .38

$

$

Not available

16

Gravely 04200553

Fan Cover Weldment
(Superseded to 02074353)

$

$

Not available

17

Gravely 06308600

Wshr-Lock .31 x .078
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 05418600

Bearing

$106.99

$

Usually ships in 4-12 days

0

19

Gravely 06309300

Wshr-Lk .31 x .078
(Superseded to 06300121)

$2.99

$

In Stock, only 2 left!

0

20

Gravely 05963800

Blt-Hex .44-14 x 1.25 Gr 5

$2.99

$

Usually ships in 4-12 days

0

21

Gravely 07315300

Pulley - V 2G 3V 6.5 Taper Lock
(Superseded to 07300310)

$162.99

$

In Stock, only 1 left!

0

22

Gravely 04201900

Driven Sheave Bushing
(Superseded to 05500439)

$

$

Not available

23

Gravely 05418500

Bearing 2 Bolt
(Superseded to 05400234)

$106.99

$

Usually ships in 4-12 days

0

24

Gravely 05962000

Blt-Hex .50-13 x 1.50 Gr 5
(Superseded to 05901631)

$4.99

$

In Stock, only 4 left!

0

25

Gravely 06442000

Wshr-Fl-Stl .563 x 1.38 x .109
(Superseded to 06401012)

$2.99

$

In Stock, Qty 20+

0

26

Gravely 06504600

Nut-Lk-Ctr .50-13
(Superseded to 06536300)

$4.99

$

In Stock, Qty 10

0

27

Gravely 04202451

Bearing Holder
(Superseded to 05400251)

$

$

Not available

28

Gravely 07315400

Pulley - V 2G 3V 5.5 Taper Lock
(Superseded to 07300311)

$

$

Not available

29

Gravely 04201800

Drive Sheave Bushing
(Superseded to 05500438)

$

$

Not available

30

Gravely 07218300

V-Belt Matched Set of Two
(Superseded to 07200329)

$75.99

$

Usually ships in 4-12 days

0

31

Gravely 08242800

Engine-18 HP Kohler Command

$

$

Not available

32

Gravely 06603400

Key-Sq .25 x 1.25 x .25 SAE

$3.99

$

In Stock, Qty 5

0

33

Gravely 05957800

Blt-Hex .38-16 x 3.00 Gr 5
(Superseded to 05901814)

$2.99

$

In Stock, Qty 17

0

34

Gravely 03475800

Nipple
(Superseded to 07000830)

$18.99

$

Usually ships in 4-12 days

0

35

Gravely 07023500

Elbow .375-18

$

$

Not available

36

Gravely 06909400

P-Clamp

$3.99

$

In Stock, only 2 left!

0

37

Gravely 06435900

Wshr-Fl-Stl .438 x 1.00 x .083
(Superseded to 06401008)

$1.99

$

In Stock, Qty 13

0

38

Gravely 09270000

Engine Base Weldment

$

$

Not available

39

Gravely 05958000

Blt-Hex .38-16 x 1.25 Gr 5
(Superseded to 05901724)

$1.99

$

In Stock, only 1 left!

0

40

Gravely 05962200

Blt-Hex .50-13 x 5.00 Gr 5
(Superseded to 05901905)

$5.99

$

In Stock, Qty 20+

0

41

Gravely 06537300

Nut-Hex .50-13
(Superseded to 06500814)

$4.99

$

Usually ships in 4-12 days

0
