992001 (Pro-Vac 1050) - Gravely Pro-Vac Vacuum, 18hp Kohler Command (SN: 000101 & Above) FRAME AND WHEELS Parts Diagram

Pro-Vac Vacuum, 18hp Kohler Command

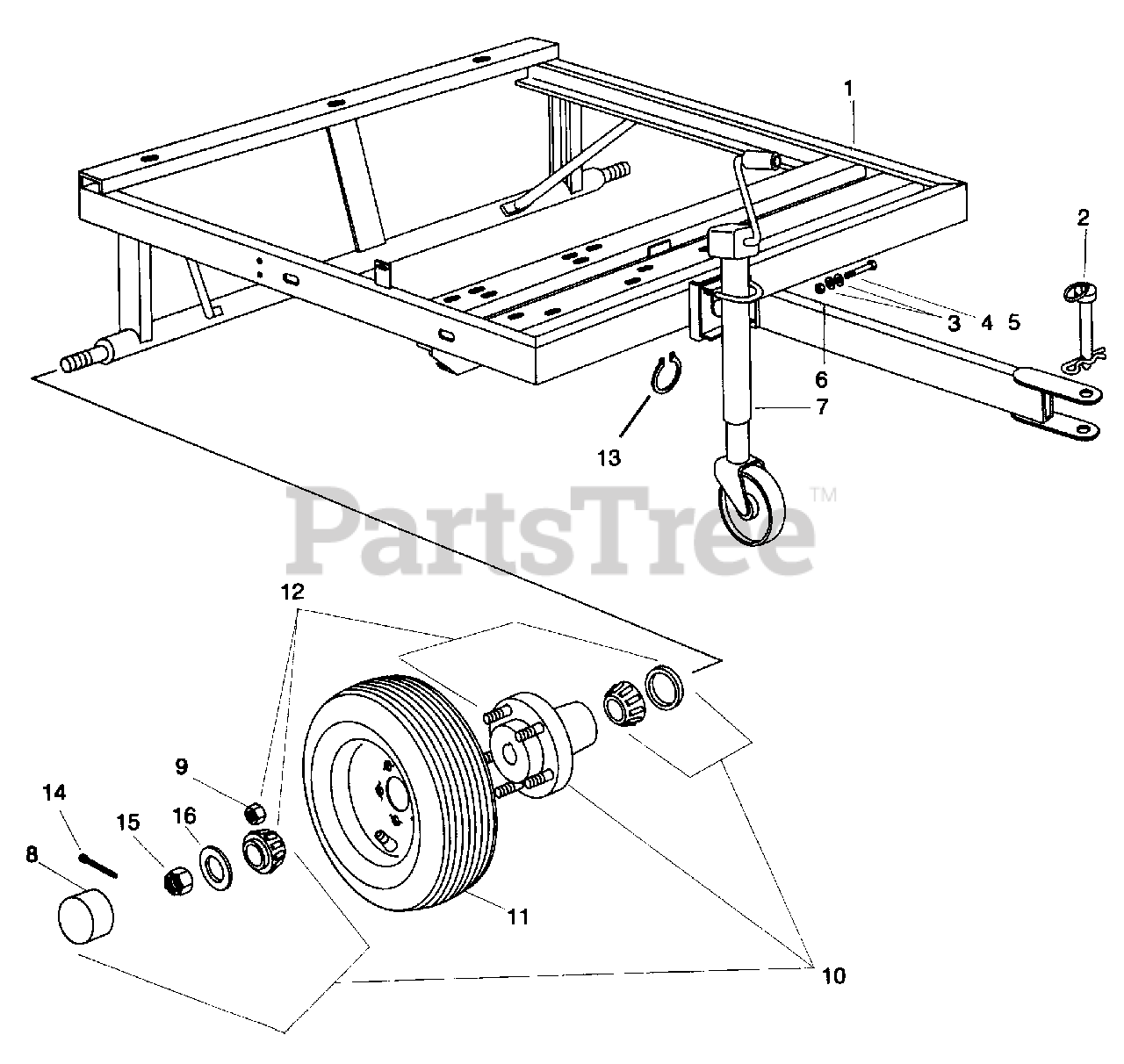

FRAME AND WHEELS Parts Diagram

  • Title

1

Gravely 04200100

FRAME WELDMENT

$

$

Not available

2

Gravely 09200100

HITCH PIN 1.00 INCH
(Superseded to 02087300)

$

$

Not available

3

Gravely 06442900

WSHR-FL-STL.688X1.75X.134 YWZ
(Superseded to 06401032)

$1.49

$

In Stock, Qty 13

0

4

Gravely 04963900

WELDMENT,DASH,LRG,QT2 HYDRO

$

$

Not available

5

Gravely 04200251

TONGUE WELDMENT (LOCKE VAC)

$

$

Not available

6

Gravely 06535300

NUT-LK-CTR .62-11 YWZC

$2.99

$

In Stock, only 2 left!

0

7

Gravely 04201300

JACK

$

$

Not available

8

Gravely 04207700

DUST CAP

$

$

Not available

9

Gravely 59200200

KIT LUG NUT

$

$

Not available

10

Gravely 59200100

KIT HUB COMPLETE 1050 VAC

$

$

Not available

11

Gravely 07136200

TIRE & WHEEL ASSEMBLY

$

$

Not available

12

Gravely 04201400

HUB ASSEMBLY

$

$

Not available

13

Gravely 05717900

RG-RTNG-EXT 2.50X.078

$

$

Not available

14

Gravely 06712600

PIN-CTR .12X1.25 EXTPRSQCT YZ
(Superseded to 06700212)

$0.99

$

In Stock, Qty 17

0

15

Gravely 06517600

WHEEL NUT .500-20 YZ
(Superseded to 06500926)

$1.99

$

In Stock, Qty 20+

0

16

Gravely 06427900

WSHR-FL-STL 2.0X1.12X.148 HDND

$6.49

$

Usually ships in 4-12 days

0
