992001 (Pro-Vac 1050) - Gravely Pro-Vac Vacuum, 18hp Kohler Command (SN: 000101 & Above) HOPPER Parts Diagram

Pro-Vac Vacuum, 18hp Kohler Command

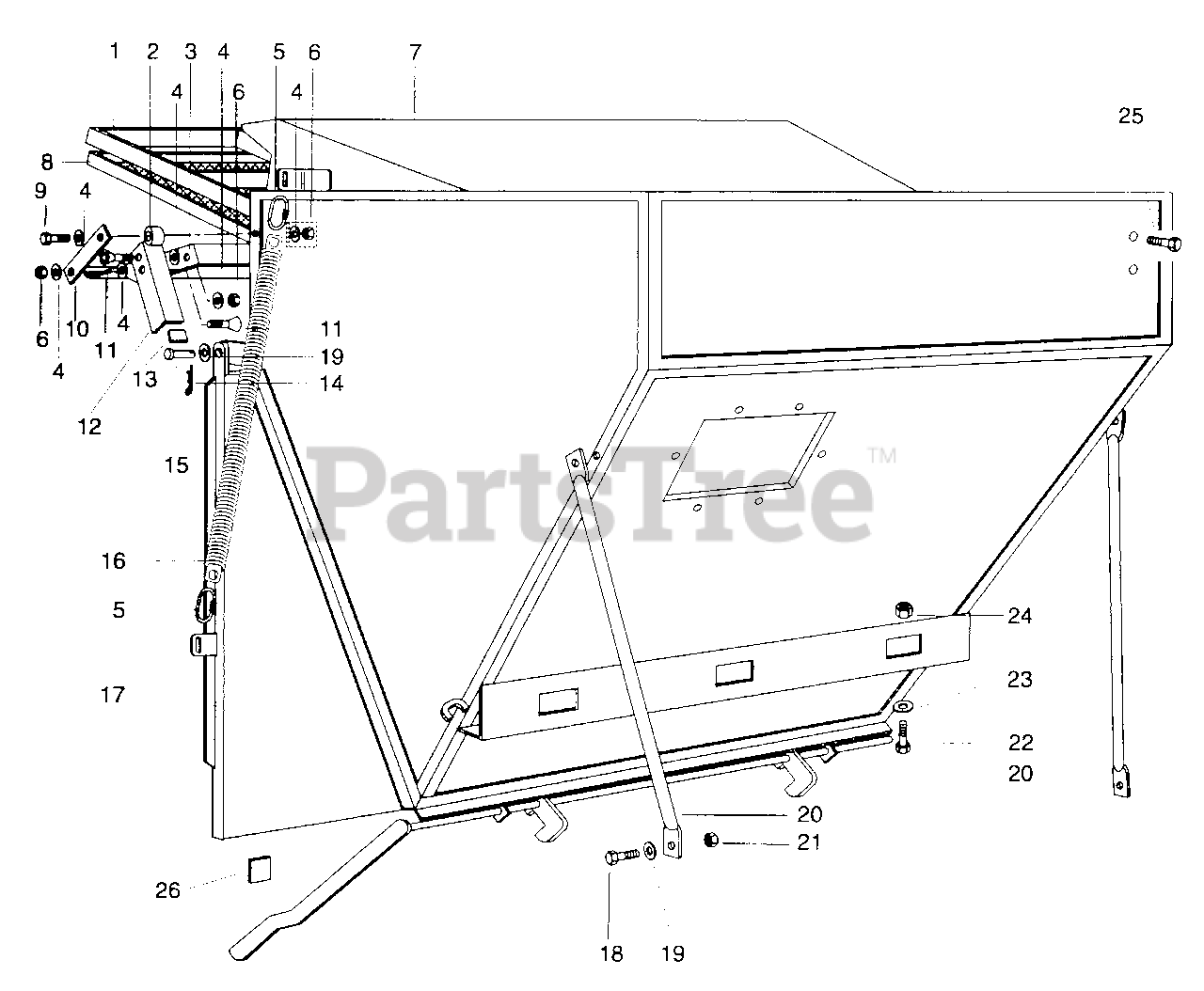

HOPPER Parts Diagram

  • Title

1

Gravely 04204551

GRID WELDMENT
(Superseded to 02084151)

$

$

Not available

2

Gravely 04204600

SCREEN DOOR LINK SPACER
(Superseded to 02084551)

$

$

Not available

3

Gravely 04205553

SCREEN DOOR WELDMENT
(Superseded to 04205500)

$

$

Not available

4

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

5

Gravely 04204200

1/4 QUICK LINK
(Superseded to 02084000)

$

$

Not available

6

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

7

Gravely 04203053

HOPPER WELDMENT
(Superseded to 04203000)

$

$

Not available

8

Gravely 04204400

SINGLE SCREEN
(Superseded to 02952900)

$

$

Not available

9

Gravely 05952400

BLT-HEX .31-18X1.50 GR5 YWZC
(Superseded to 05901710)

$1.99

$

In Stock, Qty 15

0

10

Gravely 04204951

FILTER DOOR LINKAGE
(Superseded to 02084851)

$

$

Not available

11

Gravely 06117100

SCR-MCH.31-18X1.0 FLTCNTRSK SS
(Superseded to 02221600)

$3.99

$

Usually ships in 4-12 days

0

12

Gravely 04204751

FILTER DOOR LATCH
(Superseded to 02084651)

$

$

Not available

Gravely 04204851

FILTER DOOR LATCH LH
(Superseded to 02084751)

$

$

Not available

13

Gravely 00915900

GASKET

$

$

Not available

14

Gravely 06707300

PIN-CTR .12X.75 EXTPRSQCT YWZ

$0.99

$

In Stock, Qty 6

0

15

Gravely 01330300

PIN-CLEV .373X1.12 YWZC

$

$

Not available

16

Gravely 04204100

SPRING
(Superseded to 08300351)

$

$

Not available

17

Gravely 04203153

DOOR WELDMENT
(Superseded to 04203100)

$

$

Not available

18

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

19

Gravely 06435900

WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.99

$

In Stock, Qty 20+

0

20

Gravely 04203853

HOPPER BRACE
(Superseded to 02083951)

$

$

Not available

21

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 05958900

BLT-HEX .50-13X1.25 GR5 YWZC
(Superseded to 05901637)

$3.49

$

In Stock, Qty 6

0

23

Gravely 06442000

WSHR-FL-STL.563X1.38X.109YWZC
(Superseded to 06401012)

$2.99

$

In Stock, Qty 20+

0

24

Gravely 06536300

NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$4.99

$

In Stock, Qty 18

0

25

Gravely 05947200

BLT-HEX .31-18X.50 GR5 YWZC
(Superseded to 05901904)

$1.99

$

In Stock, only 2 left!

0

26

Gravely 00916400

GASKET-FOAM W/ADHESIVE BACK
(Superseded to 02072000)

$

$

Not available
