992001 (Pro-Vac 1050) - Gravely Pro-Vac Vacuum, 18hp Kohler Command (SN: 000101 & Above) HOPPER Parts Diagram

Pro-Vac Vacuum, 18hp Kohler Command

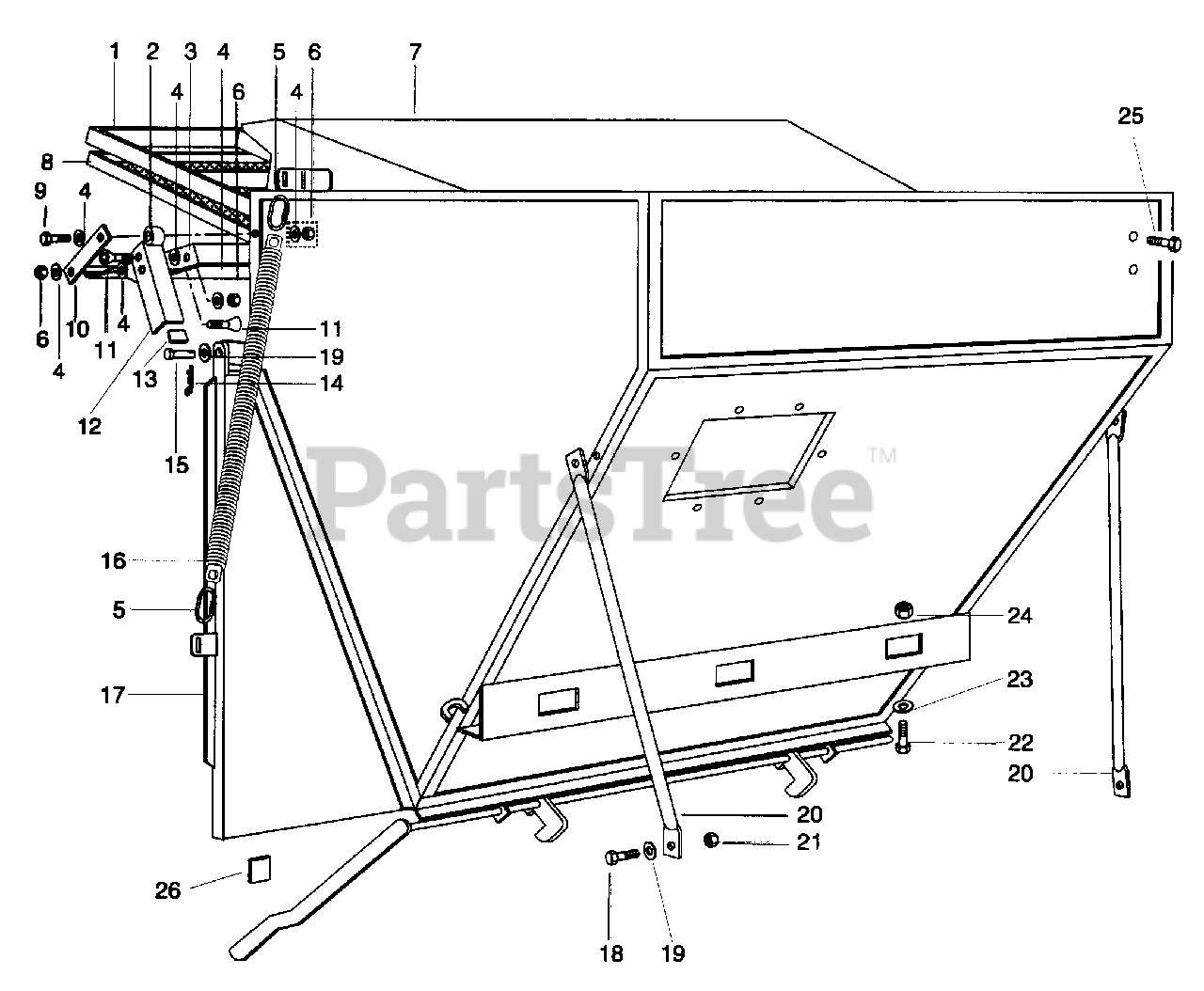

HOPPER Parts Diagram

  • Title

1

Gravely 04204551

Grid Weldment
(Superseded to 02084151)

$

$

Not available

2

Gravely 04204600

Screen Door Link Spacer
(Superseded to 02084551)

$

$

Not available

3

Gravely 04205553

Screen Door Weldment

$

$

Not available

4

Gravely 06435700

Wshr-Fl-Stl .38 x .875 x .083
(Superseded to 06401023)

$1.49

$

In Stock, Qty 14

0

5

Gravely 04204200

1/4 Quick Link
(Superseded to 02084000)

$15.99

$

Usually ships in 4-12 days

0

6

Gravely 06529800

Nut-Lk-Ctr .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 04203053

Hopper Weldment

$

$

Not available

8

Gravely 04204400

Single Screen
(Superseded to 02952900)

$

$

Not available

9

Gravely 05952400

Blt-Hex .31-18 x 1.50 Gr 5
(Superseded to 05901710)

$1.49

$

Usually ships in 4-12 days

0

10

Gravely 04204951

Filter Door Linkage
(Superseded to 02084851)

$

$

Not available

11

Gravely 06117100

Screw-Machine .31-18 x 1.00
(Superseded to 02221600)

$3.99

$

In Stock, only 1 left!

0

12

Gravely 04204751

Filter Door Latch RH
(Superseded to 02084651)

$

$

Not available

12

Gravely 04204851

Filler Door Latch LH
(Superseded to 02084751)

$

$

Not available

13

Gravely 00915900

Gasket

$

$

Not available

14

Gravely 06707300

Pin-Cotr .12 x .75

$0.99

$

In Stock, Qty 9

0

15

Gravely 01330300

Clevis Pin

$

$

Not available

16

Gravely 04204100

Spring
(Superseded to 08300351)

$

$

Not available

17

Gravely 04203153

Door Weldment

$

$

Not available

18

Gravely 05948700

Blt-Hex .38-16 x 1.00 Gr 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 06435900

Wshr-Fl-Stl .438 x 1.00 x .083
(Superseded to 06401008)

$1.49

$

In Stock, only 4 left!

0

20

Gravely 04203853

Hopper Brace
(Superseded to 02083951)

$

$

Not available

21

Gravely 06529600

Nut-Lk-Ctr .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 05958900

Blt-Hex .50-13 x 1.25 Gr S
(Superseded to 05901637)

$3.49

$

In Stock, only 1 left!

0

23

Gravely 06442000

Wshr-Fl-Stl .563 x 1.38 x .109
(Superseded to 06401012)

$3.49

$

In Stock, Qty 17

0

24

Gravely 06536300

Nut-Lk-Ctr .50-13
(Superseded to 06500827)

$3.99

$

In Stock, only 3 left!

0

25

Gravely 05947200

Blt-Hex .32-18 x .50 Gr 5
(Superseded to 05901904)

$1.49

$

In Stock, Qty 15

0

26

Gravely 00916400

Gasket
(Superseded to 02072000)

$

$

Not available
