992003 (PM 200) - Gravely Pro-Master 60" Zero-Turn Mower, 20hp Kohler (SN: 000101 - 000700) 60" MOWER DRIVE Parts Diagram

Pro-Master 60" Zero-Turn Mower, 20hp Kohler

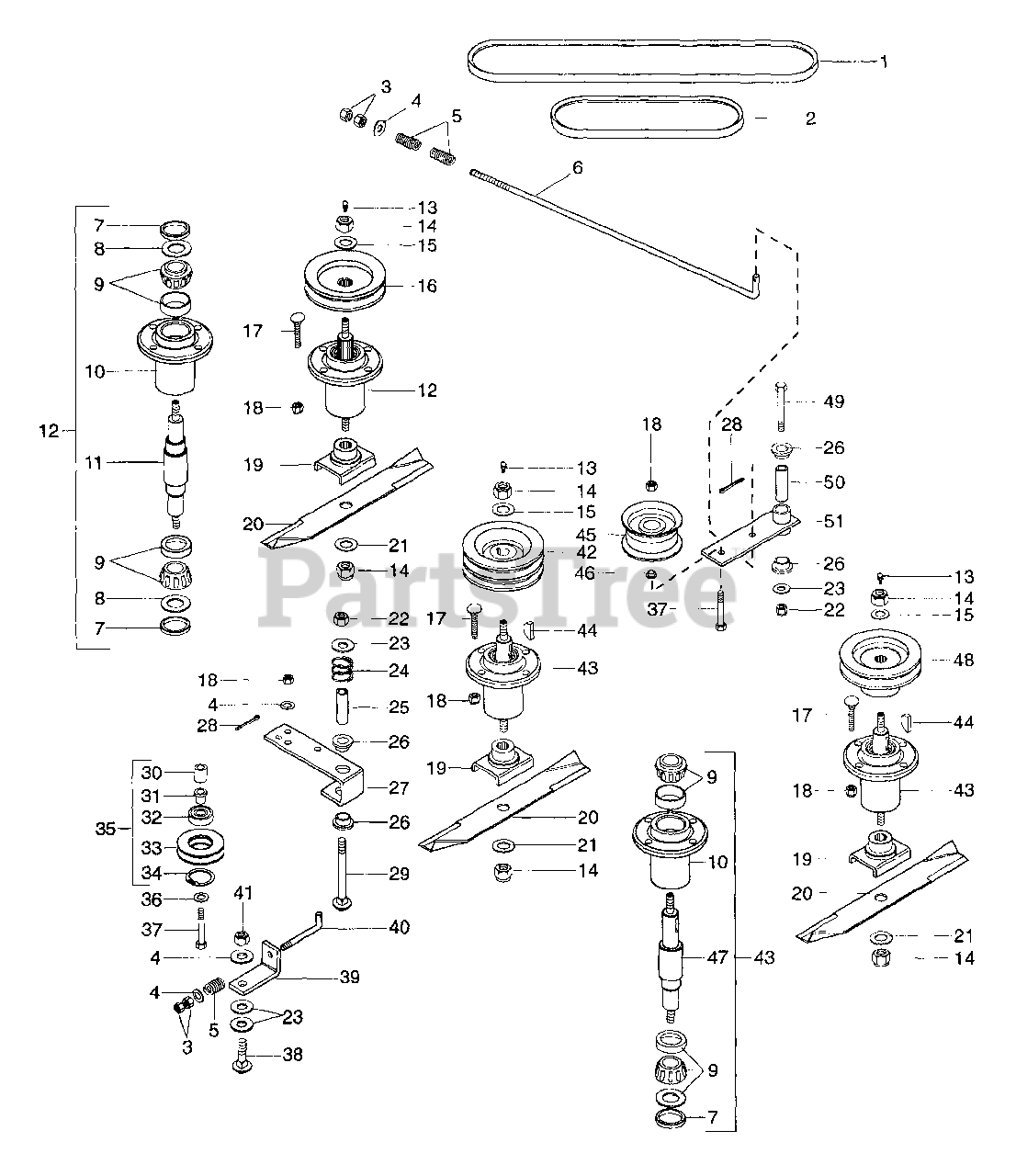

60" MOWER DRIVE Parts Diagram

  • Title

1

Gravely 072259

V-Belt A-RMA 47.00 x 17/32
(Superseded to 07225900)

$82.99

$

Usually ships in 4-12 days

0

2

Gravely 052974

V-Belt A-RMA 24.90 x .5001.031
(Superseded to 07224300)

$40.99

$

In Stock, only 1 left!

0

3

Gravely 120377

Nut-Hex .375-16 Grade 2
(Superseded to 06500917)

$0.99

$

In Stock, only 2 left!

0

4

Gravely 120394

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 011779

Spring-Compression .125 x .78 x 1.00
(Superseded to 08327000)

$15.99

$

In Stock, Qty 5

0

6

Gravely 092200

Rod, Idler
(Superseded to 09220000)

$

$

Not available

7

Gravely 021211

Steel Seal
(Superseded to 08722600)

$15.99

$

In Stock, Qty 11

0

8

Gravely 020743

Washer-Flat-Steel .97 x 1.865 x .03
(Superseded to 06426900)

$4.99

$

In Stock, Qty 20+

0

9

Gravely 038199

Assembly, Bearing Cup & Cone
(Superseded to 21245800)

$25.99

$

Usually ships in 4-12 days

0

10

Gravely 021215

Housing, Bearing
(Superseded to 08722700)

$134.99

$

Usually ships in 4-12 days

0

11

Gravely 021216

Shaft, Spindle
(Superseded to 58802800)

$85.99

$

In Stock, only 4 left!

0

12

Gravely 021306

Spindle, Assembly
(Superseded to 58803600)

$250.99

$

In Stock, only 1 left!

0

13

Gravely 411010

Fitting, Lube 1/8
(Superseded to 07012500)

$3.99

$

In Stock, only 4 left!

0

14

Gravely 418692

Nut-Locking-Nylon .625-11 Grade 2
(Superseded to 06540700)

$3.99

$

In Stock, Qty 16

0

15

Gravely 033845

Washer-Flat-Steel .687 x 1.312 x .135
(Superseded to 06427400)

$2.49

$

In Stock, only 2 left!

0

16

Gravely 031359

Pulley
(Superseded to 08895100)

$156.99

$

Usually ships in 4-12 days

0

17

Gravely 126406

Bolt-Round Head Square Neck .38-16 x 1.375
(Superseded to 06200416)

$3.99

$

In Stock, Qty 20+

0

18

Gravely 456004

Nut-Locking-Nylon .375-16 Grade 2
(Superseded to 06500831)

$2.49

$

In Stock, Qty 19

0

19

Gravely 047684

Weldment, Blade Cradle
(Superseded to 08798700)

$124.99

$

Usually ships in 4-12 days

0

20

Gravely 046999

Blade, 60 Inch Mower
(Superseded to 08979600)

$34.99

$

Usually ships in 4-12 days

0

21

Gravely 131016

Washer-Flat-Steel .656 x 1.312 x .095
(Superseded to 06401118)

$2.49

$

In Stock, Qty 20+

0

22

Gravely 414074

Nut-Locking .50-13
(Superseded to 06500827)

$3.99

$

In Stock, only 4 left!

0

23

Gravely 415543

Washer-Flat-Steel .531 x 1.250 x .100
(Superseded to 06441000)

$2.99

$

In Stock, Qty 16

0

24

Gravely 020444

Spring-Compression .085 x 1.00
(Superseded to 08329100)

$13.99

$

In Stock, only 2 left!

0

25

Gravely 034119

Bushing, Steel .560 x .750 x 2.44
(Superseded to 08820500)

$17.99

$

In Stock, only 2 left!

0

26

Gravely 010174

Bushing-Flange .762 x 1.0 x .580 x 1.48
(Superseded to 05518400)

$4.99

$

In Stock, Qty 20+

0

27

Gravely 034120

Arm, Idler Pivot
(Superseded to 08905900)

$82.99

$

In Stock, only 1 left!

0

28

Gravely 121224

Pin-Cotter .09 x 1.0

$0.99

$

Usually ships in 4-12 days

0

29

Gravely 126803

Bolt-Round Head Square Neck .50-16 x 3.50
(Superseded to 06218500)

$5.99

$

In Stock, only 1 left!

0

30

Gravely 042197

Bushing, Steel .406 x .625 x .480
(Superseded to 08836500)

$16.99

$

Usually ships in 4-12 days

0

31

Gravely 038897

Bushing-Flange .786 x 1.0 x .79
(Superseded to 05521500)

$21.99

$

Usually ships in 4-12 days

0

32

Gravely 038898

Bearing-Ball 1.85 x .787 x .55
(Superseded to 05425100)

$51.99

$

In Stock, only 2 left!

0

33

Gravely 038896

Sheave, Idler
(Superseded to 08744300)

$129.99

$

Usually ships in 4-12 days

0

34

Gravely 018960

Ring-Retaining-Internal 2.054 x .062
(Superseded to 05713100)

$3.99

$

Usually ships in 4-12 days

0

35

Gravely 038900

Assembly, Idler Sheave
(Superseded to 08930300)

$242.99

$

Usually ships in 4-12 days

0

36

Gravely 446470

Washer-Flat-Steel .375 x 1.125 x .065
(Superseded to 06401139)

$2.49

$

In Stock, Qty 6

0

37

Gravely 180132

Bolt-Hex .38-16 x 2.25 Grade 5
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

38

Gravely 126402

Bolt-Round Head Square Neck .38-16 x 1.25
(Superseded to 06200415)

$2.49

$

In Stock, Qty 20+

0

39

Gravely 038713

Bracket, Belt Tensioner
(Superseded to 08928800)

$

$

Not available

40

Gravely 049367

Rod, Idler
(Superseded to 08812600)

$109.99

$

Usually ships in 4-12 days

0

41

Gravely 456004

Nut-Locking-Nylon .375-16 Grade 2
(Superseded to 06500831)

$2.49

$

In Stock, Qty 19

0

42

Gravely 042195

Sheave, Mower Spindle
(Superseded to 08817200)

$

$

Not available

43

Gravely 034605

Assembly, Spindle
(Superseded to 58803600)

$250.99

$

In Stock, only 1 left!

0

44

Gravely 124553

Key, Woodruff .25 x 1
(Superseded to 06608900)

$3.99

$

In Stock, Qty 20+

0

45

Gravely 034286

Idler-Flat 4-.687 x .38
(Superseded to 07327800)

$79.99

$

In Stock, Qty 17

0

46

Gravely 024815

Bushing-Flange .406 x .88 x .270 x .140
(Superseded to 05515800)

$9.49

$

In Stock, Qty 9

0

47

Gravely 034603

Shaft, Spindle
(Superseded to 58802900)

$125.99

$

In Stock, only 1 left!

0

48

Gravely 034936

Sheave
(Superseded to 08804400)

$387.99

$

Usually ships in 4-12 days

0

49

Gravely 180190

Bolt-Hex .50-13 x 3.00
(Superseded to 05901737)

$4.99

$

In Stock, Qty 10

0

50

Gravely 034938

Bushing, Steel .560 x .745 x 2.04
(Superseded to 08818500)

$34.99

$

Usually ships in 4-12 days

0

51

Gravely 092220

Weldment, Idler Arm
(Superseded to 09222051)

$11.99

$

Usually ships in 4-12 days

0
