992003 (PM 200) - Gravely Pro-Master 60" Zero-Turn Mower, 20hp Kohler (SN: 000101 - 000700) FRAME Parts Diagram

Pro-Master 60" Zero-Turn Mower, 20hp Kohler

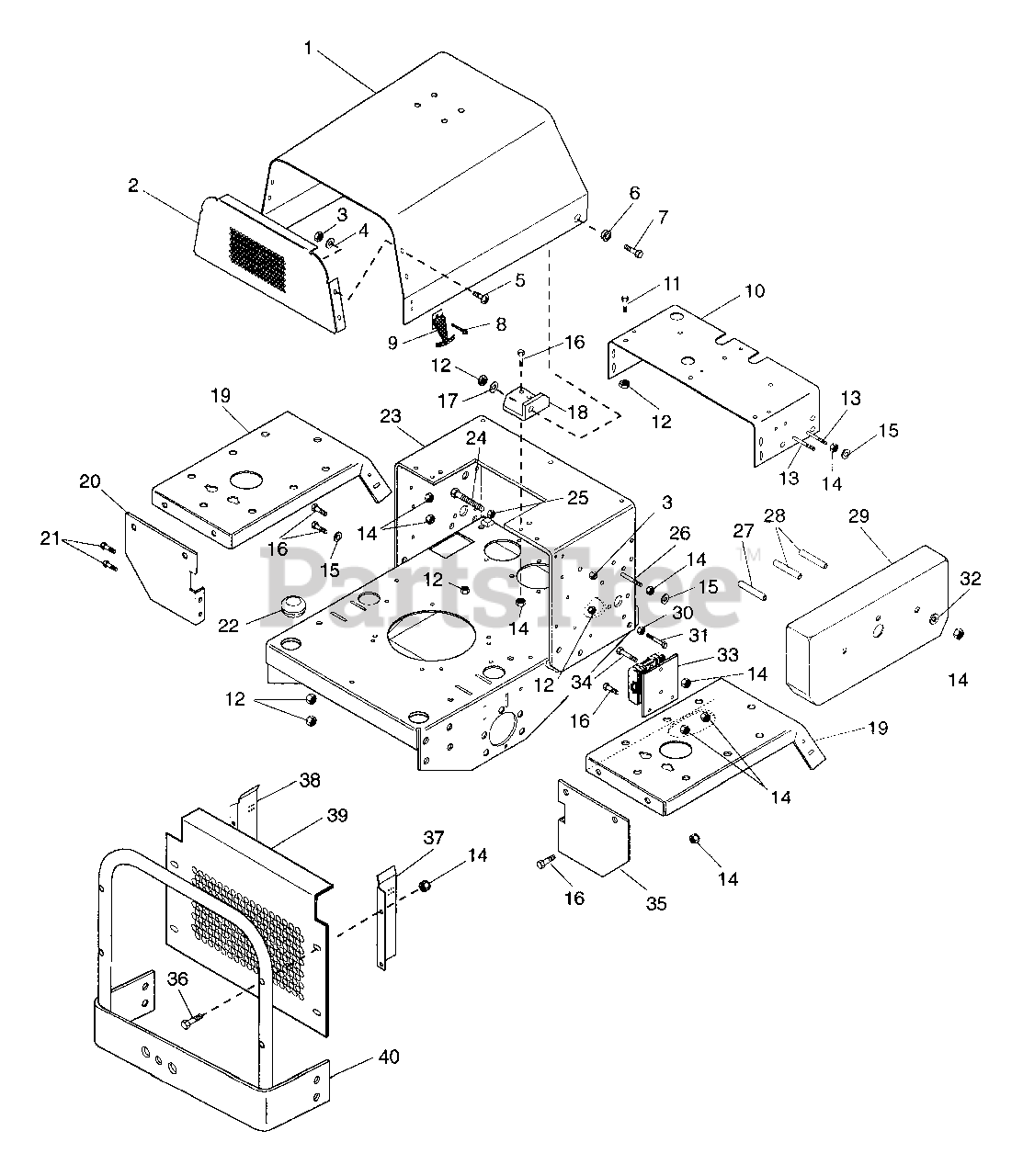

FRAME Parts Diagram

  • Title

1

Gravely 092228

HOOD, ENGINE
(Superseded to 09222853)

Note: (005)

$

$

Not available

2

Gravely 092230

GRILLE, HOOD
(Superseded to 09223051)

Note: (005)

$

$

Not available

3

Gravely 419454

NUT-LK-NYL .250-20 YWZC
(Superseded to 06500832)

Note: (003,004,301)

$5.49

$

In Stock, Qty 12

0

Gravely 419454

NUT-LK-NYL .250-20 YWZC
(Superseded to 06500832)

Note: (005,006)

$5.49

$

In Stock, Qty 12

0

4

Gravely 064127

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

Note: (005,006)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 061135

SCR-MCH .25-20 PAN HD
(Superseded to 06113500)

Note: (005,006)

$2.99

$

Usually ships in 4-12 days

0

6

Gravely 055158

BSHG-FLG .406X.88X.270X.140
(Superseded to 05515800)

Note: (005,006)

$9.99

$

In Stock, Qty 15

0

7

Gravely 059145

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

Note: (005,006)

$1.99

$

In Stock, Qty 20+

0

8

Gravely 032661

RVT-STEEL
(Superseded to 06807500)

Note: (005,006)

$

$

Not available

9

Gravely 035294

LATCH,FLEXIBLE
(Superseded to 08704700)

Note: (005,006)

$26.99

$

Usually ships in 4-12 days

0

10

Gravely 092094

INST PANEL W/ DECAL
(Superseded to 59200500)

$

$

Not available

11

Gravely 059145

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

12

Gravely 456004

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

Note: (003,004,301)

$3.49

$

In Stock, Qty 20+

0

Gravely 456004

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

Note: (005,006)

$3.49

$

In Stock, Qty 20+

0

13

Gravely 05928200

BLT-HEX .31-18X4.00 PL GR5
(Superseded to 05901834)

$3.99

$

In Stock, only 2 left!

0

14

Gravely 065062

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

Note: (003,004,301)

$1.49

$

In Stock, Qty 5

0

Gravely 065062

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

Note: (005,006)

$1.49

$

In Stock, Qty 5

0

15

Gravely 064123

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 059135

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

Note: (003,004,301)

$1.99

$

In Stock, Qty 20+

0

Gravely 059135

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

Note: (005,006)

$1.99

$

In Stock, Qty 20+

0

17

Gravely 064043

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

Note: (005,006)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 092234

BRKT, HOOD MTG. R.H.
(Superseded to 09223453)

Note: (005,006)

$

$

Not available

Gravely 092235

BRKT, HOOD MTG L.H.
(Superseded to 09223553)

Note: (005,006)

$

$

Not available

19

Gravely 092023

FENDER PM200
(Superseded to 09202353)

$

$

Not available

20

Gravely 092025

SUPPORT, FENDER L.H.
(Superseded to 09202553)

$

$

Not available

21

Gravely 180124

BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.99

$

In Stock, Qty 20+

0

22

Gravely 075366

GRMT (2.50 HOLE, .187 MAT'L)
(Superseded to 07536600)

$

$

Not available

23

Gravely 092002

WLDM'T FRAME PM200
(Superseded to 09200253)

$387.99

$

Usually ships in 4-12 days

0

24

Gravely 059343

BLT-HEX .25-20X3.00 YWZC
(Superseded to 05966300)

$2.99

$

Usually ships in 4-12 days

0

25

Gravely 065032

NUT-HEX .25-20 YWZC
(Superseded to 06500916)

$0.99

$

In Stock, Qty 10

0

26

Gravely 05910100

BLT-HEX .31-18X3.75 PL GR2
(Superseded to 05901936)

$3.49

$

Usually ships in 4-12 days

0

27

Gravely 091084

SPACER .328X.462X2.50
(Superseded to 09108400)

$3.49

$

Usually ships in 4-12 days

0

28

Gravely 091083

SPACER .328X.462X2.75
(Superseded to 09108300)

$3.49

$

Usually ships in 4-12 days

0

29

Gravely 091082

GUARD, LINKAGE
(Superseded to 09108200)

$

$

Not available

30

Gravely 120377

NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$1.49

$

In Stock, Qty 20+

0

31

Gravely 180138

BLT-HEX .38-16X3.00 GR5 YWZC
(Superseded to 05901814)

$2.99

$

In Stock, Qty 13

0

32

Gravely 446354

WSHR-FL-STL .313X.875X.065
(Superseded to 06430700)

$

$

Not available

33

Gravely 092241

PLATE, REG-RECT MTG.
(Superseded to 09224151)

Note: (005,006)

$

$

Not available

34

Gravely 059134

BLT-HEX .31-18X1.25 GR5 YWZC
(Superseded to 05901803)

Note: (005,006)

$2.99

$

In Stock, Qty 11

0

35

Gravely 092024

SUPPORT, FENDER R.H.
(Superseded to 09202453)

$

$

Not available

36

Gravely 059140

BLT-HEX .31-18X1.50 GR5 YWZC
(Superseded to 05901710)

Note: (005,006)

$1.99

$

In Stock, Qty 15

0

37

Gravely 092239

IDLER TRACK, SEAT
(Superseded to 09553900)

Note: (005,006)

$

$

Not available

38

Gravely 092240

BRKT, HOOD LATCH (L.H.)
(Superseded to 09224051)

Note: (005,006)

$

$

Not available

39

Gravely 092236

BRKT, HOOD SUPPORT
(Superseded to 09223651)

Note: (005,006)

$

$

Not available

40

Gravely 092037

WLDM'T REAR GUARD
(Superseded to 09203751)

$

$

Not available
