992003 (PM 200) - Gravely Pro-Master 60" Zero-Turn Mower, 20hp Kohler (SN: 000701 & Above) ELECTRICAL SYSTEM Parts Diagram

Pro-Master 60" Zero-Turn Mower, 20hp Kohler

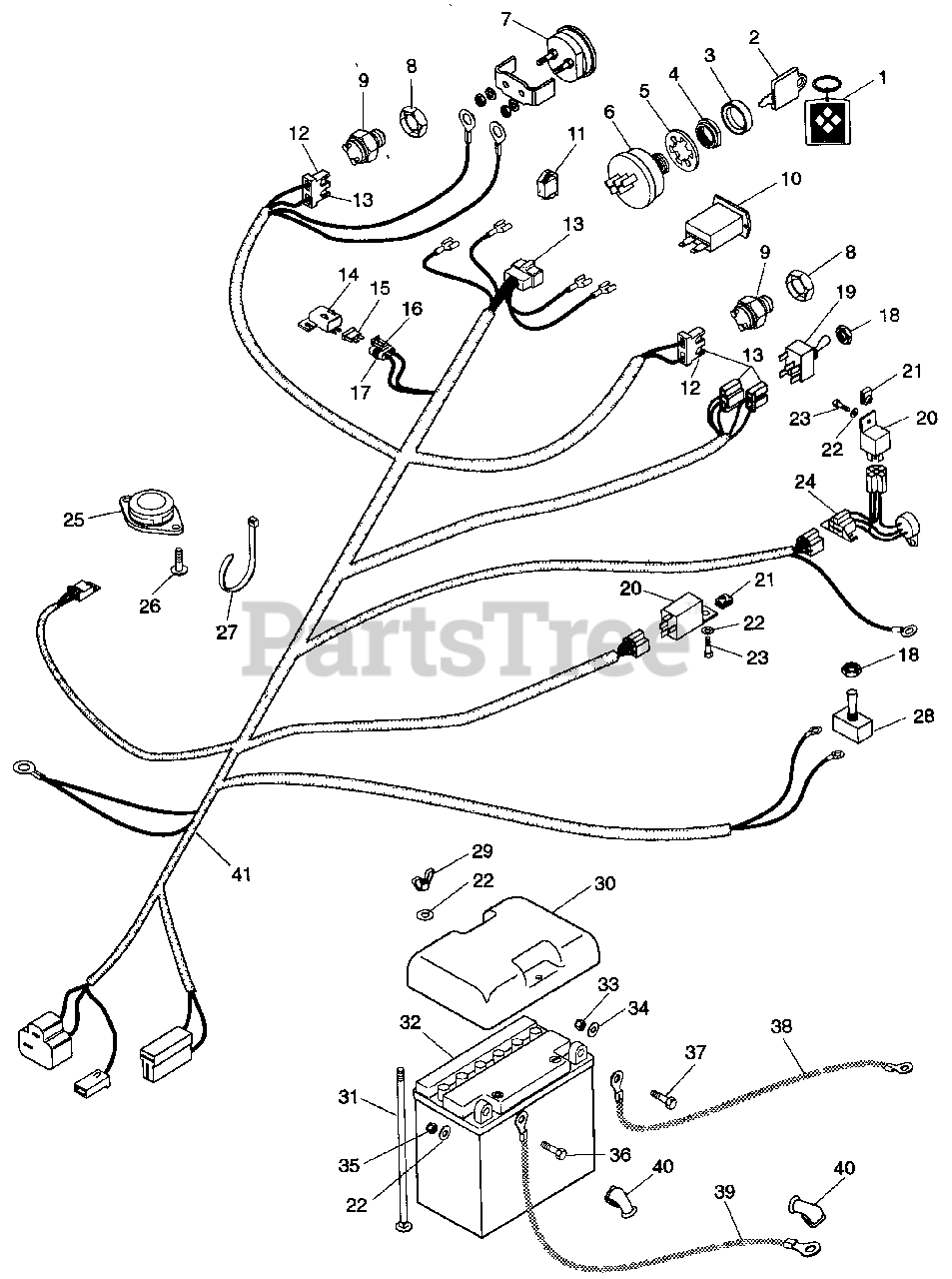

ELECTRICAL SYSTEM Parts Diagram

  • Title

1

Gravely 045842

KEY CHAIN
(Superseded to 03490000)

$

$

Not available

2

Gravely 045488

IGNITION SWITCH KEY
(Superseded to 02460700)

$7.99

$

In Stock, Qty 16

0

3

Gravely 045490

CAP-IGNITION SWITCH
(Superseded to 07517700)

$3.99

$

In Stock, Qty 9

0

4

Gravely 045489

NUT-PANEL .562-24 GRECO
(Superseded to 06517400)

$13.99

$

In Stock, only 1 left!

0

5

Gravely 019667

WSHR-LOCK INT .563 X .040 PL
(Superseded to 06310900)

$2.49

$

In Stock, only 4 left!

0

6

Gravely 019223

IGNITION SWITCH
(Superseded to 59211800)

$68.99

$

In Stock, Qty 5

0

7

Gravely 021848

GAUGE-AMMETER
(Superseded to 03490800)

$

$

Not available

8

Gravely 107354

NUT, STAMPED .56-18
(Superseded to 07015100)

$3.99

$

Usually ships in 4-12 days

0

9

Gravely 020916

SWITCH, NEUTRA START N.O.
(Superseded to 02913100)

$45.99

$

In Stock, only 1 left!

0

10

Gravely 038256

HOUR METER
(Superseded to 09497400)

$22.99

$

In Stock, only 1 left!

0

11

Gravely 050673

LIGHT, INDICATOR
(Superseded to 05128700)

$11.99

$

Usually ships in 4-12 days

0

12

Gravely 042176

CONN 2-WIRE SWITCH
(Superseded to 08550000)

$3.49

$

Usually ships in 4-12 days

0

13

Gravely 038059

TERMINAL
(Superseded to 08540001)

$3.99

$

In Stock, only 4 left!

0

14

Gravely 045921

COVER
(Superseded to 20822800)

$

$

Not available

15

Gravely 045037

FUSE, 25 AMP
(Superseded to 08961800)

$3.99

$

In Stock, Qty 9

0

16

Gravely 045920

ASM, CONN WEATHER TIGHT
(Superseded to 20822700)

$

$

Not available

17

Gravely 045923

TERM, FOR 10-12 GA WIRE
(Superseded to 20823001)

$3.99

$

Usually ships in 4-12 days

0

18

Gravely 045987

NUT .50-27
(Superseded to 06520700)

$5.99

$

Usually ships in 4-12 days

0

19

Gravely 045848

SWITCH ASSEMBLY
(Superseded to 03454900)

$56.99

$

Usually ships in 4-12 days

0

20

Gravely 040216

RELAY
(Superseded to 00432101)

$20.99

$

In Stock, Qty 20+

0

21

Gravely 011676

NUT-SPEED .25-20
(Superseded to 07016800)

$

$

Not available

22

Gravely 050365

WSHR-FL-STL .281 X .62 X .065 PL
(Superseded to 06401001)

$0.99

$

In Stock, Qty 16

0

23

Gravely 180018

BLT-HEX .25-20 X .63
(Superseded to 05932000)

$1.99

$

In Stock, only 1 left!

0

24

Gravely 040313

MODULE, TIME DELAY
(Superseded to 59000300)

$137.99

$

Usually ships in 4-12 days

0

25

Gravely 045036

SEAT SWITCH
(Superseded to 03490500)

$15.99

$

Usually ships in 4-12 days

0

26

Gravely 160515

SCR-MCH .25-20 X .50
(Superseded to 06110900)

$2.49

$

Usually ships in 4-12 days

0

27

Gravely 041634

TIE WRAP, BLACK
(Superseded to 07519900)

$3.49

$

Usually ships in 4-12 days

0

28

Gravely 034379

SWITCH ASSEMBLY
(Superseded to 03437900)

$71.99

$

Usually ships in 4-12 days

0

29

Gravely 010413

NUT-WING .250-20
(Superseded to 06537500)

$4.99

$

In Stock, Qty 9

0

30

Gravely 044348

CVR, BATTERY
(Superseded to 04912900)

$11.99

$

In Stock, only 2 left!

0

31

Gravely 126992

BLT-RDHDSQNK .25-20 X 7.00

$

$

Not available

32

Gravely 785093

12 VOLT BATTERY

$

$

Not available

33

Gravely 419455

NUT-LK-NYL .312-18 PL
(Superseded to 06500820)

$0.99

$

Usually ships in 4-12 days

0

34

Gravely 064123

WSHR-FL-STL .344 X .688 X .065 PL
(Superseded to 06401017)

$0.99

$

In Stock, Qty 9

0

35

Gravely 419454

NUT-LK-NYL .250-20 PL
(Superseded to 06500832)

$4.99

$

In Stock, only 2 left!

0

36

Gravely 180020

BLT-HEX .25-20 X .75 PL GR 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 12

0

37

Gravely 180079

BLT-HEX .31-18 X 1.00 PL GR 5
(Superseded to 05901701)

$1.49

$

In Stock, Qty 8

0

38

Gravely 088404

CBL, NEGATIVE BATTERY
(Superseded to 08840400)

$17.99

$

Usually ships in 4-12 days

0

39

Gravely 042129

CABLE, BATTERY TO SOLENOID
(Superseded to 08816700)

$

$

Not available

40

Gravely 033847

BOOT INSULATOR
(Superseded to 03384700)

$

$

Not available

41

Gravely 09201600

HARNESS, WIRING

$

$

Not available
