992004 (PM 200) - Gravely Pro-Master 50" Zero-Turn Mower, 20hp Kohler (SN: 000101 - 000425) ELECTRIC SYSTEM Parts Diagram

Pro-Master 50" Zero-Turn Mower, 20hp Kohler

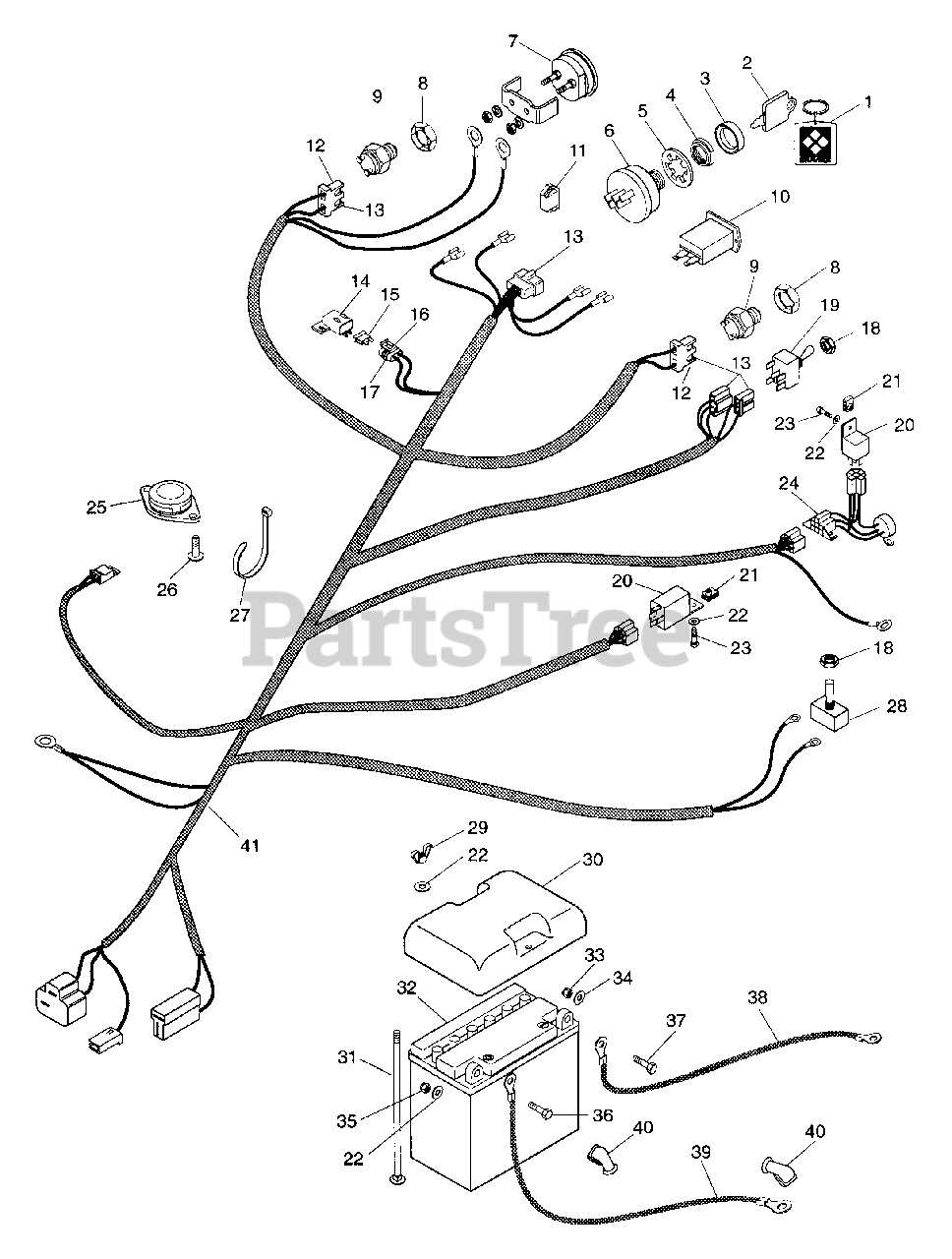

ELECTRIC SYSTEM Parts Diagram

  • Title

1

Gravely 045842

KEY CHAIN
(Superseded to 03490000)

$

$

Not available

2

Gravely 045488

KEY -W/CAP
(Superseded to 02460700)

$10.99

$

In Stock, Qty 20+

0

3

Gravely 045490

CAP - IGNITION SWITCH
(Superseded to 07517700)

$3.99

$

In Stock, Qty 12

0

4

Gravely 045489

NUT- PANEL .562-24 GRECO
(Superseded to 06517400)

$21.99

$

In Stock, Qty 6

0

5

Gravely 019667

WSHR-LK-INT .563X.040 YWZC
(Superseded to 06310900)

$2.49

$

In Stock, only 1 left!

0

6

Gravely 019223

IGNITION SWITCH WITH KEY
(Superseded to 59211800)

$70.99

$

In Stock, Qty 9

0

7

Gravely 021848

08761300AMMETER
(Superseded to 03490800)

$

$

Not available

8

Gravely 107354

NUT-STAMPED .56-18
(Superseded to 07015100)

$3.99

$

Usually ships in 4-12 days

0

9

Gravely 020916

SWITCH-NEUTRAL START N.O.
(Superseded to 02913100)

$46.99

$

In Stock, only 2 left!

0

10

Gravely 038256

METER, HOUR W/MAINTENANCE
(Superseded to 09497400)

$25.99

$

In Stock, Qty 16

0

11

Gravely 050673

LIGHT, INDICATOR (RED)
(Superseded to 05128700)

Note: (003,004,301)

$7.99

$

In Stock, Qty 9

0

Gravely 050673

LIGHT, INDICATOR (RED)
(Superseded to 05128700)

Note: (005,006)

$7.99

$

In Stock, Qty 9

0

12

Gravely 042176

CONN,2-WIRE SWITCH
(Superseded to 08550000)

$3.99

$

Usually ships in 4-12 days

0

13

Gravely 038059

TERMINAL
(Superseded to 08540001)

$4.49

$

In Stock, Qty 5

0

14

Gravely 045921

COVER
(Superseded to 20822800)

$

$

Not available

15

Gravely 045037

FUSE,25 AMP
(Superseded to 08961800)

$3.99

$

In Stock, Qty 12

0

16

Gravely 045920

ASM,CONN WEATHER TIGHT
(Superseded to 20822700)

$

$

Not available

17

Gravely 045923

TERM.,FOR 10-12 GA WIRE
(Superseded to 20823001)

$3.99

$

Usually ships in 4-12 days

0

18

Gravely 045987

NUT .50-28
(Superseded to 06520700)

$

$

Not available

19

Gravely 045848

SWITCH ASSEMBLY
(Superseded to 03454900)

$58.99

$

In Stock, only 2 left!

0

20

Gravely 040216

RELAY,SEALED W/DIODE
(Superseded to 00432101)

$25.99

$

In Stock, Qty 20+

0

21

Gravely 011676

NUT-SPEED .25-20
(Superseded to 07016800)

$

$

Not available

22

Gravely 050365

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

23

Gravely 180018

BLT-HEX .25-20X.63
(Superseded to 05932000)

$2.49

$

Usually ships in 4-12 days

0

24

Gravely 040313

KIT,INTERLOCK MODULE,DELAY
(Superseded to 59000300)

Note: (003,004,301)

$140.99

$

In Stock, only 1 left!

0

Gravely 040215

KIT,INTERLOCK MODULE,DELAY
(Superseded to 59000400)

Note: (005,006)

$193.99

$

Usually ships in 4-12 days

0

25

Gravely 045036

SEAT SWITCH
(Superseded to 03490500)

$16.99

$

In Stock, only 1 left!

0

26

Gravely 160515

SCR-MCH .25-20X.50
(Superseded to 06110900)

$2.49

$

Usually ships in 4-12 days

0

27

Gravely 041634

TIE WRAP, BLACK LG 7.31
(Superseded to 07519900)

$3.99

$

Usually ships in 4-12 days

0

28

Gravely 034379

SWITCH ASSEMBLY
(Superseded to 03437900)

$73.99

$

Usually ships in 4-12 days

0

29

Gravely 010413

NUT-LK WING .250-20 YWZC
(Superseded to 06537500)

$5.49

$

In Stock, Qty 20+

0

30

Gravely 044348

COVER, BATTERY
(Superseded to 04912900)

$11.99

$

In Stock, only 2 left!

0

31

Gravely 126992

Bolt-Round Head Square Neck .25-20 x 7.00

$

$

Not available

32

Gravely 785093

BATTERY

Note: (8 HP)

$

$

Not available

33

Gravely 419455

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.49

$

In Stock, Qty 5

0

34

Gravely 064123

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

35

Gravely 419454

NUT-LK-NYL .250-20 YWZC
(Superseded to 06500832)

$5.49

$

In Stock, Qty 12

0

36

Gravely 180020

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, only 3 left!

0

37

Gravely 180079

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.99

$

In Stock, Qty 20+

0

38

Gravely 088404

CBL,NEGATIVE BATTERY 20.00
(Superseded to 08840400)

Note: (003,004,301)

$18.99

$

Usually ships in 4-12 days

0

Gravely 092227

CABLE-NEGATIVE BATTERY 35.00"
(Superseded to 03288200)

Note: (005,006)

$26.99

$

Usually ships in 4-12 days

0

39

Gravely 042129

CABLE, BATTERY TO SLND
(Superseded to 08816700)

Note: (003,004,301)

$

$

Not available

Gravely 092226

CBL, POSITIVE BATT. 44.5"LG
(Superseded to 09222600)

Note: (005,006)

$

$

Not available

40

Gravely 033847

BOOT, INSULATOR
(Superseded to 03384700)

$

$

Not available

41

Gravely 09201600

HARNESS, WIRING (KOHLER CV20)

Note: (003,004,301)

$

$

Not available

Gravely 092222

HARNESS, WIRING (FD590V KAW)

Note: (005,006)

$

$

Not available
