992004 (PM 200) - Gravely Pro-Master 50" Zero-Turn Mower, 20hp Kohler (SN: 000101 - 000425) ELECTRIC SYSTEM Parts Diagram

Pro-Master 50" Zero-Turn Mower, 20hp Kohler

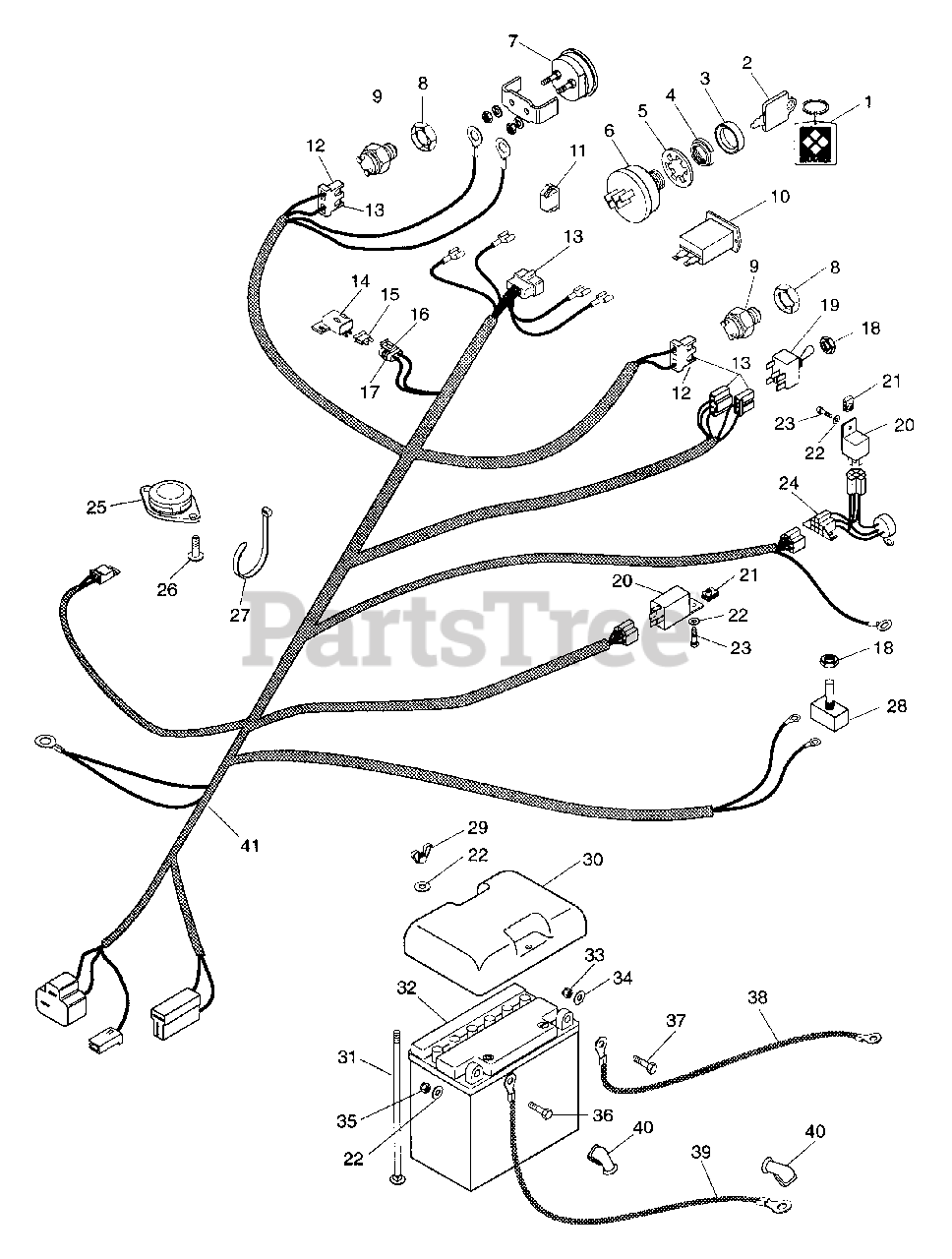

ELECTRIC SYSTEM Parts Diagram

  • Title

1

Gravely 045842

Key Chain
(Superseded to 03490000)

$

$

Not available

2

Gravely 045488

Ignition Switch Key
(Superseded to 02460700)

$7.99

$

In Stock, Qty 20+

0

3

Gravely 045490

Cap-Ignition Switch
(Superseded to 07517700)

$3.99

$

In Stock, Qty 9

0

4

Gravely 045489

Nut-Panel .562-24
(Superseded to 06517400)

$13.99

$

In Stock, only 1 left!

0

5

Gravely 019667

Washer-Lock Internal .563 x .040
(Superseded to 06310900)

$2.49

$

In Stock, only 4 left!

0

6

Gravely 019223

Ignition Switch
(Superseded to 59211800)

$68.99

$

In Stock, Qty 5

0

7

Gravely 021848

Gauge-Ammeter
(Superseded to 03490800)

$

$

Not available

8

Gravely 107354

Nut-Stamped .56-18
(Superseded to 07015100)

$3.99

$

Usually ships in 4-12 days

0

9

Gravely 020916

Switch, Neutral Start N.O.
(Superseded to 02913100)

$45.99

$

In Stock, only 1 left!

0

10

Gravely 038256

Hour Meter
(Superseded to 09497400)

$22.99

$

In Stock, only 4 left!

0

11

Gravely 050673

Light, Indicator
(Superseded to 05128700)

Note: (003,004,301)

$11.99

$

In Stock, only 2 left!

0

11

Gravely 050673

Light, Indicator
(Superseded to 05128700)

Note: (005,006)

$11.99

$

In Stock, only 2 left!

0

12

Gravely 042176

Connector, 2-Wire Switch
(Superseded to 08550000)

$3.49

$

Usually ships in 4-12 days

0

13

Gravely 038059

Terminal
(Superseded to 08540001)

$3.99

$

In Stock, only 1 left!

0

14

Gravely 045921

Cover
(Superseded to 20822800)

$

$

Not available

15

Gravely 045037

Fuse, 25 AMP
(Superseded to 08961800)

$3.99

$

In Stock, Qty 11

0

16

Gravely 045920

Assembly, Connector Weather Tight
(Superseded to 20822700)

$

$

Not available

17

Gravely 045923

Terminal, For 10-12 Ga Wire
(Superseded to 20823001)

$3.99

$

Usually ships in 4-12 days

0

18

Gravely 045987

Nut .50-27
(Superseded to 06520700)

$5.99

$

Usually ships in 4-12 days

0

19

Gravely 045848

Switch Assembly
(Superseded to 03454900)

$56.99

$

In Stock, only 1 left!

0

20

Gravely 040216

Relay
(Superseded to 00432101)

$20.99

$

In Stock, Qty 20+

0

21

Gravely 011676

Nut-Speed .25-20
(Superseded to 07016800)

$

$

Not available

22

Gravely 050365

Washer-Flat-Steel .382 x 1.25 x .134
(Superseded to 06401001)

$0.99

$

In Stock, Qty 15

0

23

Gravely 180018

Bolt-Hex .25-20 x .63
(Superseded to 05932000)

$1.99

$

In Stock, only 1 left!

0

24

Gravely 040313

Module, Time Delay
(Superseded to 59000300)

Note: (003,004,301)

$137.99

$

Usually ships in 4-12 days

0

24

Gravely 040215

Module, Time Delay
(Superseded to 59000400)

Note: (005,006)

$185.99

$

Usually ships in 4-12 days

0

25

Gravely 045036

Seat Switch
(Superseded to 03490500)

$15.99

$

Usually ships in 4-12 days

0

26

Gravely 160515

Screw-Machine .25-20 x .50
(Superseded to 06110900)

$2.49

$

Usually ships in 4-12 days

0

27

Gravely 041634

Tie Wrap, Black
(Superseded to 07519900)

$3.49

$

Usually ships in 4-12 days

0

28

Gravely 034379

Switch Assembly
(Superseded to 03437900)

$71.99

$

Usually ships in 4-12 days

0

29

Gravely 010413

Nut-Wing .250-20
(Superseded to 06537500)

$4.99

$

In Stock, Qty 11

0

30

Gravely 044348

Cover, Battery
(Superseded to 04912900)

$11.99

$

In Stock, only 2 left!

0

31

Gravely 126992

Bolt-Round Head Square Neck .25-20 x 7.00

$

$

Not available

32

Gravely 785093

12 Volt Battery

Note: (8 HP)

$

$

Not available

33

Gravely 419455

Nut-Locking-Nylon .312-18 Grade 2
(Superseded to 06500820)

$0.99

$

Usually ships in 4-12 days

0

34

Gravely 064123

Washer-Flat-Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, only 3 left!

0

35

Gravely 419454

Nut-Locking-Nylon .250-20 Grade 2
(Superseded to 06500832)

$4.99

$

In Stock, only 2 left!

0

36

Gravely 180020

Bolt-Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 12

0

37

Gravely 180079

Bolt-Hex .31-18 x 1.00 Grade 5
(Superseded to 05901701)

$1.49

$

In Stock, Qty 11

0

38

Gravely 088404

Cable, Negative Battery
(Superseded to 08840400)

Note: (003,004,301)

$17.99

$

Usually ships in 4-12 days

0

38

Gravely 092227

Cable, Negative Battery
(Superseded to 03288200)

Note: (005,006)

$22.99

$

Usually ships in 4-12 days

0

39

Gravely 042129

Cable, Battery To Solenoid
(Superseded to 08816700)

Note: (003,004,301)

$

$

Not available

39

Gravely 092226

Cable, Positive Battery
(Superseded to 09222600)

Note: (005,006)

$

$

Not available

40

Gravely 033847

Boot Insulator
(Superseded to 03384700)

$

$

Not available

41

Gravely 09201600

Harness, Wiring

Note: (003,004,301)

$

$

Not available

41

Gravely 092222

Harness, Wiring

Note: (005,006)

$

$

Not available
