992004 (PM 200) - Gravely Pro-Master 50" Zero-Turn Mower, 20hp Kohler (SN: 000101 - 000425) FRAME Parts Diagram

Pro-Master 50" Zero-Turn Mower, 20hp Kohler

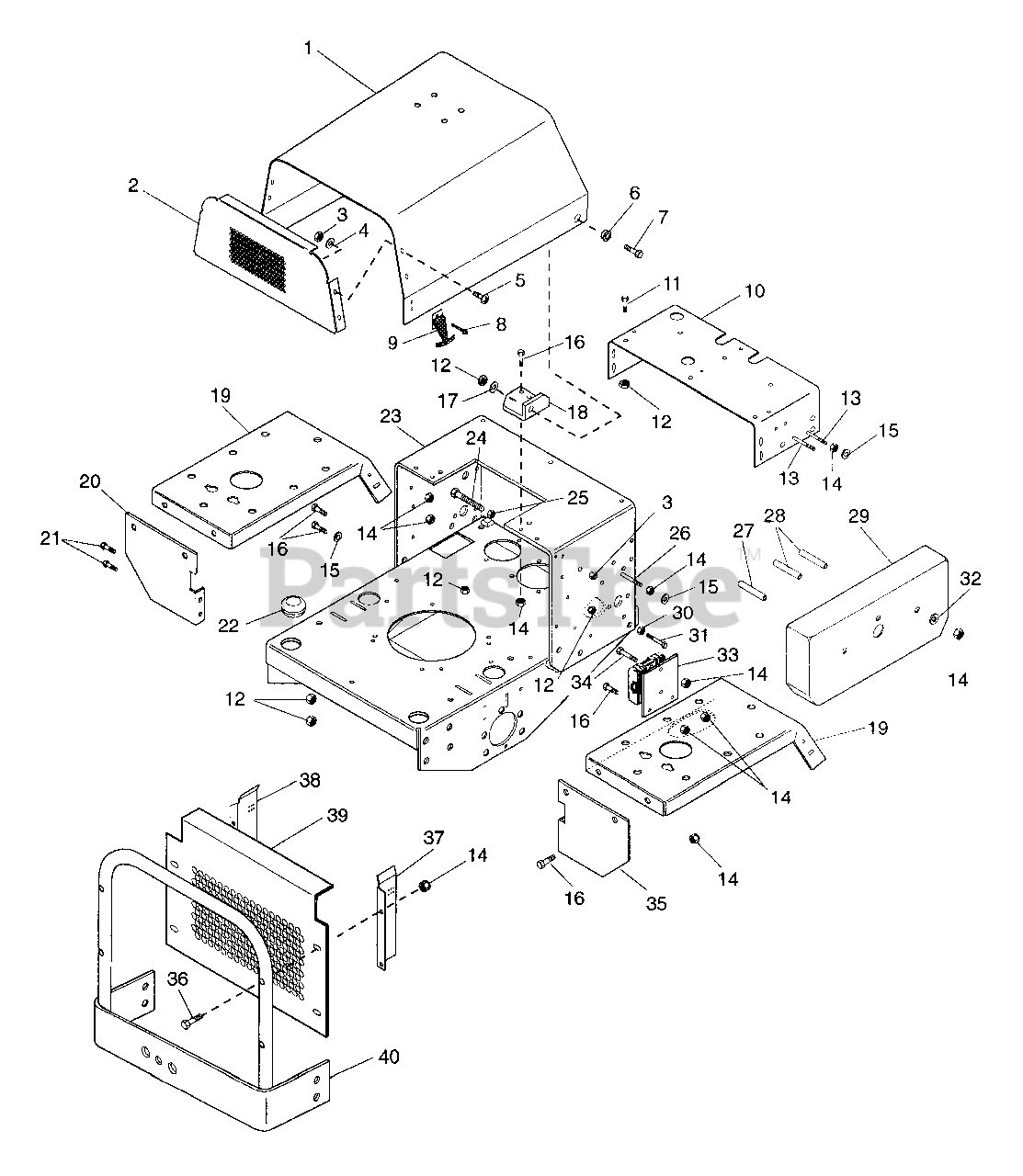

FRAME Parts Diagram

  • Title

1

Gravely 092228

Cover, Engine
(Superseded to 09222853)

Note: (005)

$

$

Not available

2

Gravely 092230

Grille, Hood
(Superseded to 09223051)

Note: (005)

$

$

Not available

3

Gravely 419454

Nut-Locking-Nylon .250-20 Grade 2
(Superseded to 06500832)

Note: (003,004,301)

$4.99

$

In Stock, only 2 left!

0

3

Gravely 419454

Nut-Locking-Nylon .250-20 Grade 2
(Superseded to 06500832)

Note: (005,006)

$4.99

$

In Stock, only 2 left!

0

4

Gravely 064127

Washer-Flat-Steel .281 x .620 x .065
(Superseded to 06401001)

Note: (005,006)

$0.99

$

In Stock, Qty 16

0

5

Gravely 061135

Screw-Machine .25-20
(Superseded to 06113500)

Note: (005,006)

$1.99

$

In Stock, only 3 left!

0

6

Gravely 055158

Bushing-Flange .406 x .88 x .270 x .140
(Superseded to 05515800)

Note: (005,006)

$9.49

$

In Stock, Qty 9

0

7

Gravely 059145

Bolt-Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

Note: (005,006)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 032661

Rivet .125 x .245
(Superseded to 06807500)

Note: (005,006)

$

$

Not available

9

Gravely 035294

Latch, Flexible
(Superseded to 08704700)

Note: (005,006)

$25.99

$

Usually ships in 4-12 days

0

10

Gravely 092094

Panel, Silkscreen
(Superseded to 59200500)

$

$

Not available

11

Gravely 059145

Bolt-Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 456004

Nut-Locking-Nylon .375-16 Grade 2
(Superseded to 06500831)

Note: (003,004,301)

$2.49

$

In Stock, Qty 19

0

12

Gravely 456004

Nut-Locking-Nylon .375-16 Grade 2
(Superseded to 06500831)

Note: (005,006)

$2.49

$

In Stock, Qty 19

0

13

059282

Bolt-Hex .31-18 x 4.00 Grade 5

$

$

Not available

14

Gravely 065062

Nut-Locking-Nylon .312-18 Grade 2
(Superseded to 06500820)

Note: (003,004,301)

$0.99

$

Usually ships in 4-12 days

0

14

Gravely 065062

Nut-Locking-Nylon .312-18 Grade 2
(Superseded to 06500820)

Note: (005,006)

$0.99

$

Usually ships in 4-12 days

0

15

Gravely 064123

Washer-Flat-Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 9

0

16

Gravely 059135

Bolt-Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

Note: (003,004,301)

$1.49

$

In Stock, Qty 12

0

16

Gravely 059135

Bolt-Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

Note: (005,006)

$1.49

$

In Stock, Qty 12

0

17

Gravely 064043

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

Note: (005,006)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 092234

Bracket, Hood Mounting R.H.
(Superseded to 09223453)

Note: (005,006)

$

$

Not available

18

Gravely 092235

Bracket, Hood Mounting L.H.
(Superseded to 09223553)

Note: (005,006)

$

$

Not available

19

Gravely 092023

Fender PM2OO
(Superseded to 09202353)

$

$

Not available

20

Gravely 092025

Support, Fender L.H.
(Superseded to 09202553)

$

$

Not available

21

Gravely 180124

Bolt-Hex .38-16 x 1.25 Grade 5
(Superseded to 05901724)

$1.49

$

In Stock, Qty 7

0

22

Gravely 075366

Grommet
(Superseded to 07536600)

$

$

Not available

23

Gravely 092002

Weldment, Frame PM2OO
(Superseded to 09200253)

$387.99

$

Usually ships in 4-12 days

0

24

Gravely 059343

Bolt-Hex .25-20 x 3.00
(Superseded to 05966300)

$2.49

$

Usually ships in 4-12 days

0

25

Gravely 065032

Nut .250-20
(Superseded to 06500916)

$0.99

$

In Stock, Qty 7

0

26

059101

Bolt-Hex .31-18 x 3.75 Grade 2

$

$

Not available

27

Gravely 091084

Spacer, Split-Rolled
(Superseded to 09108400)

$3.49

$

Usually ships in 4-12 days

0

28

Gravely 091083

Spacer, Split-Rolled
(Superseded to 09108300)

$3.49

$

Usually ships in 4-12 days

0

29

Gravely 091082

Guard, Linkage
(Superseded to 09108200)

$

$

Not available

30

Gravely 120377

Nut-Hex .375-16 Grade 2
(Superseded to 06500917)

$0.99

$

In Stock, only 2 left!

0

31

Gravely 180138

Bolt-Hex .38-16 x 3.00
(Superseded to 05901814)

$2.49

$

In Stock, only 1 left!

0

32

Gravely 446354

Washer-Flat-Steel .313 x .875 x .065
(Superseded to 06430700)

$2.99

$

Usually ships in 4-12 days

0

33

Gravely 092241

Plate, Regulator Rectifier Mounting
(Superseded to 09224151)

Note: (005,006)

$

$

Not available

34

Gravely 059134

Bolt-Hex .31-18 x 1.25 Grade 5
(Superseded to 05901803)

Note: (005,006)

$2.49

$

In Stock, only 2 left!

0

35

Gravely 092024

Support, Fender R.H.
(Superseded to 09202453)

$

$

Not available

36

Gravely 059140

Bolt-Hex .31-18 x 1,50 Grade 5
(Superseded to 05901710)

Note: (005,006)

$1.49

$

Usually ships in 4-12 days

0

37

Gravely 092239

Bracket, Hood Latch R.H.
(Superseded to 09553900)

Note: (005,006)

$

$

Not available

38

Gravely 092240

Bracket, Hood Latch L.H.
(Superseded to 09224051)

Note: (005,006)

$

$

Not available

39

Gravely 092236

Bracket, Hood Support
(Superseded to 09223651)

Note: (005,006)

$

$

Not available

40

Gravely 092037

Weldment, Rear Guard
(Superseded to 09203751)

$

$

Not available
