992004 (PM 200) - Gravely Pro-Master 50" Zero-Turn Mower, 20hp Kohler (SN: 000101 - 000425) FRONT FRAME Parts Diagram

Pro-Master 50" Zero-Turn Mower, 20hp Kohler

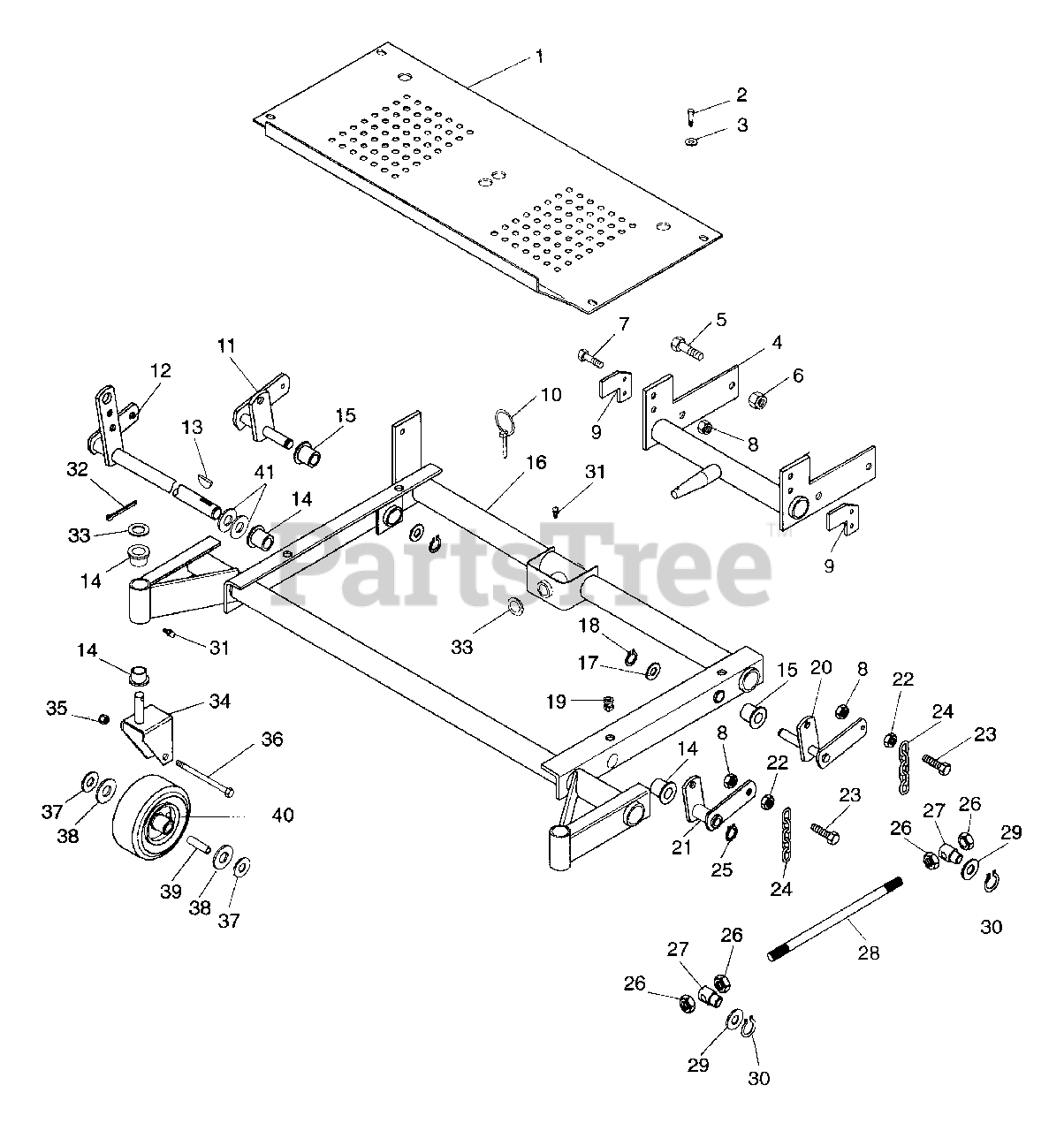

FRONT FRAME Parts Diagram

  • Title

1

Gravely 092036

FOOTBOARD PM200
(Superseded to 09203653)

$

$

Not available

2

Gravely 160541

SCR-MCH .25-20 PAN HD
(Superseded to 06113500)

$2.99

$

Usually ships in 4-12 days

0

3

Gravely 120392

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 092004

WLDM'T MWR FRAME MTG.
(Superseded to 09200453)

$

$

Not available

5

Gravely 271547

BLT-HEX .62-11X1.50 GR5 YWZC
(Superseded to 05968700)

$3.99

$

In Stock, Qty 9

0

6

Gravely 418692

NUT-LK-NYL .625-11 YWZC
(Superseded to 06540700)

$4.99

$

In Stock, Qty 20+

0

7

Gravely 180123

BLT-HEX .38-16X1.125

$

$

Not available

8

Gravely 456004

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

9

Gravely 092208

PLATE, PIVOT STOP
(Superseded to 09220853)

$

$

Not available

10

Gravely 011902

PIN-KLIK .25X1.75
(Superseded to 07015400)

$6.49

$

Usually ships in 4-12 days

0

11

Gravely 092053

WLDM'T, LIFT ARM SHAFT (R.H.)
(Superseded to 09205300)

$20.99

$

Usually ships in 4-12 days

0

12

Gravely 092040

WLDM'T, MWR LIFT SHAFT, FRT
(Superseded to 09204000)

Note: (Front)

$

$

Not available

13

Gravely 124553

KEY-WDRF .25X1.00 HRD #15
(Superseded to 06608900)

$3.99

$

In Stock, Qty 14

0

14

Gravely 018355

BSHG-FLG1.020X1.385X.75X1.75NY
(Superseded to 05520100)

$11.99

$

In Stock, Qty 20+

0

15

Gravely 010174

BSHG-FLG .762X1.0X.580X1.48 NY
(Superseded to 05518400)

$5.49

$

In Stock, Qty 15

0

16

Gravely 092021

FRAME - FRONT PM200
(Superseded to 09226853)

$

$

Not available

17

Gravely 011223

WSHR-HDND-THRST .758X1.23X.031
(Superseded to 06413400)

$3.49

$

In Stock, only 2 left!

0

18

Gravely 026300

RG-RTNG-EXT .689X.078
(Superseded to 05714600)

$2.99

$

In Stock, only 1 left!

0

19

Gravely 065274

CLIP,U-TYPE EATON #C17453-1420
(Superseded to 06527400)

$

$

Not available

20

Gravely 092054

WLDM'T, LIFT ARM SHAFT (L.H.)
(Superseded to 09205400)

Note: (R.H.)

$

$

Not available

21

Gravely 092042

WLDM'T, LIFT ARM (FRT)
(Superseded to 09204200)

Note: (Front)

$

$

Not available

22

Gravely 120377

NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 180126

BLT-HEX .38-16X1.50 GR5 YWZC
(Superseded to 05901928)

$1.99

$

In Stock, Qty 17

0

24

Gravely 092153

CHAIN, LINK
(Superseded to 09215300)

$7.49

$

Usually ships in 4-12 days

0

25

Gravely 050203

RG-RTNG-EXT 1.00X.078
(Superseded to 05707300)

$3.49

$

In Stock, Qty 9

0

26

Gravely 120378

NUT-HEX .50-13 YWZC
(Superseded to 06500814)

$4.99

$

Usually ships in 4-12 days

0

27

Gravely 092127

PIVOT, MWR LIFT
(Superseded to 09212700)

$

$

Not available

28

Gravely 092102

TIE ROD, LIFT LEVER
(Superseded to 09210200)

$

$

Not available

29

Gravely 036889

WSHR-FL-STL .630X1.005X.062 YZ
(Superseded to 06401117)

$0.99

$

In Stock, Qty 20+

0

30

Gravely 057092

RG-RTNG-EXT .625X.050
(Superseded to 05709200)

$2.99

$

Usually ships in 4-12 days

0

31

Gravely 411027

FTG,LUBE, .25-28 SELF THREAD
(Superseded to 07012600)

$

$

Not available

32

Gravely 067021

PIN-CTR .12X1.50 EXTPRSQCT YZ
(Superseded to 06714300)

$2.49

$

Usually ships in 4-12 days

0

33

Gravely 019340

WSHR-HDND-THRUST 1.00X1.55X.03
(Superseded to 06435300)

$5.49

$

In Stock, Qty 8

0

34

Gravely 092056

WELDMENT, CASTER
(Superseded to 09206253)

$157.99

$

Usually ships in 4-12 days

0

35

Gravely 435507

NUT-LK-NYL .50-13 YWZC
(Superseded to 06500830)

$2.99

$

In Stock, Qty 20+

0

36

Gravely 059436

BLT-HEX .50-13X8.00 GR5 YWZC
(Superseded to 05968400)

$8.49

$

In Stock, Qty 20+

0

37

Gravely 415543

WSHR-FL-STL.50X1.25X.083 YWZC
(Superseded to 06441000)

$3.49

$

In Stock, Qty 11

0

38

Gravely 423315

WSHR-FL-STL.812X1.50X.135YWZC
(Superseded to 06401140)

$1.99

$

In Stock, Qty 20+

0

39

Gravely 092061

AXLE,CASTER
(Superseded to 09206100)

$

$

Not available

40

Gravely 071352

T/WHL ASSY 13X5-6 TURF TRAC RS
(Superseded to 07145700)

$

$

Not available

41

Gravely 064285

WSHR-FL-STL 1.063X2.00X.134
(Superseded to 06428500)

$3.49

$

Usually ships in 4-12 days

0

Gravely 071390

TIRE, 13X5-6 TURF TRAC RS
(Superseded to 07139000)

Note: NS

$

$

Not available
