992004 (PM 200) - Gravely Pro-Master 50" Zero-Turn Mower, 20hp Kohler (SN: 000101 - 000425) HYDRAULIC SYSTEM Parts Diagram

Pro-Master 50" Zero-Turn Mower, 20hp Kohler

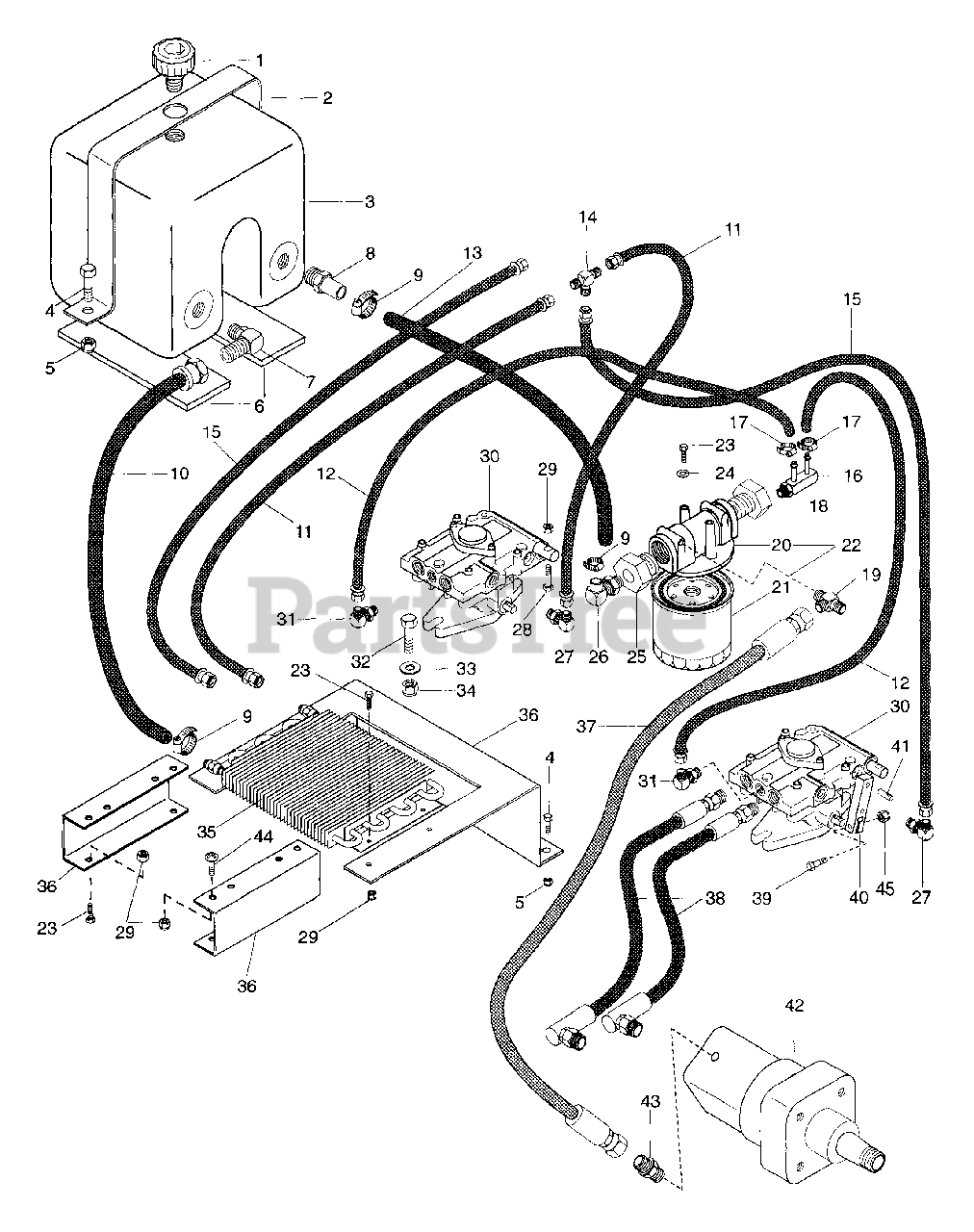

HYDRAULIC SYSTEM Parts Diagram

  • Title

1

Gravely 050507

CAP,FILTER
(Superseded to 08996400)

$36.99

$

In Stock, only 1 left!

0

2

Gravely 050525

STRAP,TANK
(Superseded to 08997100)

$5.99

$

Usually ships in 4-12 days

0

3

Gravely 050272

TANK,HYDRAULIC
(Superseded to 09032900)

$

$

Not available

4

Gravely 180077

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

5

Gravely 419455

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.49

$

In Stock, Qty 5

0

6

Gravely 031884

PAD, GAS TANK
(Superseded to 03301900)

$

$

Not available

7

Gravely 046072

ADPTR-HYD EL 7/8 "O" TO 3/4
(Superseded to 07020000)

$

$

Not available

8

Gravely 045226

FTG-ADPTR 88-14
(Superseded to 07020300)

$6.99

$

Usually ships in 4-12 days

0

9

Gravely 021247

CLAMP,.88 DIA. HOSE
(Superseded to 06923500)

$2.49

$

In Stock, Qty 20+

0

10

Gravely 091061

HOSE,HYD COOLER TO TANK
(Superseded to 09106100)

Note: (003,004,301)

$

$

Not available

Gravely 092238

HOSE, HYD (OIL COOLER TO TANK)
(Superseded to 09223800)

Note: (005,006)

$

$

Not available

11

Gravely 039847

HOSE,HYD VALVE TO TANK
(Superseded to 08811300)

Note: (003,004,301)

$40.99

$

Usually ships in 4-12 days

0

Gravely 039847

HOSE,HYD VALVE TO TANK
(Superseded to 08811300)

Note: (005,006)

$40.99

$

Usually ships in 4-12 days

0

12

Gravely 092213

HOSE, OIL FILTER TO PUMP
(Superseded to 09221300)

$9.49

$

Usually ships in 4-12 days

0

13

Gravely 046379

HOSE .62 ID X .91 OD BLK
(Superseded to 00915100)

$3.99

$

Usually ships in 4-12 days

0

14

Gravely 021799

ADPT-TEE .56-18
(Superseded to 07021500)

$31.99

$

Usually ships in 4-12 days

0

15

Gravely 053103

HOSE,PUMP TO TEE
(Superseded to 08856400)

Note: (003,004)

$46.99

$

Usually ships in 4-12 days

0

Gravely 053103

HOSE,PUMP TO TEE
(Superseded to 08856400)

Note: (005)

$46.99

$

Usually ships in 4-12 days

0

16

Gravely 081178

Fitting-Pipe .563-18

$

$

Not available

17

Gravely 052577

CLAMP-HOSE WRM .44/.78X.53 F06
(Superseded to 06922100)

$5.49

$

Usually ships in 4-12 days

0

18

Gravely 07026500

ADPT, HYD 0510-12-06

$

$

Not available

19

Gravely 070275

ADPT, HYD (PARKER 013T-2-4)
(Superseded to 07027500)

$

$

Not available

20

Gravely 092211

HEAD, OIL FILTER
(Superseded to 09221100)

$

$

Not available

21

Gravely 041081

CTN,FOL 39X9X14
(Superseded to 08936700)

$

$

Not available

22

Gravely 092049

ASM,FILTER 12AT-10C-N-X-MM-RI
(Superseded to 09204900)

$

$

Not available

23

Gravely 180018

BLT-HEX .25-20X.63
(Superseded to 05932000)

$2.49

$

Usually ships in 4-12 days

0

24

Gravely 120380

WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

$0.99

$

In Stock, Qty 9

0

25

Gravely 070206

ADPT-HYD 0510-12-10
(Superseded to 07020600)

$

$

Not available

26

Gravely 050192

FITTING
(Superseded to 03450600)

$32.99

$

Usually ships in 4-12 days

0

27

Gravely 018828

FTG, 90 9/16 MOR X 9/16 MJIC
(Superseded to 00313270)

$9.99

$

Usually ships in 4-12 days

0

28

Gravely 180044

BLT-HEX .25-20X2.00 GR5 YWZC
(Superseded to 05901740)

$2.99

$

In Stock, only 3 left!

0

29

Gravely 419454

NUT-LK-NYL .250-20 YWZC
(Superseded to 06500832)

$5.49

$

In Stock, Qty 12

0

30

Gravely 053330

PUMP, BDP-10L
(Superseded to 09279900)

$1263.99

$

Usually ships in 4-12 days

0

31

Gravely 040723

ADPT 2503-4-6 OR 6801-6-4
(Superseded to 08936400)

$

$

Not available

32

Gravely 180123

BLT-HEX .38-16X1.125

$

$

Not available

33

Gravely 120394

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

34

Gravely 413534

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

35

Gravely 053101

COOLER,OIL
(Superseded to 08856200)

$

$

Not available

36

Gravely 092055

BRKT, OIL COOLER
(Superseded to 09205551)

Note: (003,004,301)

$

$

Not available

Gravely 092221

BRKT, OIL COOLER (18HP KAW)
(Superseded to 09222151)

Note: (005,006)

$

$

Not available

37

Gravely 092219

HOSE ASM, MOTOR TO OIL FILTER
(Superseded to 09221900)

$

$

Not available

38

Gravely 092205

ASM, HOSE WHL MTR TO PUMP
(Superseded to 09220500)

$

$

Not available

39

Gravely 059056

BLT-HEX .25-20X1.25 GR5 YWZC
(Superseded to 05901738)

$2.49

$

In Stock, only 2 left!

0

40

Gravely 088807

ARM, PUMP ACTUATING
(Superseded to 08880700)

$

$

Not available

41

Gravely 051889

PIN-DWL .312X1.25
(Superseded to 05808000)

$6.49

$

Usually ships in 4-12 days

0

42

Gravely 092005

MOTOR, WHEEL HB 14 07 53 7 P
(Superseded to 09200500)

$879.99

$

Usually ships in 4-12 days

0

43

Gravely 021286

ADPT 0503-4-4
(Superseded to 08801500)

$6.49

$

Usually ships in 4-12 days

0

44

Gravely 061135

SCR-MCH .25-20 PAN HD
(Superseded to 06113500)

$2.99

$

Usually ships in 4-12 days

0

45

Gravely 038345

NUT-SPNLK-FLG .25-20 YWZC
(Superseded to 06500824)

$1.49

$

In Stock, only 3 left!

0
