992004 (PM 200) - Gravely Pro-Master 50" Zero-Turn Mower, 20hp Kohler (SN: 000101 - 000425) MOWER LIFT SYSTEM Parts Diagram

Pro-Master 50" Zero-Turn Mower, 20hp Kohler

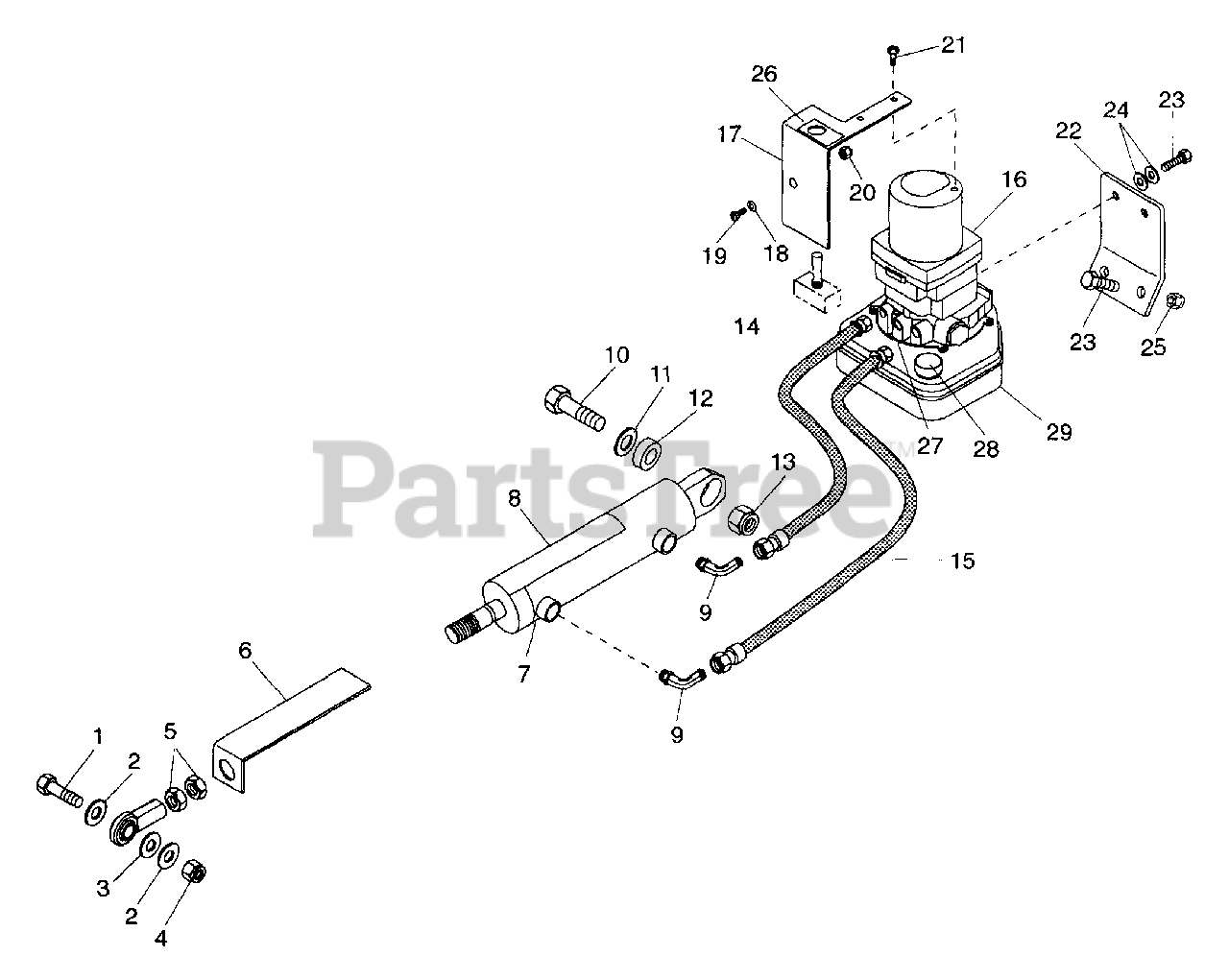

MOWER LIFT SYSTEM Parts Diagram

  • Title

1

Gravely 428697

Bolt-Hex .50-13 x 1.25 Grade 2
(Superseded to 05969300)

$4.99

$

In Stock, only 2 left!

0

2

Gravely 446239

Washer-Flat-Steel .625 x 1.375 x .109
(Superseded to 06430600)

$

$

Not available

3

Gravely 092216

Rod End, 5/8" Female
(Superseded to 09221600)

$25.99

$

Usually ships in 4-12 days

0

4

Gravely 418692

Nut-Locking-Nylon .625-11 Grade 2
(Superseded to 06540700)

$3.99

$

In Stock, Qty 16

0

5

065003

Nut-Jam .625-18

$

$

Not available

6

Gravely 092217

Strap-Height of Cut Indicator
(Superseded to 09255900)

$22.99

$

Usually ships in 4-12 days

0

7

Gravely 092069

Cylinder, Hydraulic Lift
(Superseded to 09206900)

$

$

Not available

8

Gravely 077080

Decal-Height of Cut
(Superseded to 07708000)

$

$

Not available

9

Gravely 018826

Adapter 2503-4-4
(Superseded to 08800700)

$22.99

$

Usually ships in 4-12 days

0

10

Gravely 180183

Bolt-Hex .50-13 x 2.25 Grade 5
(Superseded to 05901835)

$3.49

$

In Stock, Qty 9

0

11

Gravely 415543

Washer-Flat-Steel .531 x 1.250 x .100
(Superseded to 06441000)

$2.99

$

In Stock, Qty 16

0

12

Gravely 092152

Bushing, .516 x 1.000 x 1.050
(Superseded to 09215200)

$34.99

$

Usually ships in 4-12 days

0

13

Gravely 435507

Nut-Locking-Nylon .50-13 Grade 2
(Superseded to 06500830)

$2.49

$

In Stock, Qty 20+

0

14

Gravely 092215

Assembly, Hose Pump to Cylinder
(Superseded to 09221500)

$

$

Not available

15

Gravely 092214

Assembly, Hose Pump to Cylinder
(Superseded to 09221400)

$40.99

$

Usually ships in 4-12 days

0

16

Gravely 087250

Pump, Electric Hydraulic
(Superseded to 08725000)

$1006.99

$

Usually ships in 4-12 days

0

17

Gravely 091047

Switch Plate, Lift Pump
(Superseded to 09114000)

$5.99

$

Usually ships in 4-12 days

0

18

Gravely 120392

Washer-Flat-Steel .281 x .625 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 15

0

19

Gravely 160541

Screw-Machine .25-20
(Superseded to 06113500)

$1.99

$

In Stock, only 3 left!

0

20

Gravely 419454

Nut-Locking-Nylon .250-20 Grade 2
(Superseded to 06500832)

$4.99

$

In Stock, only 2 left!

0

21

Gravely 074085

Screw-Tapping 12-14 x .50
(Superseded to 07408500)

$

$

Not available

22

Gravely 091040

Lift Pump Mounting Bracket
(Superseded to 09104000)

$

$

Not available

23

Gravely 180120

Bolt-Hex .38-16 x .75 Grade 5
(Superseded to 05901702)

$1.49

$

In Stock, only 1 left!

0

24

Gravely 120394

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

25

Gravely 456004

Nut-Locking-Nylon .375-16 Grade 2
(Superseded to 06500831)

$2.49

$

In Stock, Qty 19

0

26

Gravely 077108

Decal, Cutting Heat Treated Adjustment
(Superseded to 07710800)

$

$

Not available

27

Gravely 200014

Reservoir Seal, O-Ring
(Superseded to 20001400)

$15.99

$

Usually ships in 4-12 days

0

28

Gravely 200018

Reservoir Cap
(Superseded to 20001800)

$21.99

$

Usually ships in 4-12 days

0

29

Gravely 214191

Reservoir Tank
(Superseded to 21419100)

$

$

Not available
