992004 (PM 200) - Gravely Pro-Master 50" Zero-Turn Mower, 20hp Kohler (SN: 000101 - 000425) SEAT Parts Diagram

Pro-Master 50" Zero-Turn Mower, 20hp Kohler

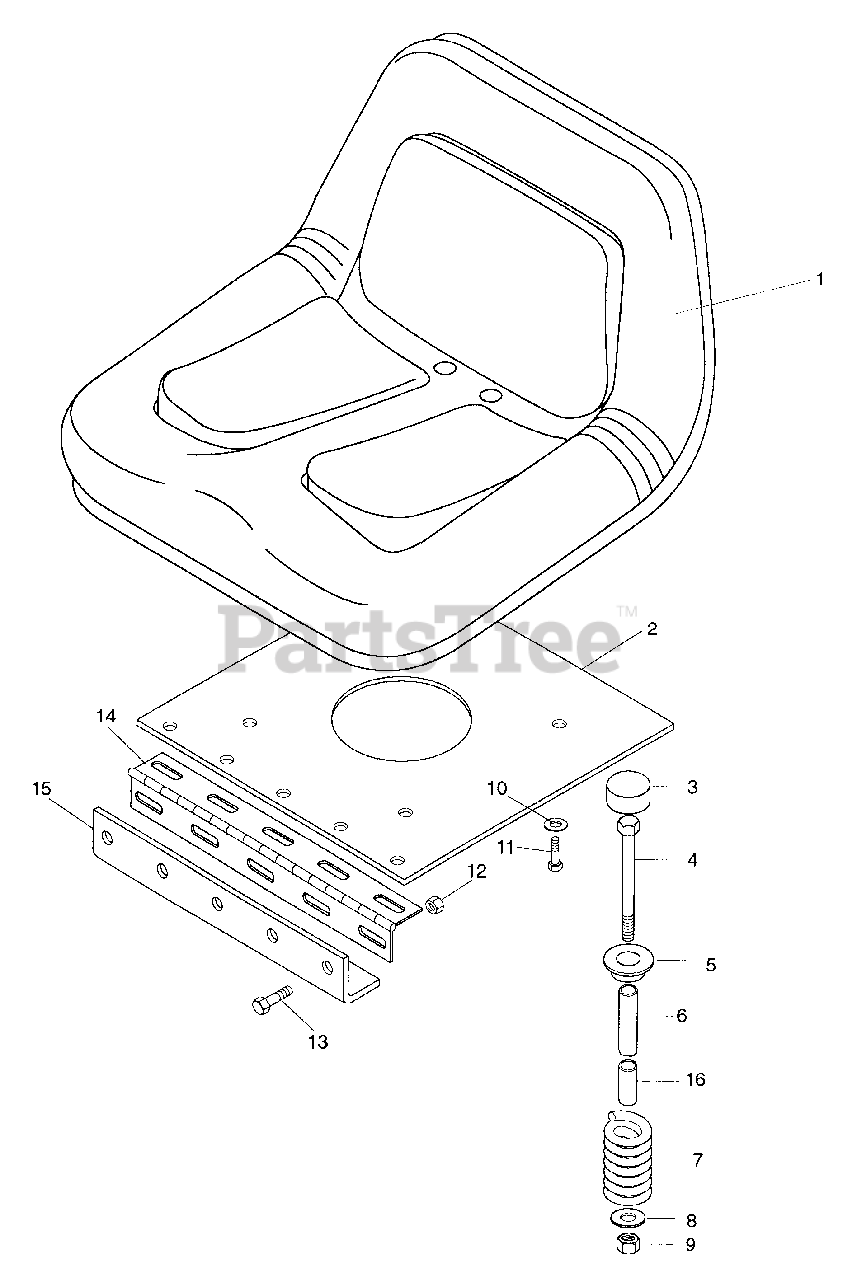

SEAT Parts Diagram

  • Title

1

Gravely 048918

SEAT KIT W/ SWITCH
(Superseded to 59100200)

$

$

Not available

2

Gravely 091068

PLT,SEAT MTG
(Superseded to 09106800)

$

$

Not available

3

Gravely 011768

MOLDED CAP 1.5OD,1.0ID,.44THK
(Superseded to 07521100)

$6.49

$

Usually ships in 4-12 days

0

4

Gravely 180046

BLT-HEX .25-20X2.25 GR5 YWZC
(Superseded to 05901636)

$2.99

$

Usually ships in 4-12 days

0

5

Gravely 005741

CAP, VALVE SPRING

$

$

Not available

6

Gravely 091079

BUSHING, SPLIT ROLLED
(Superseded to 09107900)

$

$

Not available

7

Gravely 053368

SG-COMP .148X1.095X1.75
(Superseded to 08328400)

$

$

Not available

8

Gravely 064123

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

9

Gravely 419454

NUT-LK-NYL .250-20 YWZC
(Superseded to 06500832)

$5.49

$

In Stock, Qty 12

0

10

Gravely 120214

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 180075

BLT-HEX .31-18X.63 GR5 YWZC
(Superseded to 05901832)

$1.99

$

Usually ships in 4-12 days

0

12

Gravely 419455

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.49

$

In Stock, Qty 5

0

13

Gravely 180075

BLT-HEX .31-18X.63 GR5 YWZC
(Superseded to 05901832)

$1.99

$

Usually ships in 4-12 days

0

14

Gravely 039090

HINGE-2" X 12.88 YWZC
(Superseded to 03102800)

$

$

Not available

15

Gravely 091069

BRKT,SEAT SUPPORT
(Superseded to 09106900)

$

$

Not available

Gravely 044144

KIT,ARM REST G SERIES

$

$

Not available

16

Gravely 092229

BUSHING, SPLIT ROLLED
(Superseded to 09222900)

Note: (005,006)

$

$

Not available
